STAND

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

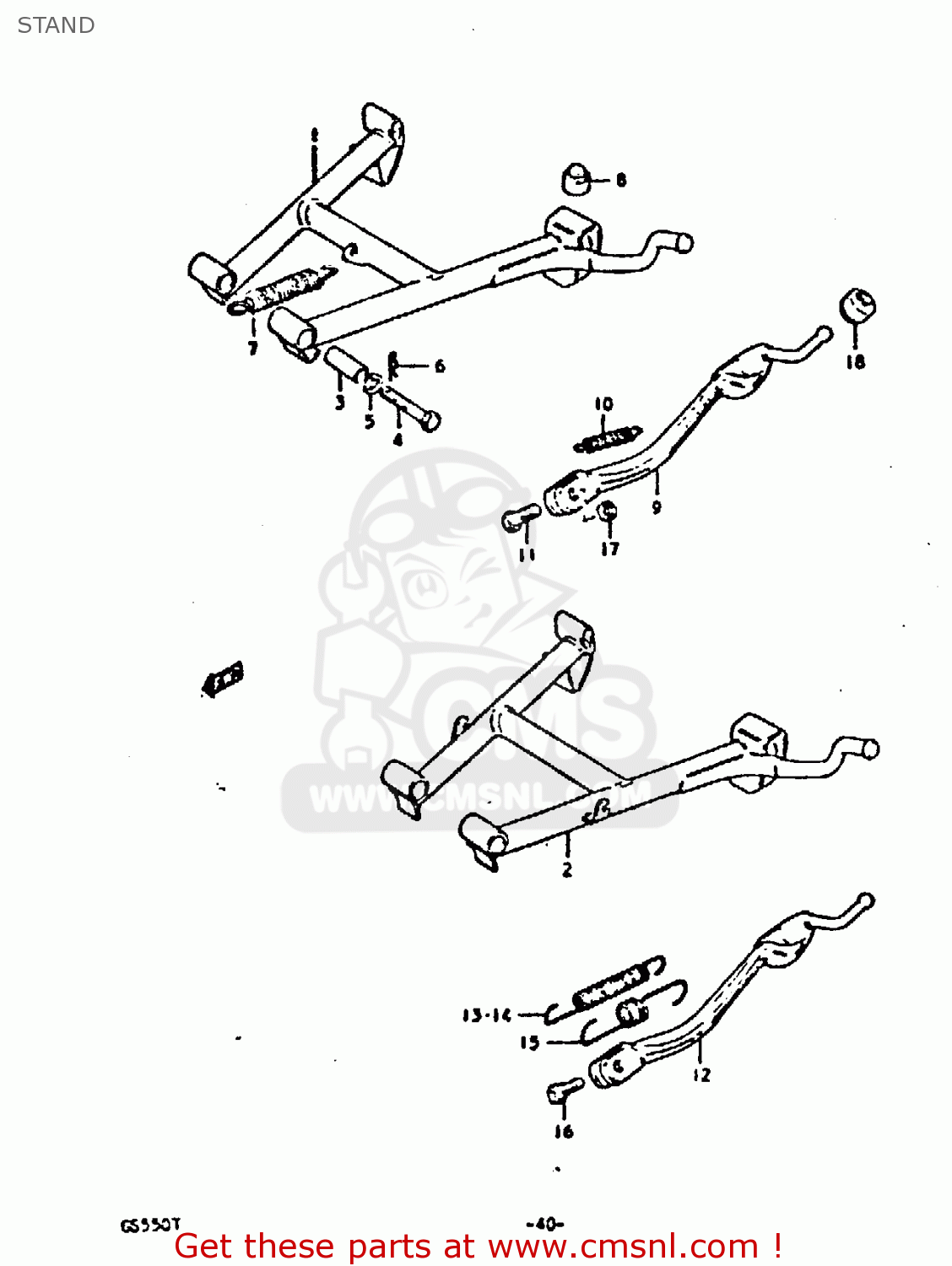

Stand diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

STAND GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

STAND GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

4210047001
ref: 1

STAND,CENTER

€ 76.50

2

NOTUSED
ref: 2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

0918010040
ref: 3

SPACER(10X16X38.8)

€ 3.00

4

0910110018
ref: 4

BOLT

€ 5.50

5

0832121108
ref: 5

LOCK WASHER

€ 2.00

6

0938510001
ref: 6

CLIP

€ 1.50

7

0944318003
ref: 7

SPRING

€ 5.50

8

0932110001
ref: 8

CUSHION

€ 2.50

9

4231047001
ref: 9

STAND,SIDE

€ 45.50

10

0944317005
ref: 10

SPRING

€ 11.50

11

0910010067
ref: 11

BOLT(10X30)

€ 3.50

12

NOTUSED
ref: 12

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

13

NOTUSED
ref: 13

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

14

NOTUSED
ref: 14

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

NOTUSED
ref: 15

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

16

NOTUSED
ref: 16

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17

0831022108
ref: 17

NUT

€ 2.50

18

0932007001
ref: 18

CUSHION

€ 4.00
