REAR FENDER EXTENSION

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

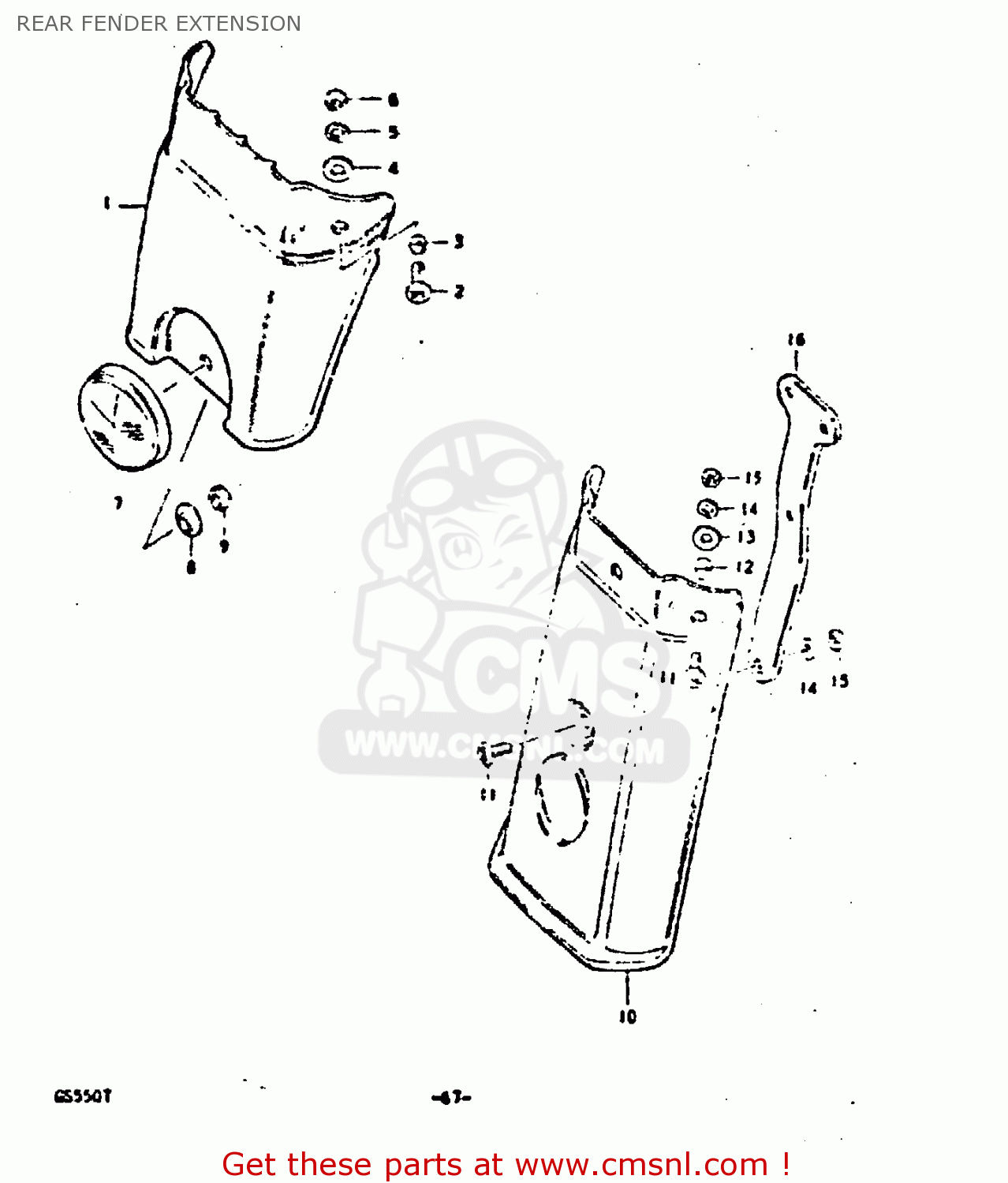

Rear fender extension diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

REAR FENDER EXTENSION GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)
REAR FENDER EXTENSION GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)
REAR FENDER EXTENSION GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)
prices are in EUR
ref
part #
description
quantity
1
6331145000
ref: 1
E22, E26
EXTENSION, REAR FENDER
6331145000
€ 7.50
2
0912506009
ref: 2
E22, E26
SCREW (6X15)
0912506009
€ 3.00
3
0918006001
ref: 3
E22, E26
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
4
0916006028
ref: 4
E22, E26
WASHER(6.5X18X1)
0916006028
€ 1.50
5
0832121068
ref: 5
E22, E26
LOCK WASHER
0832121068
€ 2.50
6
0831011068
ref: 6
E22, E26
NUT
0831011068
€ 2.50
7
3597045611
ref: 7
E22, E26
REFLECTOR,REFLEX
€ 47.50
8
0918006048
ref: 8
E22, E26
SPACER
0918006048
€ 2.00
9
0831011058
ref: 9
E22, E26
NUT
0831011058
€ 2.50
10
6331145610
ref: 10
E15, E18
EXTENSION, REAR FENDER
€ 0.00
11
0912506009
ref: 11
E15, E18
SCREW (6X15)
0912506009
€ 3.00
12
0918006001
ref: 12
E15, E18
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
13
0916006028
ref: 13
E15, E18
WASHER(6.5X18X1)
0916006028
€ 1.50
14
0832121068
ref: 14
E15, E18
LOCK WASHER
0832121068
€ 2.50
15
0831011068
ref: 15
E15, E18
NUT
0831011068
€ 2.50
16
6331245000
ref: 16
E15, E18
BRACE, REAR FENDER EXTENSION
6331245000
€ 3.50
