CAM SHAFT - VALVE

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

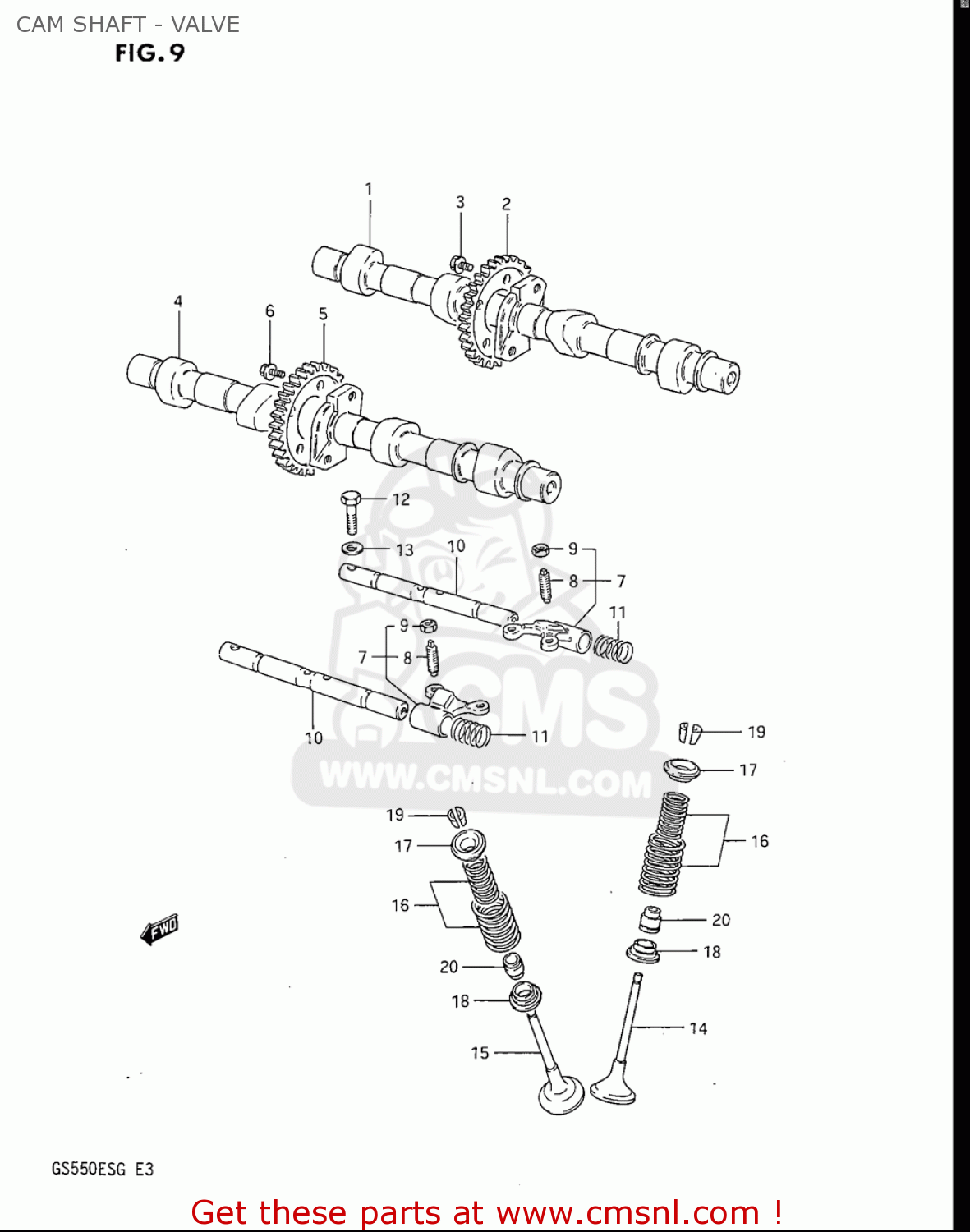

Cam shaft - valve diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

CAM SHAFT - VALVE GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
CAM SHAFT - VALVE GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
CAM SHAFT - VALVE GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
prices are in EUR
ref
part #
description
quantity
2
1274143401
ref: 2
SPROCKET,INTAKE CAMSHAFT
1274143401
€ 23.00
3
0910307001
ref: 3
BOLT(7X11)
0910307001
€ 2.00
5
1274143401
ref: 5
SPROCKET,INTAKE CAMSHAFT
1274143401
€ 23.00
6
0910307001
ref: 6
BOLT(7X11)
0910307001
€ 2.00
7
1284011401
ref: 7
ARM,VALVE ROCKER
1284011401
€ 62.00
8
1284249201
ref: 8
SCREW,TAPPET ADJUSTING
1284249201
€ 5.50
9
1284327A00
ref: 9
NUT,TAPPET ADJUSTING
1284327A00
€ 3.00
12
015000630A
ref: 12
BOLT
015000630A
€ 2.50
13
083220106A
ref: 13
WASHER
083220106A
€ 2.00
14
1291143400
ref: 14
VALVE,INTAKE
1291143400
€ 12.50
15
1291243400
ref: 15
VALVE,EXHAUST
1291243400
€ 37.50
17
1293127A01
ref: 17
RETAINER,VALVE SPRING
1293127A01
€ 5.50
18
1293333201
ref: 18
SEAT,VALVE SPRING
1293333201
€ 4.50
19
1293227A00
ref: 19
COTTER VALVE
1293227A00
€ 2.50
20
0928905008
ref: 20
SEAL,OIL(5X10.5X8.4)
0928905008
€ 6.00
