CYLINDER HEAD COVER

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

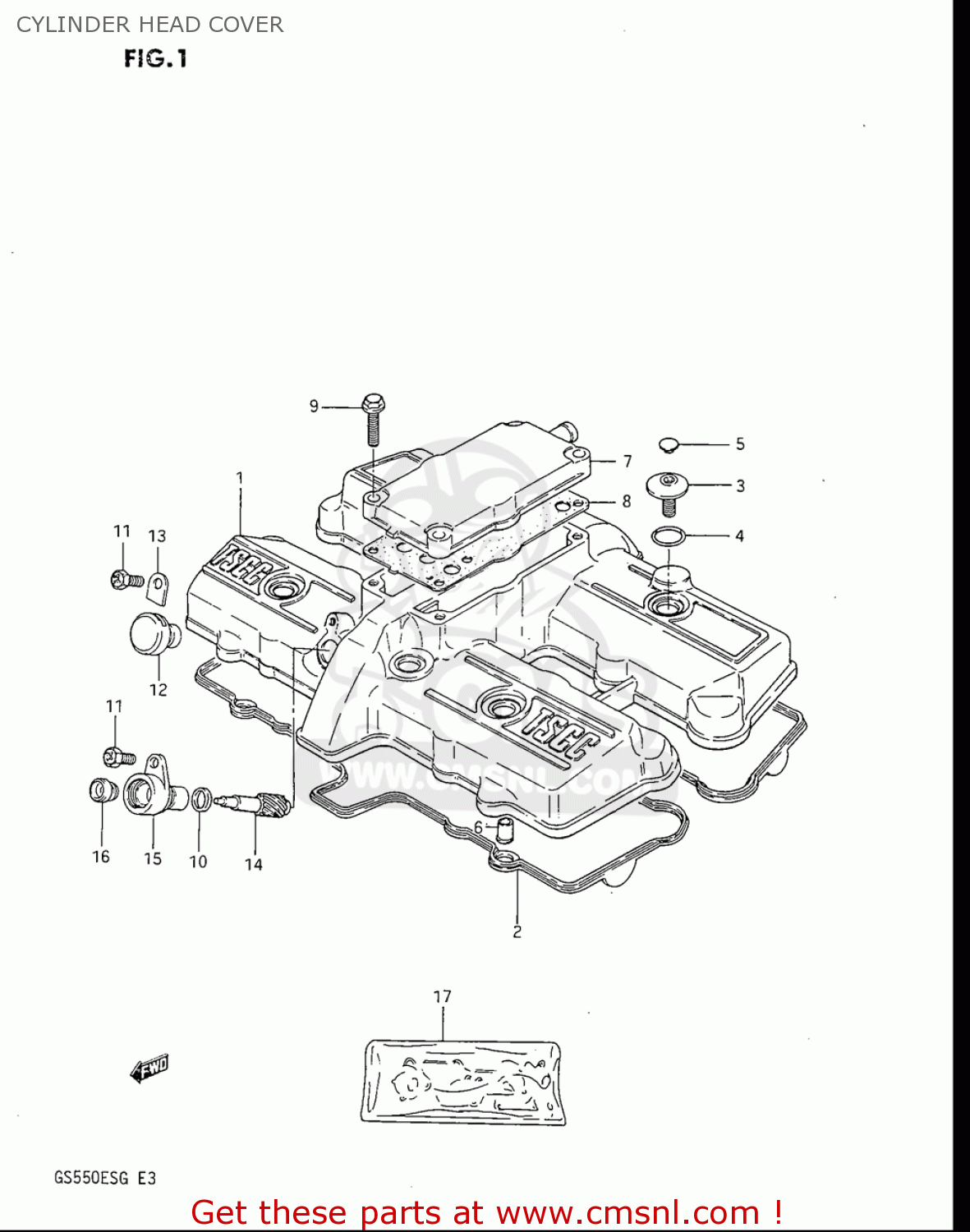

Cylinder head cover diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

CYLINDER HEAD COVER GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

CYLINDER HEAD COVER GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

1117343402
ref: 2

GASKET,CYL HEAD COVER (NAS)

€ 32.50

3

0910607001
ref: 3

BOLT(7X5.5)

€ 6.00

4

0928015006
ref: 4

O RING(D:1.9,ID:14.5)

€ 3.00

5

0925006008
ref: 5

CAP(OD:10)

€ 3.00

6

0422108129
ref: 6

PIN

€ 2.00

8

1117743403H17
ref: 8

GASKET,BREATHER COVER (NAS)

€ 11.50

9

015500625A
ref: 9

BOLT

€ 2.50

10

2645145000A
ref: 10

SEAL,TACHOMETER DRIVEN

€ 4.50

11

0912805101
ref: 11

SCREW(5X12)

€ 1.50

12

2644245000
ref: 12

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

13

2644933000
ref: 13

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

14

2643149201
ref: 14

GEAR,TACHOMETER DRIVEN

€ 40.00

15

2644149000
ref: 15

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

16

0928905002
ref: 16

SEAL,OIL(5X12X8)

€ 11.00

17

1140043837
ref: 17

GASKET SET

€ 308.50
