REAR WHEEL

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

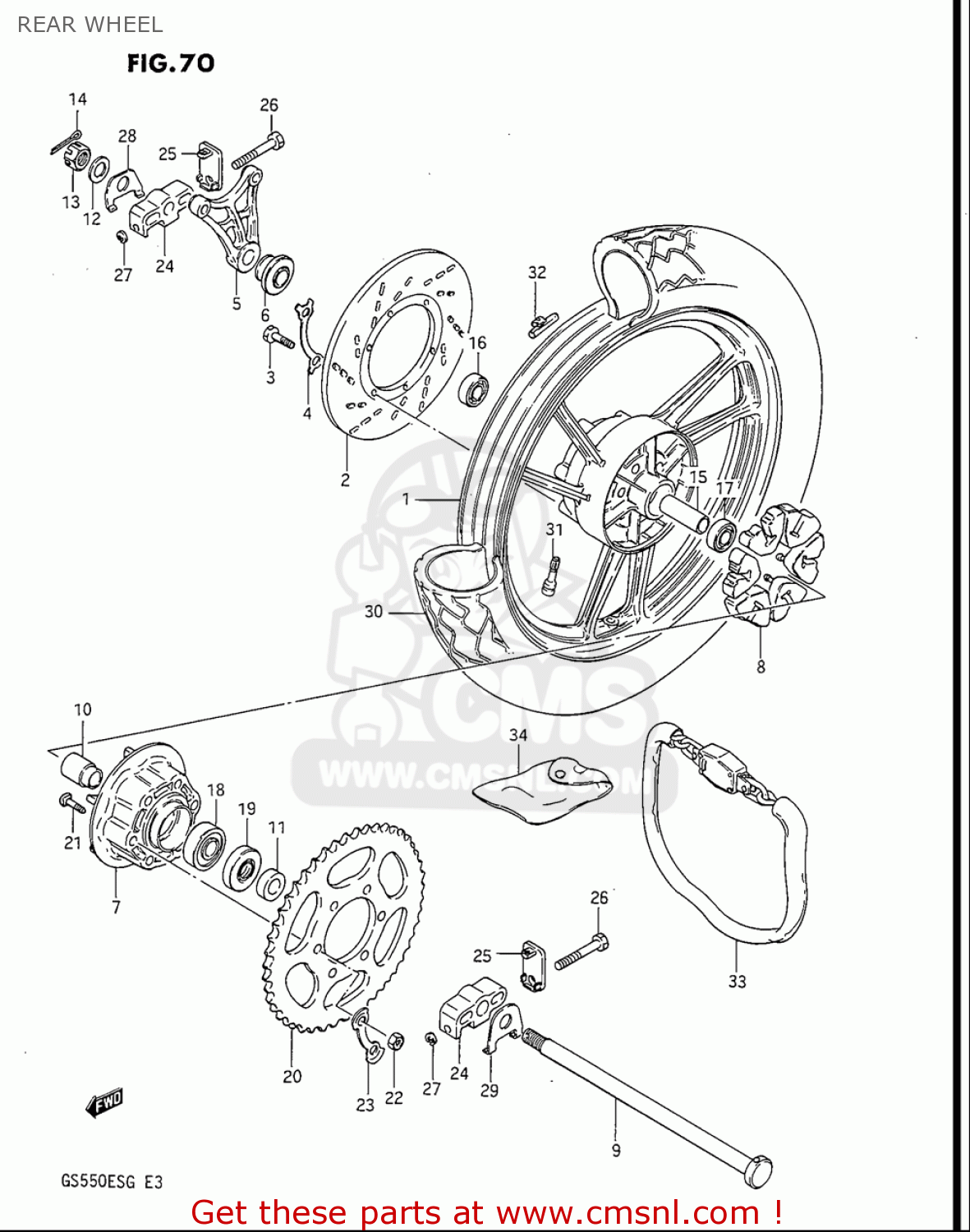

Rear wheel diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

REAR WHEEL GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
REAR WHEEL GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
REAR WHEEL GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
prices are in EUR
ref
part #
description
quantity
2
6921133250
ref: 2
DISC,REAR BRAKE
6921133250
€ 204.50
3
0910008140
ref: 3
BOLT(8X25)
0910008140
€ 2.00
5
6972143400
ref: 5
BRACKET,RR,CALIPER
€ 51.50
6
6474033201
ref: 6
SPACER,REAR AXLE,RIGHT
€ 13.50
7
6461133200
ref: 7
DRUM,REAR SPROCKET MOUNT
€ 78.50
8
6465111300
ref: 8
ABSORBER,RR HUB SHOCK
6465111300
€ 12.50
10
6473334000
ref: 10
SPACER,REAR HUB BEARING
6473334000
€ 24.00
11
0918017075
ref: 11
SPACER (17X30.5X13.5)
0918017075
€ 5.50
12
0832201167
ref: 12
WASHER
0832201167
€ 2.00
13
0914116001
ref: 13
NUT
0914116001
€ 6.50
14
041114030A
ref: 14
PIN
041114030A
€ 1.50
15
0918017072
ref: 15
SPACER(17.5X25X81)
€ 13.50
16
0814363037
ref: 16
BEARING
0814363037
€ 23.00
17
0814362037
ref: 17
BEARING
0814362037
€ 18.50
18
0811362057
ref: 18
BEARING
0811362057
€ 18.00
19
0928530001
ref: 19
SEAL,OIL(30.5X52X8)
0928530001
€ 20.00
20
6451147610
ref: 20
SPROCKET,REAR
€ 0.00
21
0910510001
ref: 21
BOLT(10X35.5)
0910510001
€ 3.50
22
0914010026
ref: 22
NUT
0914010026
€ 2.00
23
0916910007
ref: 23
WASHER
0916910007
€ 7.50
24
6141115500
ref: 24
BODY,CHAIN ADJUSTER
6141115500
€ 23.50
25
6142115501
ref: 25
PLATE,CHAIN ADJUSTER GUIDE
6142115501
€ 107.00
26
6143116700
ref: 26
BOLT,CHAIN ADJUSTER
6143116700
€ 4.50
27
083321104A
ref: 27
E RING
€ 2.00
29
6471215501
ref: 29
WASHER,CHAIN ADJUSTER
6471215501
€ 3.00
31
4313078030
ref: 31
VALVE,TIRE TR413 BS
4313078030
€ 14.50
32-1
5541100A00
ref: 32-1
BALANCER,WHEEL (10G)
€ 6.50
32-2
5541217G00
ref: 32-2
BALANCER,WHEEL(20G)
5541217G00
€ 7.00
32-4
5541100A00
ref: 32-4
BALANCER,WHEEL (10G)
€ 6.50
32-5
5541217G00
ref: 32-5
BALANCER,WHEEL(20G)
5541217G00
€ 7.00
33
9410027821
ref: 33
LOCK SET,CHAIN
€ 53.50
