FUEL TANK (GS550EF/EG)

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

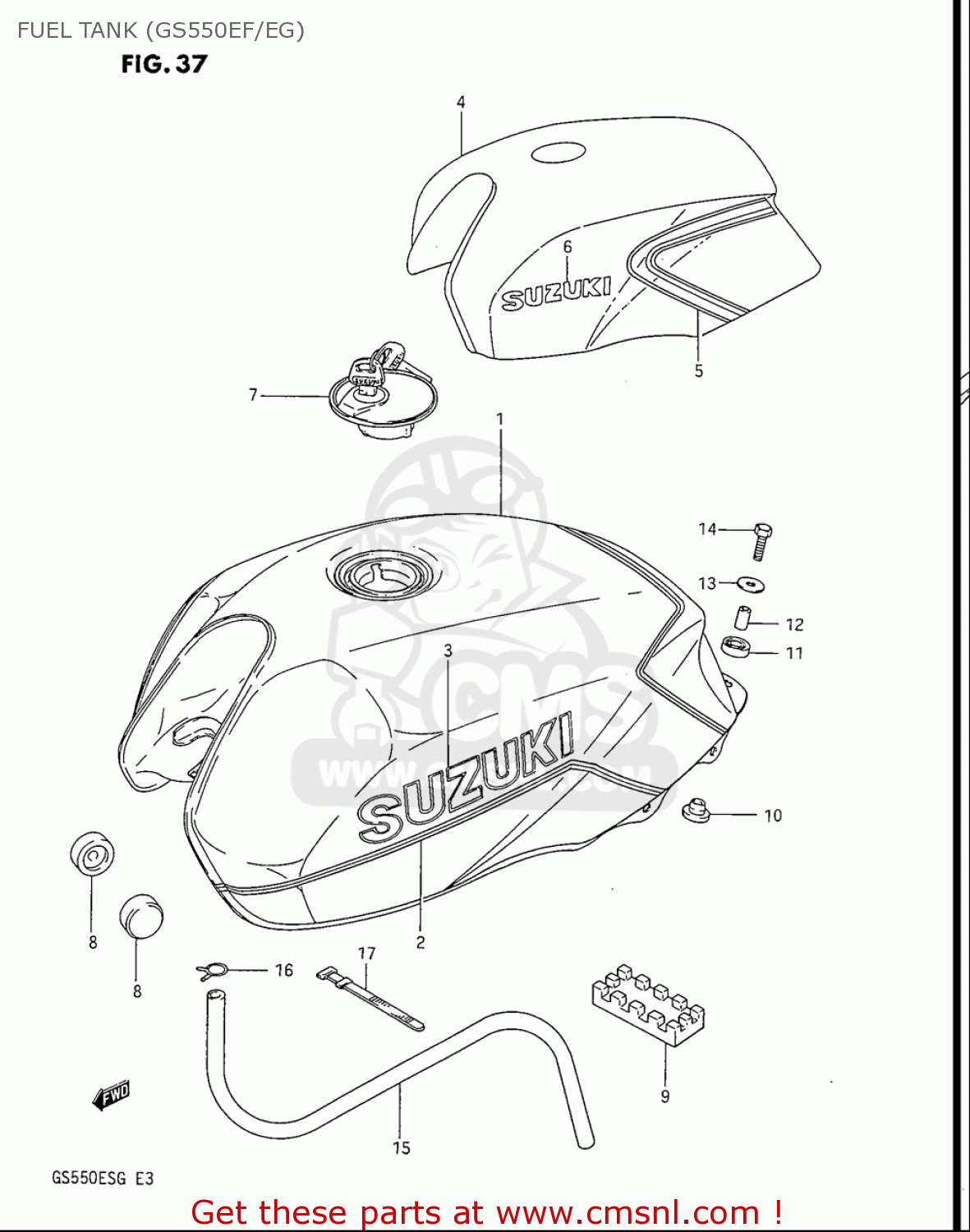

Fuel tank (gs550ef/eg) diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

FUEL TANK (GS550EF/EG) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

FUEL TANK (GS550EF/EG) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

441104343113L
ref: 1-1

TANK ASSEMBLY,FUEL

€ 582.00

1-3

441104343113L
ref: 1-3

TANK ASSEMBLY,FUEL

€ 582.00

1-4

49100434207JJ
ref: 1-4

TANK ASSEMBLY,FUEL

€ 229.50

3

6811143400019
ref: 3

EMBLEM

€ 9.50

6-1

6811143400019
ref: 6-1

EMBLEM

€ 9.50

6-2

681114340022R
ref: 6-2

EMBLEM

€ 8.00

7-1

4420043410KEY
ref: 7-1

CAP ASSY,FUEL TANK

€ 125.50

7-2

4420014830
ref: 7-2

CAP SET,FUEL TANK

€ 93.00

7-3

4420014830
ref: 7-3

CAP SET,FUEL TANK

€ 93.00

8

0932910007
ref: 8

CUSHION

€ 3.00

10

0932010020
ref: 10

CUSHION

€ 4.00

11

0932014013
ref: 11

CUSHION

€ 3.00

12

0918006308
ref: 12

SPACER(6.5X9X20)

€ 3.00

13

0916006501
ref: 13

WASHER(6.5X24X1.6)

€ 2.00

14

015000630A
ref: 14

BOLT

€ 2.50

15

093525082300B
ref: 15

HOSE(5X8.2X2000)

€ 13.00

16

0940108402
ref: 16

CLIP

€ 1.50

17

0940718401
ref: 17

CLAMP(L:187)

€ 2.00
