REAR COMBINATION LAMP

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

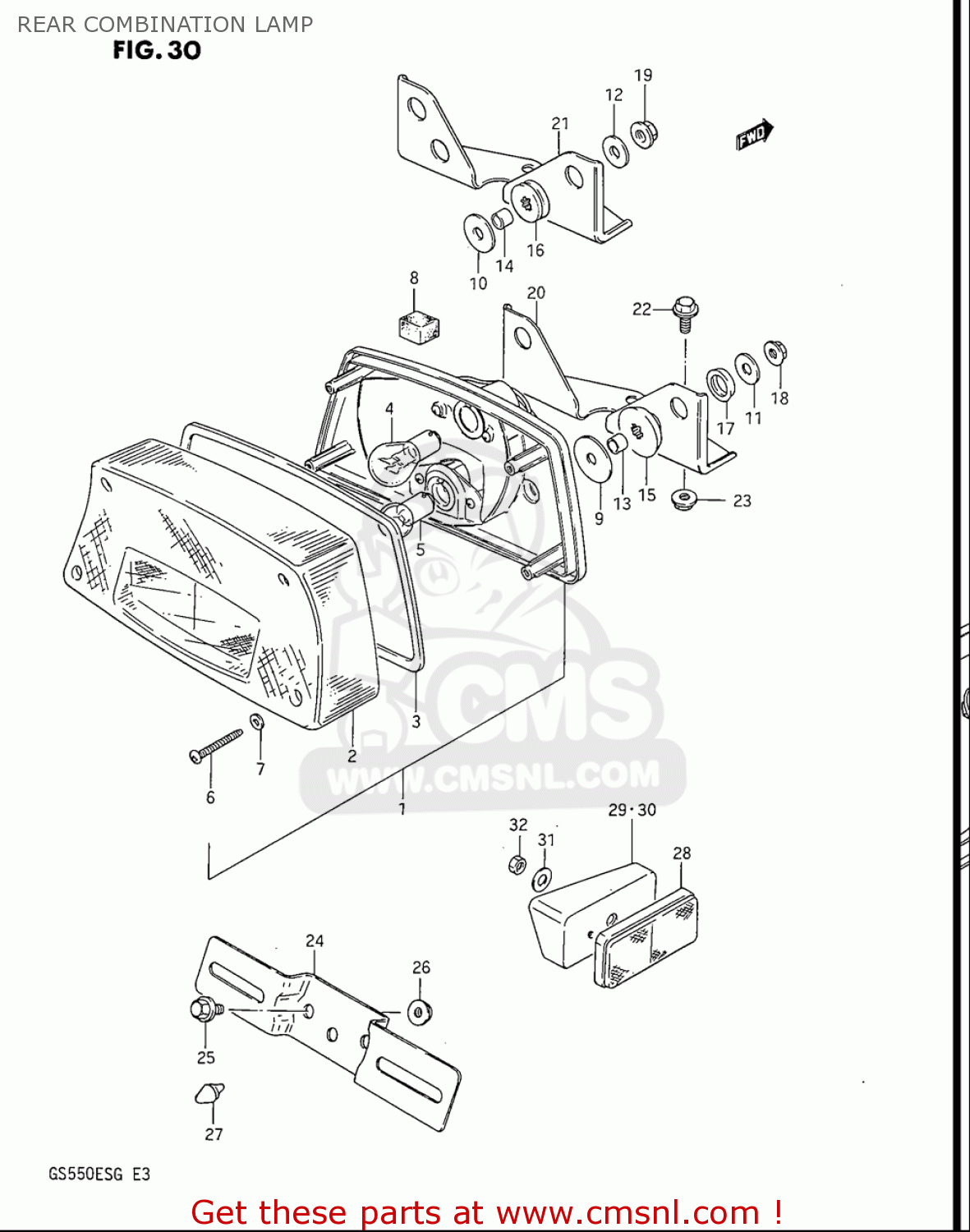

Rear combination lamp diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

prices are in EUR

ref

part #

description

quantity

0947112084
ref: 4

BULB(12V23/8W,TOKAI DENSO)

€ 6.00

0947112141
ref: 5

BULB(12V8W)

€ 7.00

0321104253
ref: 6

SCREW

€ 2.00

3562743010
ref: 7

GASKET (NAS)

€ 2.00

4556244410
ref: 8

CUSHION

€ 2.50

0916006071
ref: 9

WASHER(6.5X30X1.2)

€ 2.00

0916006066
ref: 10

WASHER(6.5X20X1.6)

€ 2.00

0916006054
ref: 11

WASHER(6.5X22X1.6)

€ 2.00

0918006006
ref: 13

SPACER (6.8X10X11.5)

€ 3.00

3576626470
ref: 14

SPACER

€ 2.00

0932009012
ref: 15

CUSHION

€ 6.00

3576535300
ref: 16

CUSHION,RR COMBINATION

€ 3.00

0932014010
ref: 17

CUSHION

€ 2.50

083161006A
ref: 18

NUT

€ 2.50

3572643401
ref: 20

BRACKET,REAR COMBINATION LAMP

€ 8.00

3572643401
ref: 21

BRACKET,REAR COMBINATION LAMP

€ 8.00

083161006A
ref: 23

NUT

€ 2.50

3592727A30
ref: 24

BRACKET,LICENSE PLATE

€ 10.00

015500612A
ref: 25

BOLT

€ 2.50

083161006A
ref: 26

NUT

€ 2.50

0932106023
ref: 27

CUSHION

€ 2.00

3597002130
ref: 28

REFLECTOR,REFLEX

€ 19.50

0916005013
ref: 31

WASHER(5.2X16X1)

€ 1.50

083100005A
ref: 32

NUT

€ 2.50
