HANDLE BAR (GS550EF/EG)

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

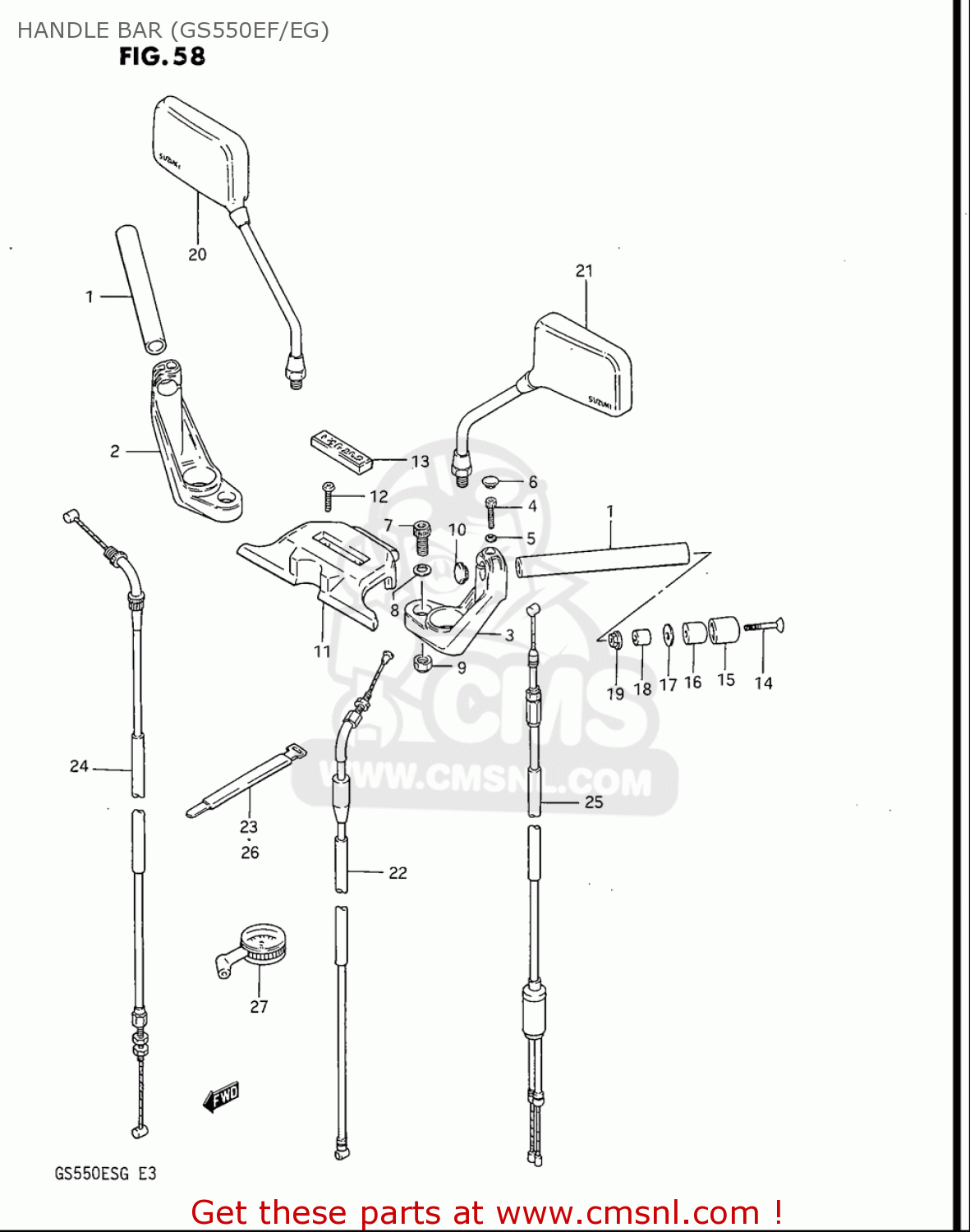

Handle bar (gs550ef/eg) diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

HANDLE BAR (GS550EF/EG) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

HANDLE BAR (GS550EF/EG) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611131330
ref: 1

HANDLEBAR

€ 20.00

2

5621131311
ref: 2

HOLDER,HANDLEBAR,RIGHT

€ 28.50

3

5622131311
ref: 3

HOLDER,HANDLEBAR,LEFT

€ 124.00

4

0713008353
ref: 4

BOLT

€ 4.00

5

0916408015
ref: 5

WASHER

€ 3.00

6

0925006004
ref: 6

CAP(OD:14.5)

€ 1.50

7

0910610023
ref: 7

BOLT(10X50)

€ 6.00

8

0916410010
ref: 8

WASHER

€ 6.50

9

0915910027
ref: 9

NUT

€ 3.00

10

5721533400
ref: 10

CAP,HANDLEBAR

€ 4.00

12

0211205357
ref: 12

SCREW

€ 1.50

13

6828143400
ref: 13

EMBLEM,HANDLE PAD

€ 9.50

14

0212206553
ref: 14

SCREW

€ 2.00

15

5627404700
ref: 15

CAP,BALANCER

€ 96.00

16

5627149410
ref: 16

BALANCER,HANDLEBAR

€ 14.50

17

56275C34401J000
ref: 17

SPACER,BALANCER

56275C34401J000

€ 3.00

18

5627244500
ref: 18

EXPANDER,HANDLE BALANCER

€ 3.00

19

0915906024
ref: 19

NUT

€ 2.00

20

5650001D01
ref: 20

MIRROR ASSEMBLY,REAR VIEW

€ 113.00

21

5660001D01
ref: 21

MIRROR ASSEMBLY,REAR VIEW

€ 113.00

22

5820043420
ref: 22

CABLE ASSY,CLUTCH

€ 22.50

23

0940718301
ref: 23

CLAMP

€ 6.00

24-1

5830043422
ref: 24-1

CABLE ASSY,THROTTLE

€ 25.00

24-2

5830043422
ref: 24-2

CABLE ASSY,THROTTLE

€ 25.00

25

5841043X02
ref: 25

CABLE,STARTER

€ 32.50

26

0940718301
ref: 26

CLAMP

€ 6.00
