COWLING (MODEL F)

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

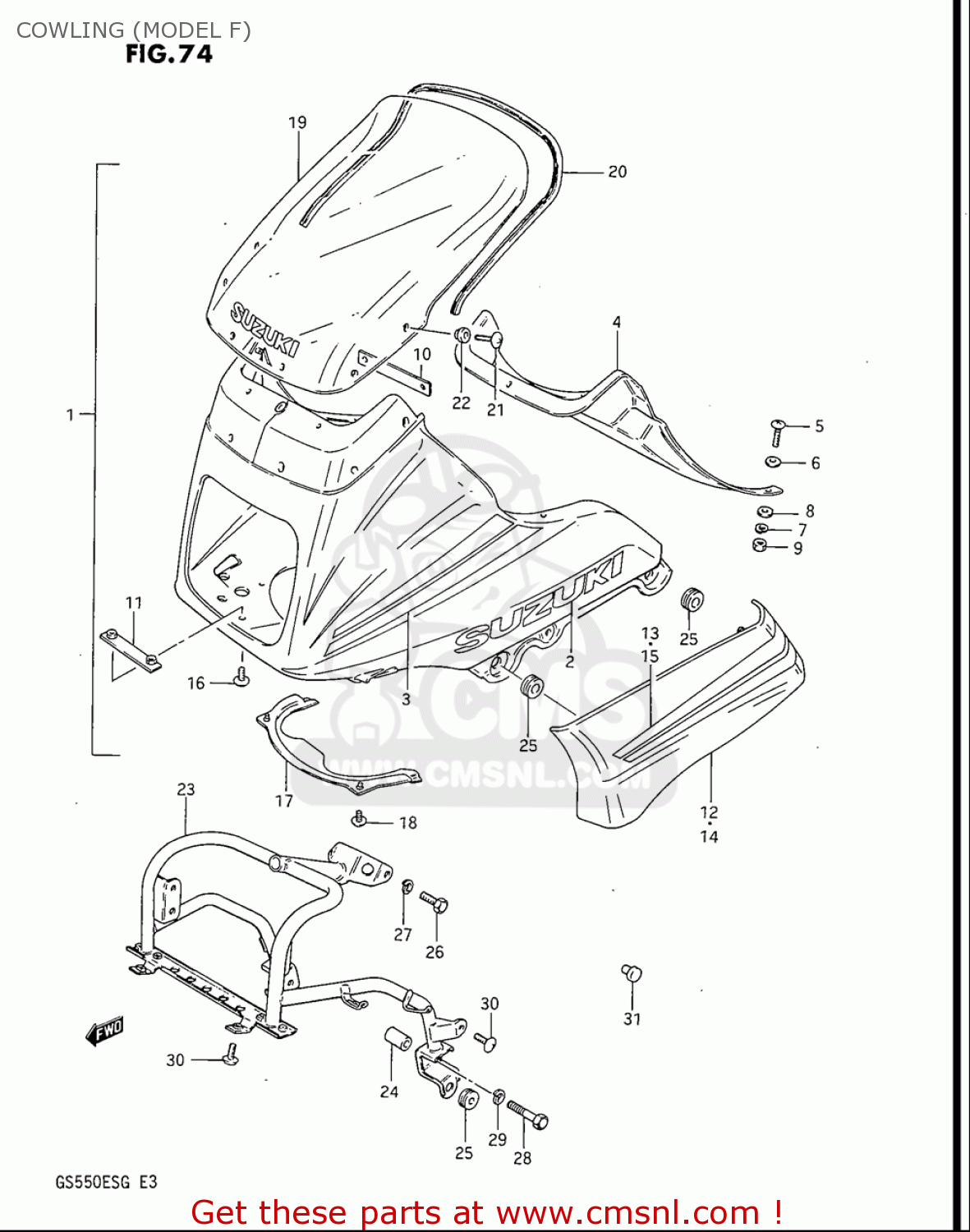

Cowling (model f) diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

COWLING (MODEL F) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

COWLING (MODEL F) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

681124340022R
ref: 2

EMBLEM

€ 9.50

5

021420516A
ref: 5

SCREW

€ 2.00

6

083220105A
ref: 6

WASHER

€ 2.50

7

0832101053
ref: 7

LOCK,WASHER

€ 3.00

8

083220105A
ref: 8

WASHER

€ 2.50

9

083100005A
ref: 9

NUT

€ 2.50

12

9443043400
ref: 12

COVER,COWLING,RIGHT

€ 63.50

16

0214205127
ref: 16

SCREW

€ 1.50

18

021420516A
ref: 18

SCREW

€ 2.00

19

9461143431
ref: 19

WINDOW,COWLING

€ 281.50

20

9463144110
ref: 20

MOLD,COWLING

€ 18.00

21

021420516A
ref: 21

SCREW

€ 2.00

22

0932005008
ref: 22

CUSHION

€ 5.00

24

0918008057
ref: 24

SPACER (8.2X12.5X23.5)

€ 2.00

25

0932008018
ref: 25

CUSHION

€ 4.00

26

0150008163
ref: 26

BOLT

€ 2.00

27

083210108A
ref: 27

WASHER,LOCK

€ 2.00

28

0150008453
ref: 28

BOLT

€ 2.50

29

083210108A
ref: 29

WASHER,LOCK

€ 2.00

30

021420612A
ref: 30

SCREW

€ 2.00

31-1

0925006001
ref: 31-1

CAP

€ 2.00

31-2

0925005007
ref: 31-2

PLUG(OD:12)

€ 2.50
