GEAR SHIFTING

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

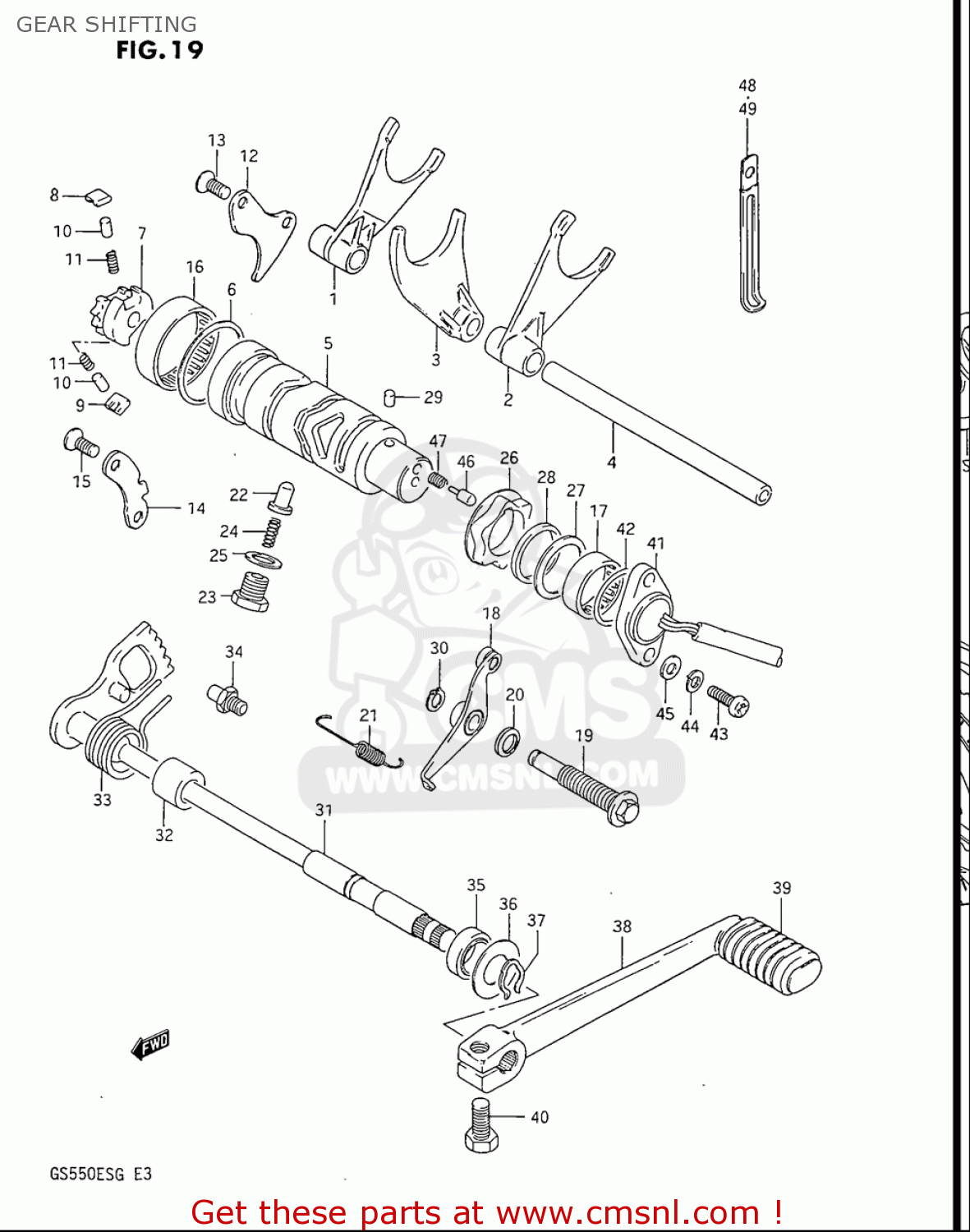

Gear shifting diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

GEAR SHIFTING GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
GEAR SHIFTING GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
GEAR SHIFTING GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
prices are in EUR
ref
part #
description
quantity
2
2522143401
ref: 2
FORK,GEAR SHIFT NO.2
€ 65.50
7
2532231310
ref: 7
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533115501
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 3.00
13
0212206127
ref: 13
SCREW
0212206127
€ 3.00
15
0212206127
ref: 15
SCREW
0212206127
€ 3.00
16
0926343001
ref: 16
BEARING(43X49X12)
0926343001
€ 30.00
17
0926325018
ref: 17
BEARING(25X32X12)
0926325018
€ 17.50
20
0916810002
ref: 20
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
22
2535130010
ref: 22
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
23
2535430000
ref: 23
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
25
0916814004
ref: 25
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
26
2538104700
ref: 26
PLATE,GEAR SHIFT CAM STOPPER
2538104700
€ 13.00
27
0821125321
ref: 27
WASHER
0821125321
€ 3.00
29
0422104069
ref: 29
PIN
0422104069
€ 2.00
30
0833131086
ref: 30
CIRCLIP
0833131086
€ 2.00
32
0918012068
ref: 32
SPACER(12X20X15.3)
0918012068
€ 3.00
33
0944426013
ref: 33
SPRING
0944426013
€ 3.50
34
2567101011
ref: 34
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
35
0928512006
ref: 35
SEAL,OIL (12X22X9)
0928512006
€ 7.00
36
0916012090
ref: 36
WASHER (12.5X26X1.6)
0916012090
€ 2.00
37
0833131126
ref: 37
CIRCLIP,12 MM
0833131126
€ 2.00
38
2560045130
ref: 38
LEVER ASSY,GEAR SHIFT
2560045130
€ 52.50
39
2565249300
ref: 39
RUBBER,PEDAL
2565249300
€ 5.50
40
0150008207
ref: 40
BOLT
0150008207
€ 3.00
42
0928026005
ref: 42
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
43
0912505102
ref: 43
SCREW(5X14)
0912505102
€ 2.50
44
0832101057
ref: 44
WASHER,LOCK
0832101057
€ 2.00
45
0832201057
ref: 45
WASHER
0832201057
€ 2.50
46
0920905011
ref: 46
PIN(5X15.5)
0920905011
€ 2.00
47
0944004010
ref: 47
SPRING
0944004010
€ 1.50
48
0940406432
ref: 48
CLAMP(L:65)
0940406432
€ 2.50
49
0940406434
ref: 49
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
