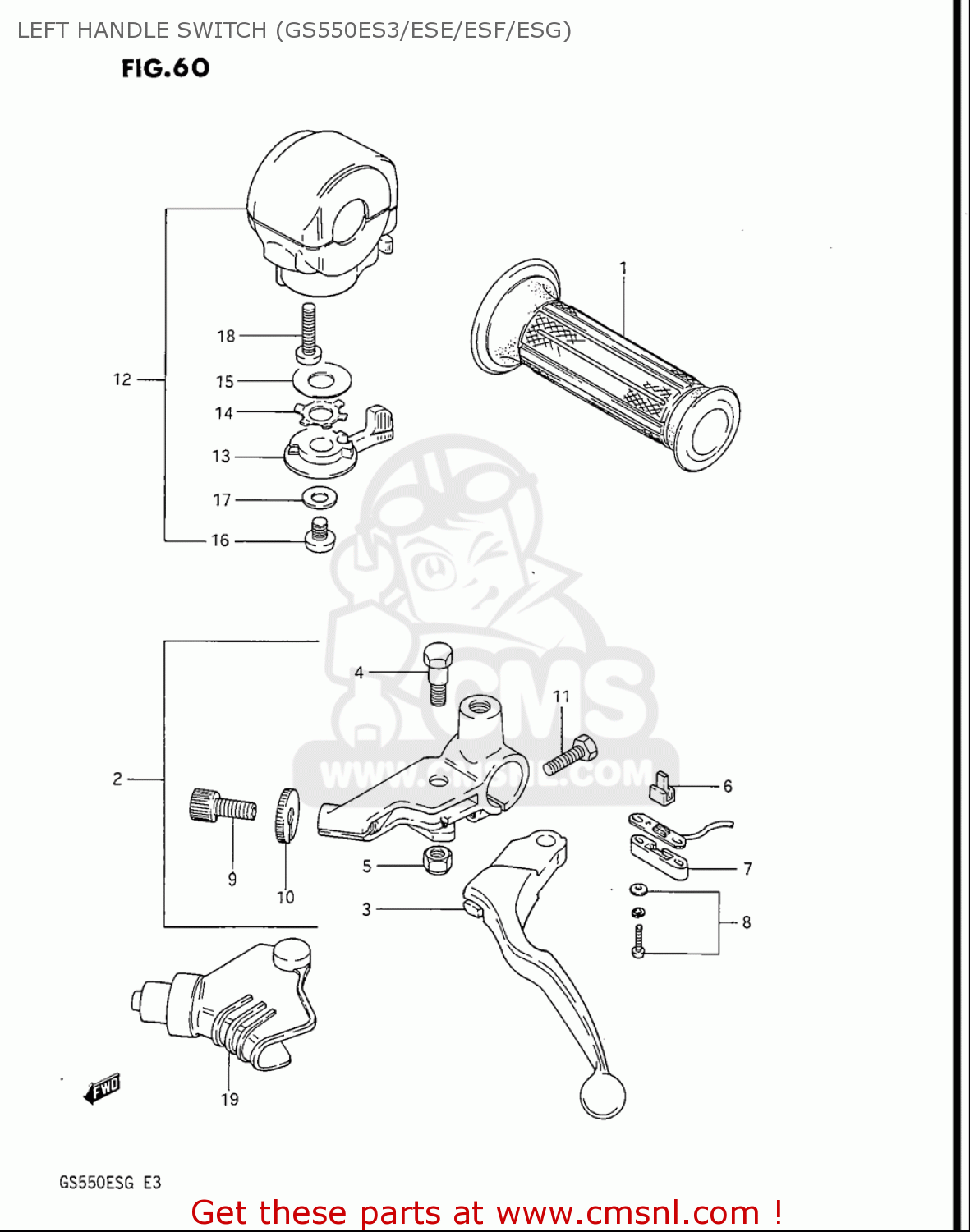

LEFT HANDLE SWITCH (GS550ES3/ESE/ESF/ESG)

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

Left handle switch (gs550es3/ese/esf/esg) diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

LEFT HANDLE SWITCH (GS550ES3/ESE/ESF/ESG) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

LEFT HANDLE SWITCH (GS550ES3/ESE/ESF/ESG) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5721149500
ref: 1

GRIP,L

€ 9.00

2

5750033430
ref: 2

CLUTCH LEVER & SWITCH ASSY

€ 51.50

3

5762033410
ref: 3

LEVER,CLUTCH

€ 28.50

4

5753114A00
ref: 4

BOLT,LEVER SET

€ 8.50

5

0831921063
ref: 5

NUT

€ 2.50

6

5746518601
ref: 6

CONTACT,SWITCH

€ 4.50

7

5748133010
ref: 7

COVER,FR BK TERMINAL BASE

€ 19.50

8

5748449110
ref: 8

SCREW

€ 1.50

9

5744111010
ref: 9

ADJUSTER,CABLE

€ 8.00

10

5744211010
ref: 10

NUT,CABLE ADJUSTER

€ 4.00

11

015000620A
ref: 11

BOLT

€ 2.00

13

3757145110
ref: 13

LEVER,STARTER

€ 19.00

14

3757345110
ref: 14

WASHER

€ 2.00

16

0211206087
ref: 16

SCREW

€ 2.00

17

083220106A
ref: 17

WASHER

€ 2.00

18

0912505066
ref: 18

SCREW(5X25)

€ 2.00

19

5766133400
ref: 19

COVER,CLUTCH LEVER

€ 7.50
