WIRING HARNESS

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

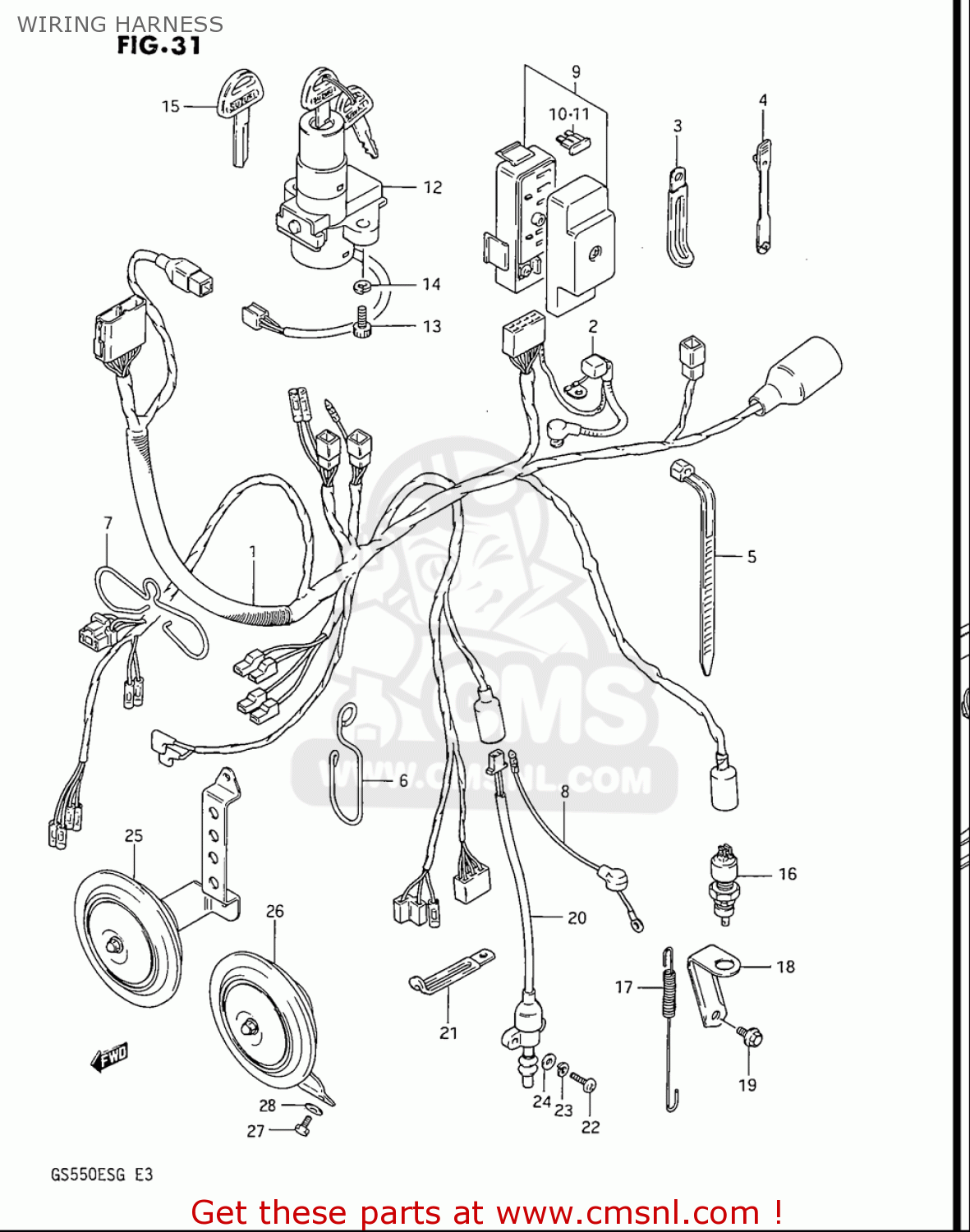

Wiring harness diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

WIRING HARNESS GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

WIRING HARNESS GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

33624C38400J000
ref: 2

CAP BATTERY TER

€ 4.00

3-1

0940406432
ref: 3-1

CLAMP(L:65)

€ 2.50

3-2

0940406434
ref: 3-2

CLAMP(L:80 T:1.0)

€ 3.00

4

0940705403
ref: 4

CLAMP,L:88

€ 1.50

5-1

0940711401
ref: 5-1

CLAMP(L:95)

€ 2.50

5-2

0940714403
ref: 5-2

CLAMP(L:125)

€ 2.50

5-3

0940718402
ref: 5-3

CLAMP(L:165)

€ 2.50

5-4

0940725401
ref: 5-4

CLAMP(L:235)

€ 4.00

6

3661849302
ref: 6

GUIDE,WIRING HARNESS

€ 4.50

7

3661843400
ref: 7

BOOT,WIRING HARNESS

€ 0.00

8

3685113A00
ref: 8

WIRE,WATER TEMPERATURE

€ 7.50

9

3674043401
ref: 9

FUSE BOX ASSY

€ 61.00

10

0948110101
ref: 10

FUSE(10A)

€ 2.50

11

0948115101
ref: 11

FUSE(15A)

€ 1.50

12-1

3710000A52
ref: 12-1

IGNITION SWITCH/STEERING LOCK

€ 93.50

12-2

3710000A01
ref: 12-2

IGNITION SWITCH/STEERING LOCK

€ 122.50

13

071300616A
ref: 13

BOLT

€ 3.00

14

0832101067
ref: 14

WASHER,LOCK

€ 2.50

15

3714647010
ref: 15

KEY,BLANK

€ 15.00

16

3774024A00
ref: 16

SWITCH ASSY,STOP LAMP

€ 20.50

17

0944306005
ref: 17

SPRING

€ 6.00

19

0155006107
ref: 19

BOLT

€ 2.50

20

3784031302
ref: 20

SWITCH ASSEMBLY,SIDE STAND

€ 58.50

21

0940406434
ref: 21

CLAMP(L:80 T:1.0)

€ 3.00

22

0211205203
ref: 22

SCREW

€ 2.50

23

0832101053
ref: 23

LOCK,WASHER

€ 3.00

24

083220105A
ref: 24

WASHER

€ 2.50

27

015000612A
ref: 27

BOLT

€ 2.00

28

083210106A
ref: 28

WASHER,LOCK

€ 2.00
