FRONT DAMPER (MODEL F/G)

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

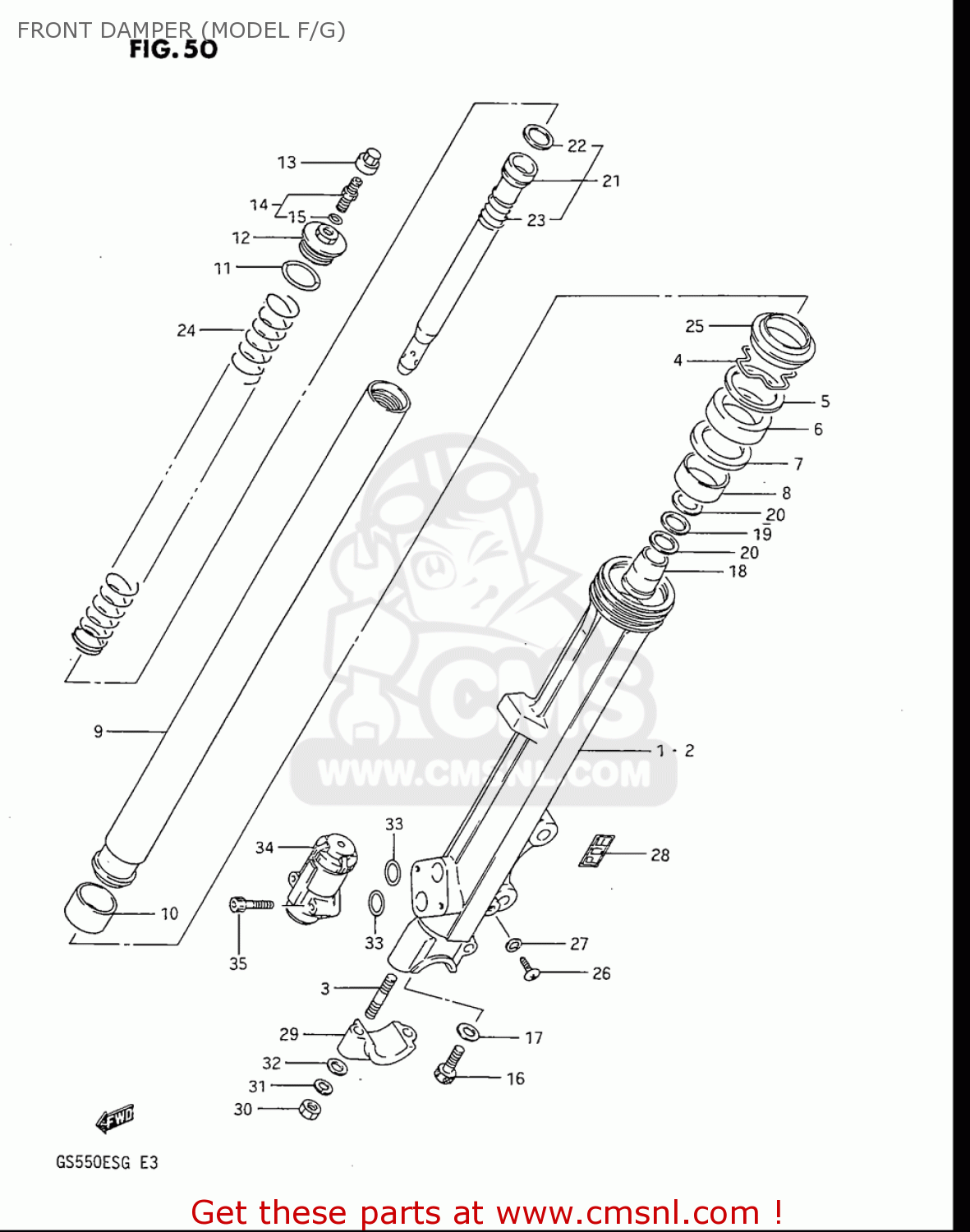

Front damper (model f/g) diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

FRONT DAMPER (MODEL F/G) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

FRONT DAMPER (MODEL F/G) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

0141108303
ref: 3

STUD 8X30

€ 2.00

4

5115640301
ref: 4

RING,STOPPER

€ 4.50

5

5115849000
ref: 5

WASHER. FRONT FORK

€ 7.00

6

5115308C20
ref: 6

SEAL,OIL

€ 16.50

7

5115849500
ref: 7

WASHER

€ 4.00

8

5116701D00
ref: 8

METAL,SLIDE

€ 10.50

9

5111043420
ref: 9

TUBE,FORK,INNER

€ 264.00

10

5112149510
ref: 10

METAL,FR FORK PISTON

€ 17.50

11

5111738260
ref: 11

O RING

€ 2.50

12

5135116700
ref: 12

CAP

€ 0.00

13

5129449020
ref: 13

CAP,FRONT FORK AIR VALVE

€ 8.00

14

6227414400
ref: 14

VALVE ASSEMBLY,REAR CUSHION

€ 8.00

15

0928006005
ref: 15

O RING(D:1.9,ID:5.7)

€ 2.50

16

5114716510
ref: 16

BOLT,FORK CYLINDER(10X25)

€ 3.50

17

5114841310
ref: 17

GASKET (NAS)

€ 2.50

18

5119545420
ref: 18

PIECE,OIL LOCK

€ 15.50

19

5112345420
ref: 19

WASHER

€ 3.50

20

5112545420
ref: 20

SPRING,LEAF

€ 3.50

22

5119643400
ref: 22

RING,PISTON

€ 7.00

25

5117343400
ref: 25

SEAL,DUST

€ 14.00

26

021120408A
ref: 26

SCREW

€ 2.00

27

5118303010
ref: 27

GASKET,DRAIN,PLUG (NAS)

€ 3.00

28

5116900A10
ref: 28

EMBLEM

€ 0.00

30

083100008A
ref: 30

NUT

€ 2.00

31

083210108A
ref: 31

WASHER,LOCK

€ 2.00

32

083220108A
ref: 32

WASHER

€ 2.00

33

5179900A00
ref: 33

O RING

€ 5.50

34

5177043405
ref: 34

PDF ASSEMBLY

€ 169.50

35

0713006407
ref: 35

BOLT

€ 2.50
