Buy Suzuki GS Parts Online


FRONT DAMPER (GS550ES3/ESE)

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

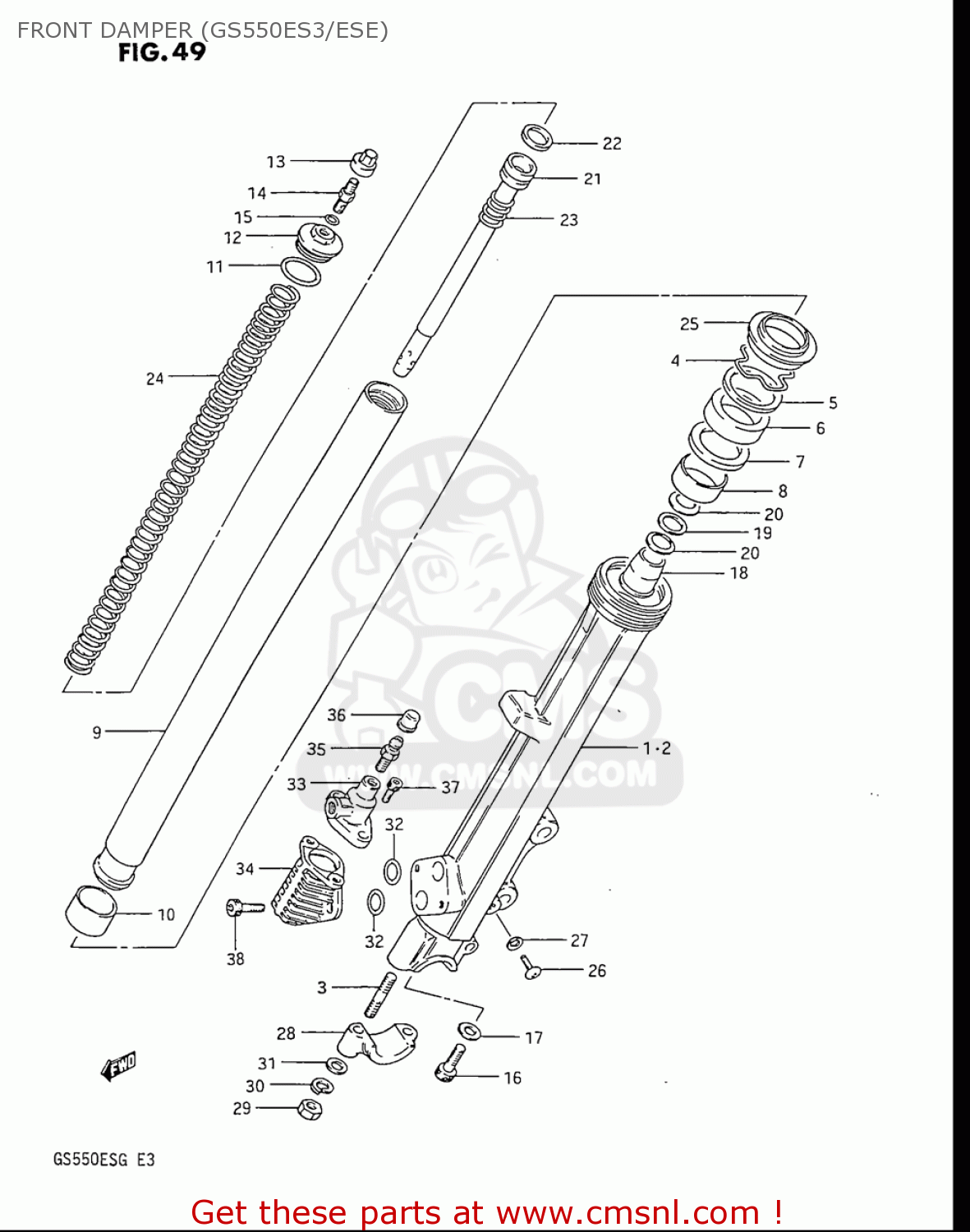

Front damper (gs550es3/ese) diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

FRONT DAMPER (GS550ES3/ESE) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
FRONT DAMPER (GS550ES3/ESE) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
FRONT DAMPER (GS550ES3/ESE) GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
prices are in EUR
ref
part #
description
quantity
3
0141108303
ref: 3
STUD 8X30
€ 2.00
4
5115640301
ref: 4
RING,STOPPER
5115640301
€ 4.50
5
5115849000
ref: 5
WASHER. FRONT FORK
5115849000
€ 7.00
6
5115308C20
ref: 6
SEAL,OIL
5115308C20
€ 16.50
7
5115849500
ref: 7
WASHER
5115849500
€ 4.00
8
5116701D00
ref: 8
METAL,SLIDE
5116701D00
€ 10.50
9
5111043420
ref: 9
TUBE,FORK,INNER
€ 264.00
10
5112149510
ref: 10
METAL,FR FORK PISTON
5112149510
€ 17.50
11
5111738260
ref: 11
O RING
5111738260
€ 2.50
12
5135116700
ref: 12
CAP
€ 0.00
13
5129449020
ref: 13
CAP,FRONT FORK AIR VALVE
5129449020
€ 8.00
14
6227414400
ref: 14
VALVE ASSEMBLY,REAR CUSHION
€ 8.00
15
0928006005
ref: 15
O RING(D:1.9,ID:5.7)
0928006005
€ 2.50
16
5114716510
ref: 16
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
17
5114841310
ref: 17
GASKET (NAS)
5114841310
€ 2.50
18
5119545420
ref: 18
PIECE,OIL LOCK
5119545420
€ 15.50
19
5112345420
ref: 19
WASHER
5112345420
€ 3.50
20
5112545420
ref: 20
SPRING,LEAF
5112545420
€ 3.50
22
5119643400
ref: 22
RING,PISTON
€ 7.00
25
5117343400
ref: 25
SEAL,DUST
5117343400
€ 14.00
26
021120408A
ref: 26
SCREW
€ 2.00
27
5118303010
ref: 27
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
29
083100008A
ref: 29
NUT
083100008A
€ 2.00
30
083210108A
ref: 30
WASHER,LOCK
083210108A
€ 2.00
31
083220108A
ref: 31
WASHER
083220108A
€ 2.00
32
0928012012
ref: 32
O RING(D:2.4,ID:11.8)
0928012012
€ 5.00
34
5177004710
ref: 34
VALVE SET,MODULATOR
€ 134.50
35
5177844130
ref: 35
BREATHER,AIR
5177844130
€ 12.50
36
5515666310
ref: 36
CAP,BLEEDER PLUG
5515666310
€ 6.00
38
071300616A
ref: 38
BOLT
071300616A
€ 3.00
