STARTING MOTOR

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

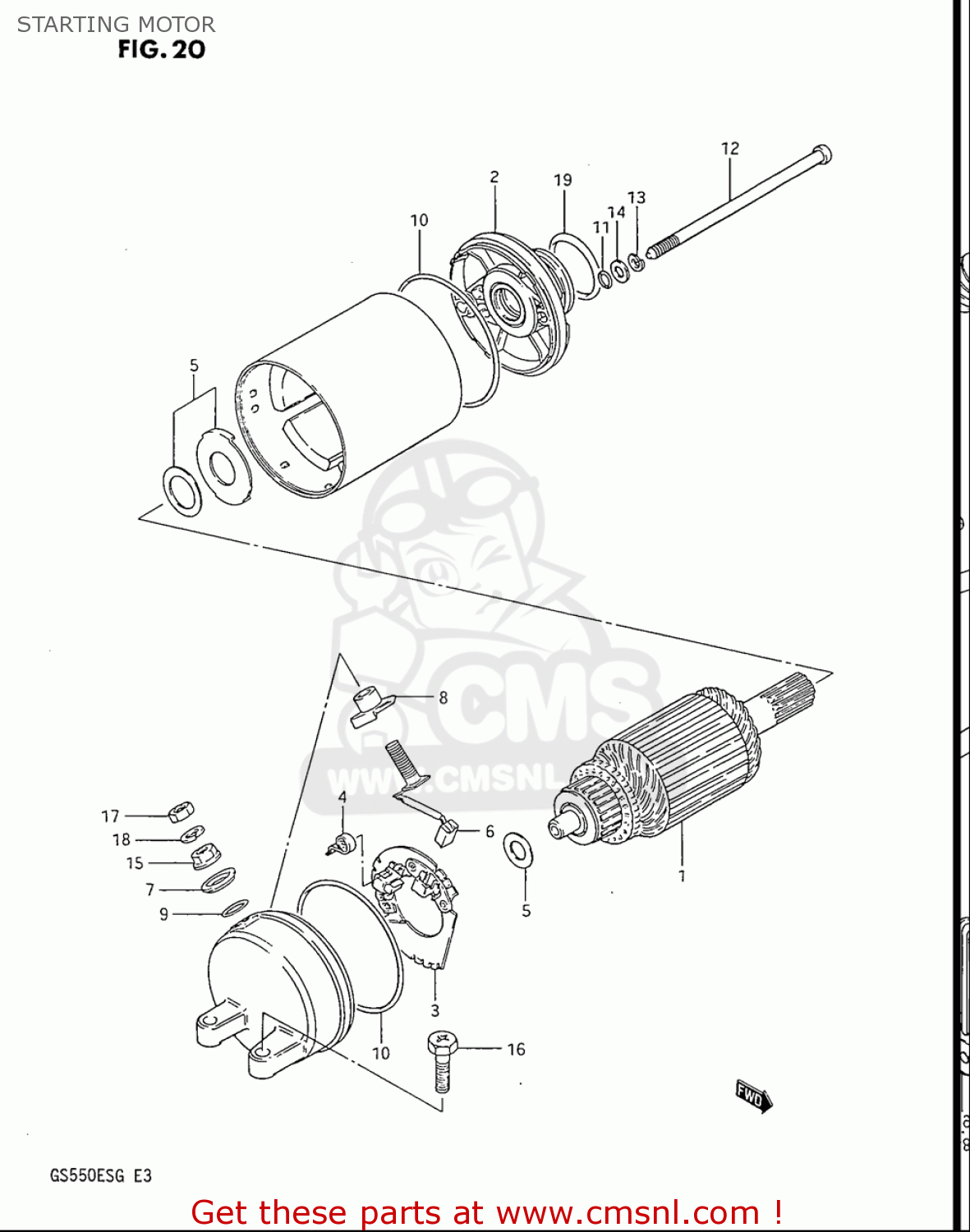

Starting motor diagram GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

STARTING MOTOR GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

STARTING MOTOR GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

prices are in EUR

ref

part #

description

quantity

0

3110030B00H17
ref: 0

MOTOR ASSY,STARTING

€ 731.50

1

3131043401H17
ref: 1

ARMATURE

€ 173.00

2

3115043400
ref: 2

BRACKET SET,STARTING MOTOR

€ 88.00

3

3113227A01
ref: 3

HOLDER,BRUSH

€ 47.00

4

3113565010
ref: 4

SPRING

€ 3.00

5

3117043400
ref: 5

SHIM SET,STARTING MOTOR

€ 3.50

6

3113038300
ref: 6

BRUSH SUB ASSY,STARTING MOTOR

€ 12.50

7

3117238300
ref: 7

BUSHING

€ 4.00

8

3117138300
ref: 8

BUSH,B

€ 5.50

9

3114338300
ref: 9

O RING

€ 3.50

10

3126444110
ref: 10

O RING

€ 8.00

11

3115638300
ref: 11

O RING

€ 3.00

12

3128188C00
ref: 12

BOLT

€ 8.50

13

0832101057
ref: 13

WASHER,LOCK

€ 2.00

14

3116138300
ref: 14

WASHER

€ 2.50

15

0831931067
ref: 15

NUT

€ 2.50

16

3121533400
ref: 16

BOLT

€ 2.00

17

083100006A
ref: 17

NUT

€ 2.00

18

083210106A
ref: 18

WASHER,LOCK

€ 2.00

19

0928024003
ref: 19

O RING(D:3,ID:24.5)

€ 2.00
