AIR CLEANER

GS650G 1981 (X) USA (E03)

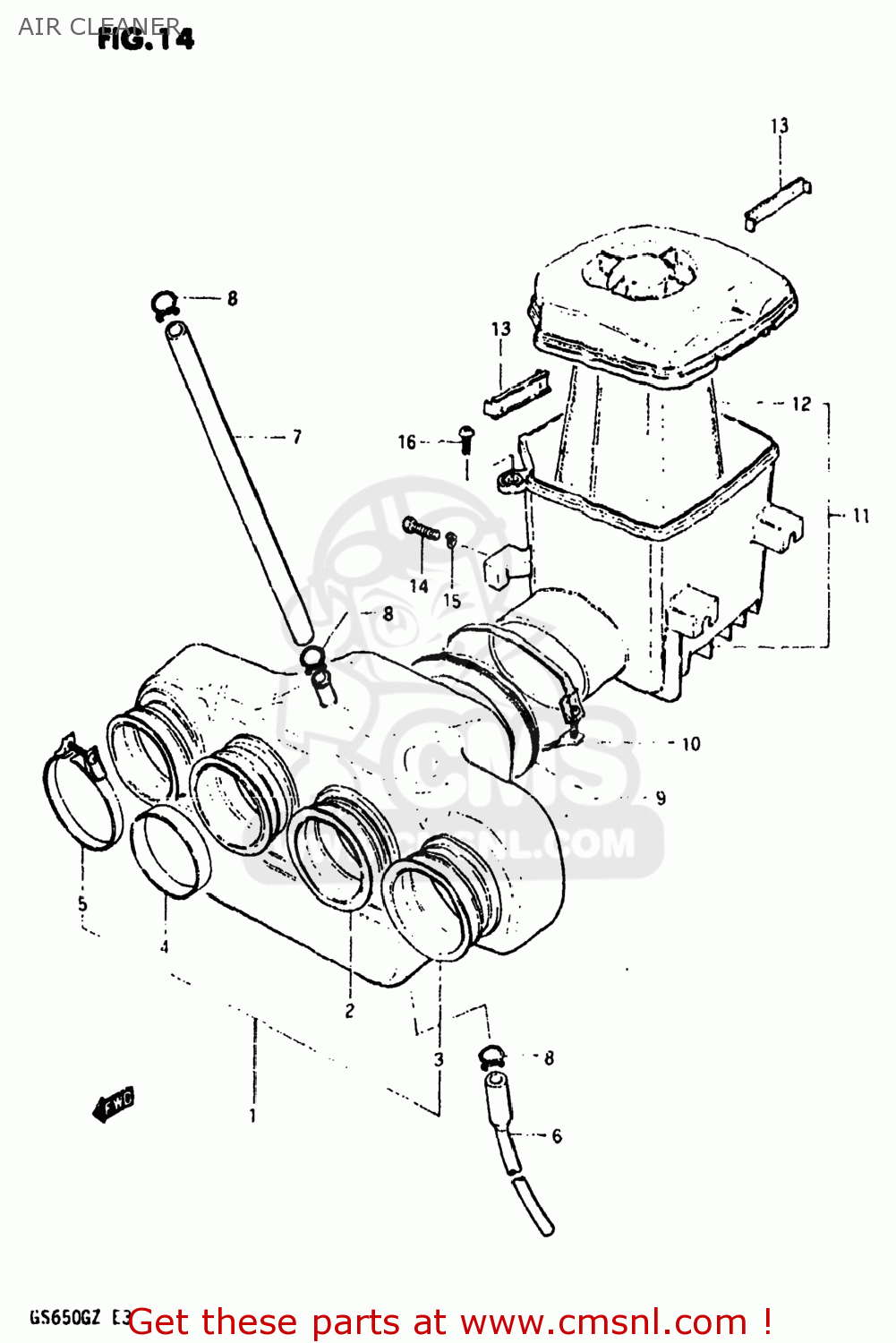

Air cleaner diagram GS650G 1981 (X) USA (E03)

AIR CLEANER GS650G 1981 (X) USA (E03)

AIR CLEANER GS650G 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1371034200
ref: 1

CASE,AIR CLEANER,FRONT

€ 97.50

2

1388134200
ref: 2

TUBE,OUTLET,INNER

€ 19.00

3

1388234200
ref: 3

TUBE,OUTLET OUTER

€ 17.00

4

1388534200
ref: 4
13885-47030

RING,CARBURETOR AIR IN

€ 8.00

5

0940260206
ref: 5
09402-60208

CLAMP

€ 4.50

6

1387000020
ref: 6
13870-11458

DRAIN TUBE

€ 13.50

7

0934311001
ref: 7
09352-11153-00B

HOSE

€ 30.00

8

0940114301
ref: 8

CLIP

€ 2.00

9

1380134200
ref: 9

JOINT,HOSE AIR CLEANER

€ 8.00

10

0940284206
ref: 10

CLAMP

€ 7.00

11

1370034810
ref: 11

CLEANER SET,AIR,REAR

€ 86.50

12

1378034200
ref: 12

FILTER ASSY

€ 43.50

13

1382100011
ref: 13

SLIDER

€ 3.50

14

0110706168
ref: 14
01500-06167

BOLT, UPPER

€ 3.00

15

0832121068
ref: 15
08321-01067

LOCK WASHER

€ 2.50

16

0214206167
ref: 16

SCREW

€ 2.00
