MASTER CYLINDER (MODEL Z)
GS650G 1981 (X) USA (E03)

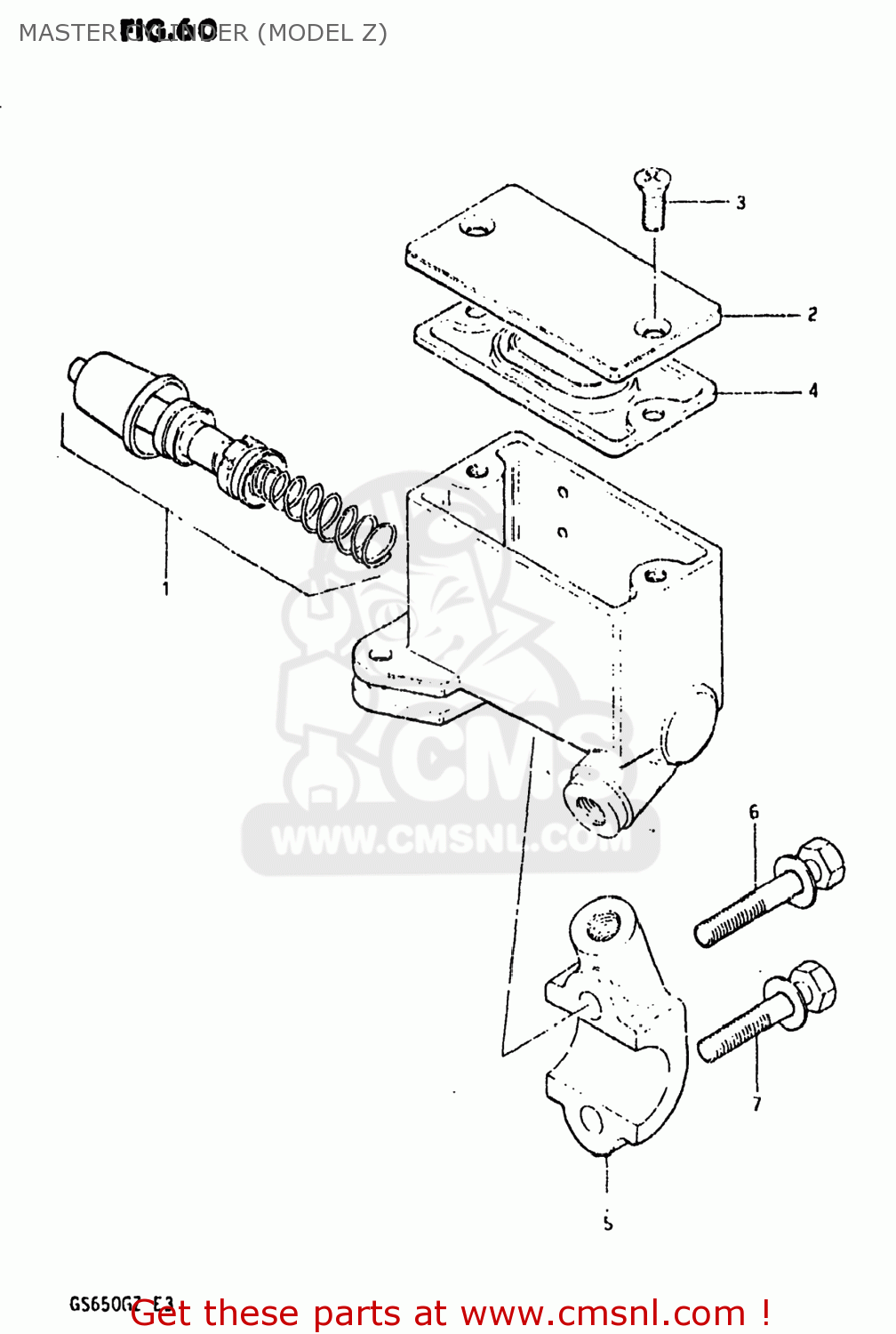

Master cylinder (model z) diagram GS650G 1981 (X) USA (E03)
MASTER CYLINDER (MODEL Z) GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5960034230
ref: 0
59600-34250
59600-34250
€ 101.00
1
5960049810
ref: 1
PISTON & CUP SET
€ 48.50
2
5966949330
ref: 2
59669-49350
CAP,MASTER CYLINDER,REAR
€ 15.00
3
5969149300
ref: 3
59691-49310
SCREW,RESERVOIR CAP
€ 6.50
4
5966749300
ref: 4
59667-49301
DIAPHRAGM,MASTER CYLINDER
€ 15.50
5
5967149000
ref: 5
HOLDER
€ 22.50
6
5969449001
ref: 6
BOLT,MASTER CYLINDER H
€ 3.00
7
5969349001
ref: 7
BOLT,MASTER CYLINDER H
€ 4.00
