STEERING STEM (MODEL Z)
GS650G 1981 (X) USA (E03)

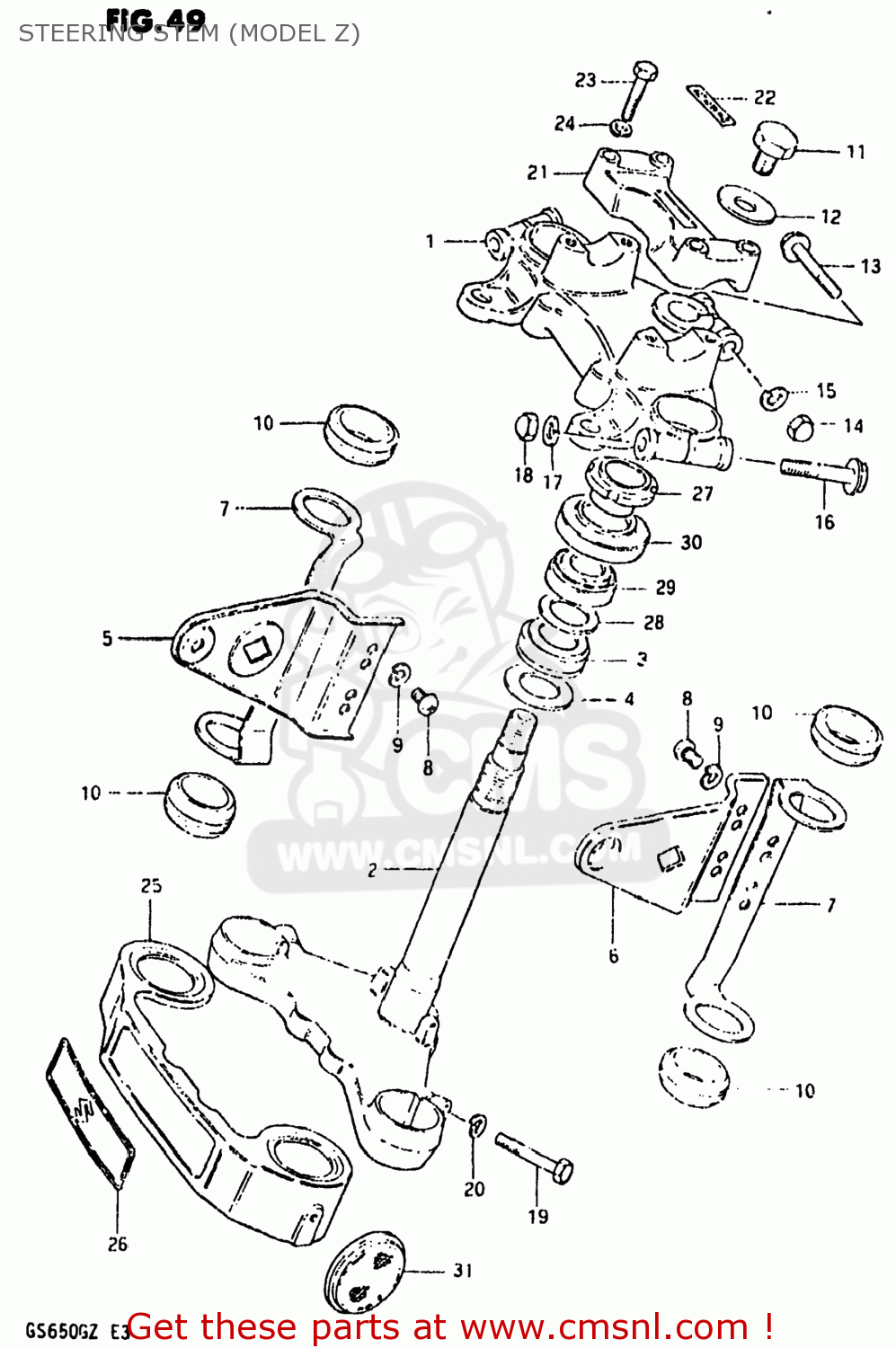

Steering stem (model z) diagram GS650G 1981 (X) USA (E03)
STEERING STEM (MODEL Z) GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5131134200291
ref: 1
HEAD,STEERING STEM
€ 87.50
2
5140134810
ref: 2
51400-44870
STEM,STEERING
€ 215.50
3
0926530005
ref: 3
09265-30009
BEARING
€ 49.50
4
0821130402
ref: 4
09181-30184
WASHER,THRUST
€ 4.00
5
5153034220291
ref: 5
51500-34820-291
BRACKET,HEADLAMP,RIGHT
€ 15.00
6
5154034220291
ref: 6
BRACKET,HEADLAMP,LEFT
€ 10.50
7
5153134210291
ref: 7
FRAME,HEAD LAMP BRACKET
€ 18.00
8
0211206085
ref: 8
02112-06087
SCREW
€ 1.50
9
0832131068
ref: 9
08321-01067
LOCK WASHER
€ 2.50
10
5155347000
ref: 10
51553-34280
CUSHION,HEADLAMP BRACKET
€ 3.50
11
0910412013
ref: 11
BOLT(12X20)
€ 6.50
12
0916012006
ref: 12
09160-12089
WASHER
€ 2.00
13
0151708508
ref: 13
01550-08507
BOLT
€ 3.50
14
0831311085
ref: 14
08313-10083
NUT,M8X1.25X12
€ 2.00
15
0832121085
ref: 15
08321-0108A
LOCK WASHER
€ 2.50
16
0151710558
ref: 16
01550-10557
BOLT 10X55
€ 3.00
17
0832131108
ref: 17
08321-01107
LOCK WASHER
€ 2.00
18
0914510002
ref: 18
NUT
€ 4.00
19
0110710408
ref: 19
01500-10407
BOLT 10X40
€ 3.00
20
0832121108
ref: 20
08321-01107
LOCK WASHER
€ 2.00
21
5621145400291
ref: 21
HOLDER,HANDLEBAR
€ 25.50
22
5621245400
ref: 22
EMBLEM,HANDLE CLAMP
€ 4.00
23
0120408357
ref: 23
BOLT
€ 3.50
24
0832121088
ref: 24
08321-01087
LOCK WASHER
€ 2.00
25
5187134501
ref: 25
COVER,FRONT FORK
€ 34.00
26
6821134500
ref: 26
EMBLEM
€ 8.50
27
5163134200
ref: 27
NUT,STEERING STEM
€ 23.00
28
0916018002
ref: 28
WASHER(18.5X24X1)
€ 2.00
29
0926525008
ref: 29
09265-25019
TAPER,ROLLER BEARING
€ 48.50
30
5164340501
ref: 30
51643-40502
DUST SEAL,STEERING,UPPER
€ 8.00
31
3595049080
ref: 31
REFLEX REFLECTOR,RR
€ 17.50
