SEAT TAIL COVER (MODEL Z)
GS650G 1981 (X) USA (E03)

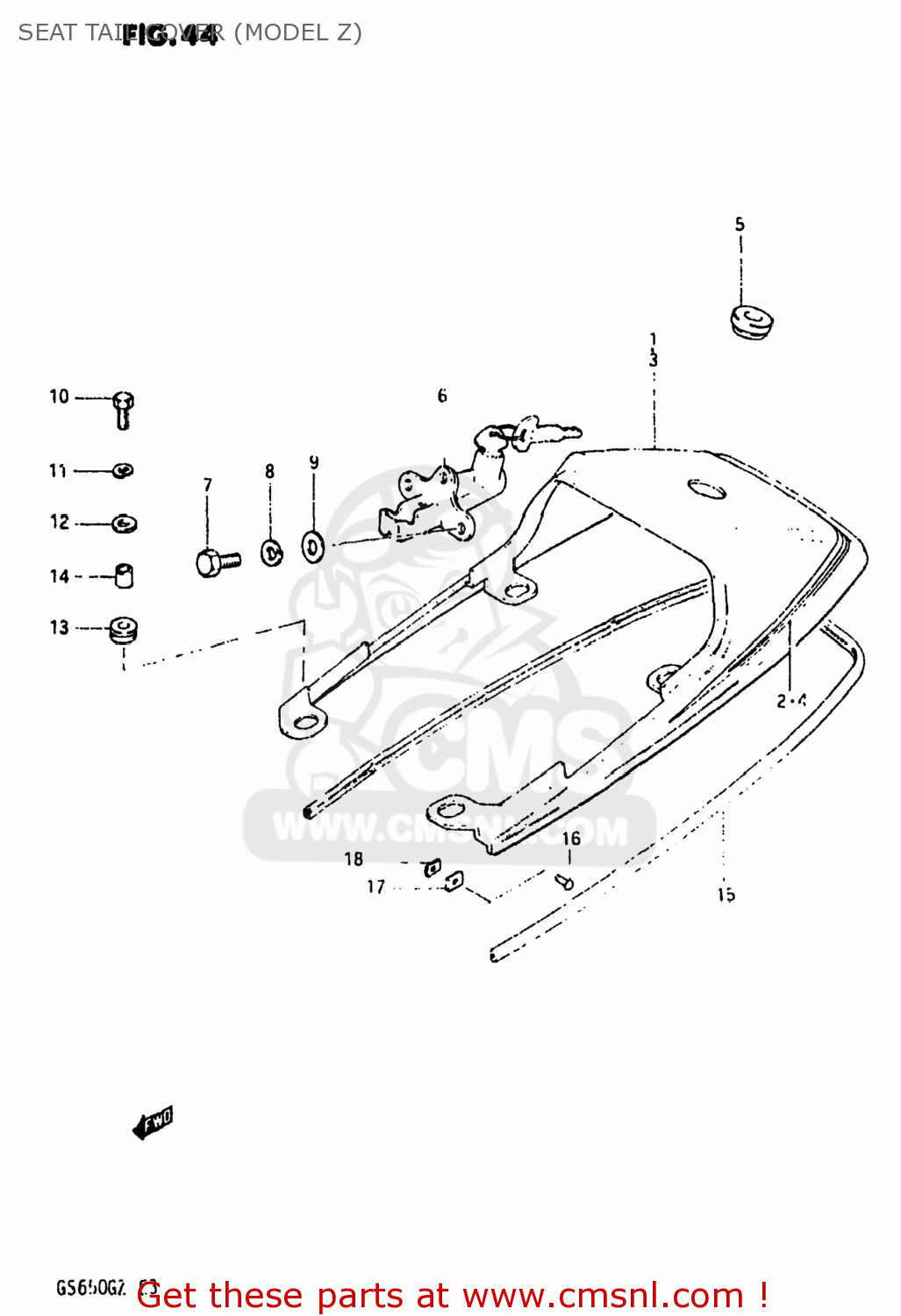

Seat tail cover (model z) diagram GS650G 1981 (X) USA (E03)
SEAT TAIL COVER (MODEL Z) GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
455003421013Z
ref: 1
BOX ASSEMBLY,SEAT TAIL
€ 0.00
2
681603421070G
ref: 2
TAPE SET,BOX SEAT TAIL
€ 0.00
3
455003421005L
ref: 3
COVER ASSEMBLY,SEAT TAIL
€ 0.00
4
681603421071F
ref: 4
TAPE SET,BOX SEAT TAIL
€ 0.00
5
4552249200
ref: 5
GROMMET,SEAT LOCK HOLE
€ 5.50
6
9570049830
ref: 6
LOCK SET,SEAT
€ 81.50
7
0110706128
ref: 7
01500-06127
BOLT
€ 2.00
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
0110706208
ref: 10
01500-06207
BOLT
€ 2.00
11
0832121068
ref: 11
08321-01067
LOCK WASHER
€ 2.50
12
0916006012
ref: 12
09160-06054
WASHER(6,5X22X1.6)
€ 2.00
13
0932010011
ref: 13
09320-10502
CUSHION
€ 5.50
14
0918007004
ref: 14
SPACER(6.5X10.5X12)
€ 2.50
15
4552034200
ref: 15
MOLDING,SEAT TAIL COVER
€ 11.50
16
0922003002
ref: 16
RIVET
€ 3.00
17
4552834200
ref: 17
CUSHION,SEAT TAIL
€ 2.50
18
0914803002
ref: 18
NUT
€ 3.00
