HANDLEBAR

GS650G 1981 (X) USA (E03)

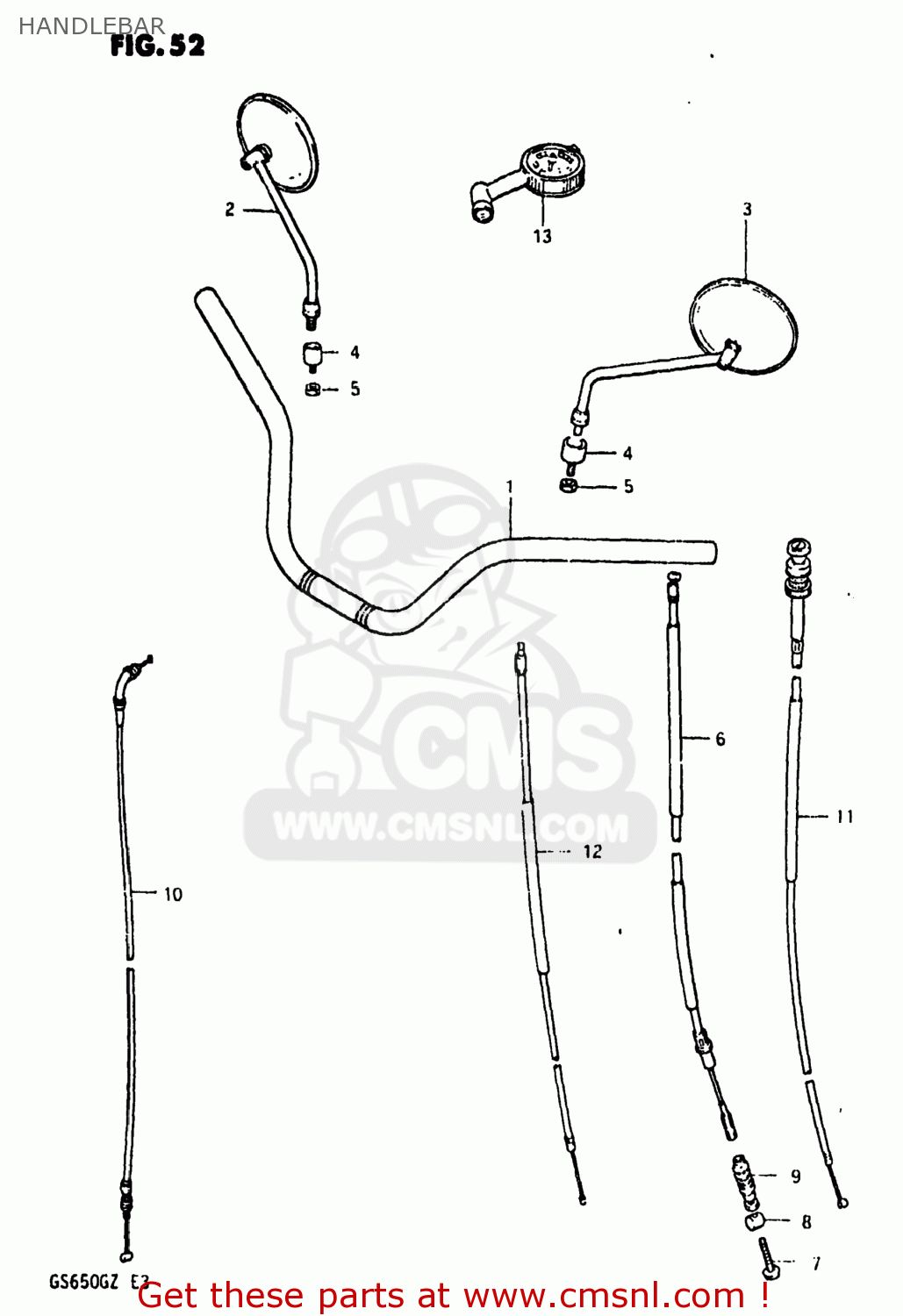

Handlebar diagram GS650G 1981 (X) USA (E03)

HANDLEBAR GS650G 1981 (X) USA (E03)

HANDLEBAR GS650G 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611047300
ref: 1

HANDLEBAR

€ 59.50

2

5650045100
ref: 2
56500-38AB1

MIRROR ASSEMBLY,RIGHT

€ 209.00

3

5660045100
ref: 3
56500-38AB1

MIRROR ASSEMBLY,LEFT

€ 209.00

4

5670031001
ref: 4
56700-45400

CUSHION,REAR VIEW MIRROR

€ 18.00

5

0831022108
ref: 5
08310-00107

NUT

€ 2.50

6

5820034200
ref: 6
58200-34X00

CABLE ASSEMBLY,CLUTCH

€ 46.00

7

0912505034
ref: 7

SCREW

€ 1.50

8

0920910019
ref: 8

PIN

€ 3.00

9

0928707004
ref: 9
09287-07003

DUST SEAL

€ 4.00

10

5830044230
ref: 10
58300-44232

CABLE ASSEMBLY,THROTTLE

€ 47.50

11

5840047000
ref: 11
58400-45110

CABLE ASSEMBLY,STARTER

€ 27.00

12

5841034520
ref: 12
58410-34X04

CABLE COMP,STARTER

€ 6.00

13

9620041330
ref: 13

GAUGE ASSY,AIR PRESSURE

€ 77.50
