CLUTCH
GS650G 1981 (X) USA (E03)

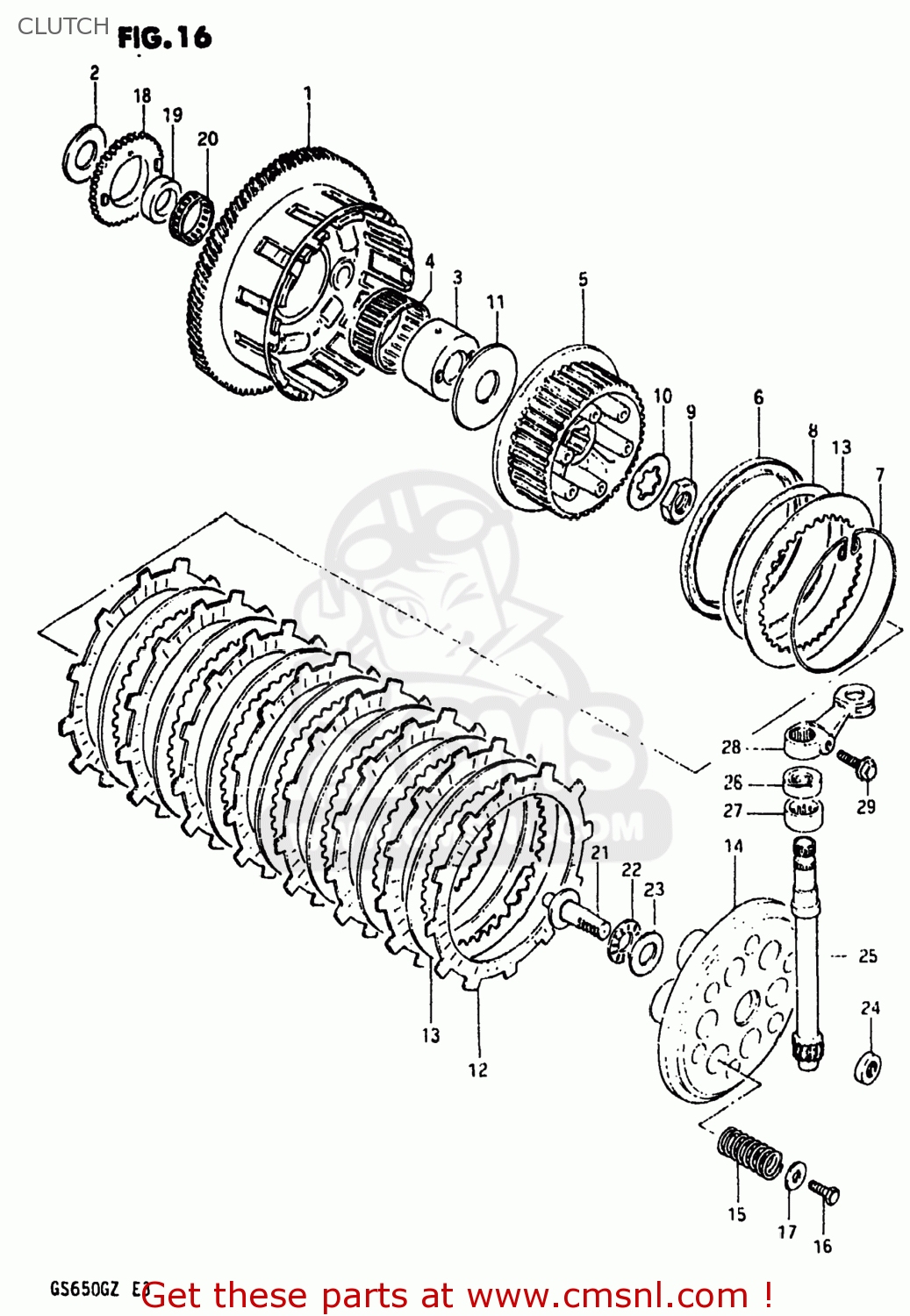

Clutch diagram GS650G 1981 (X) USA (E03)
CLUTCH GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120034201
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 292.00
2
0916025023
ref: 2
09160-25055
WASHER
€ 9.50
3
2125149200
ref: 3
SPACER
€ 65.50
4
0926351001
ref: 4
09263-51002
BEARING
€ 37.00
5
2141145100
ref: 5
HUB,CLUTCH SLEEVE
€ 107.50
6
2147145101
ref: 6
SEAT,WAVE WASHER
€ 16.00
7
2148145100
ref: 7
RING,STOPPER
€ 5.00
8
0916400003
ref: 8
WASHER
€ 9.00
9
0914024004
ref: 9
09140-24007
NUT
€ 4.50
10
0916725007
ref: 10
WASHER,LOCK
€ 7.50
11
0916025022
ref: 11
WASHER(25X66X3.5)
€ 13.50
12
2144145100
ref: 12
PLATE,CLUTCH DRIVE (MCA)
€ 20.00
13
2145131000
ref: 13
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 9.00
14
2146245102
ref: 14
21462-12C00
DISC,CLUTCH PRESSURE
€ 146.50
15
0944019004
ref: 15
SPRING
€ 3.00
16
0110706168
ref: 16
01500-06167
BOLT, UPPER
€ 3.00
17
0916006020
ref: 17
09160-06066
WASHER
€ 2.00
18
1632149000
ref: 18
GEAR,ENG OIL PUMP DRIVE(NT:34)
€ 78.50
19
1632545001
ref: 19
SPACER,OIL PUMP DRIVE GEAR
€ 13.50
20
0926336002
ref: 20
BEARING(36X40X10)
€ 24.50
21
2316545101
ref: 21
23165-45102
RACK,CLUTCH RELEASE
€ 16.50
22
0926315003
ref: 22
BEARING(15X28X2)
€ 7.00
23
0916015015
ref: 23
09160-15045
WASHER
€ 4.00
24
0928510003
ref: 24
SEAL,OIL(10X16X5)
€ 6.00
25
2326149001
ref: 25
PINION,CLUTCH RELEASE
€ 28.00
26
0928512002
ref: 26
09285-12006
OIL SEAL
€ 7.00
27
0926315012
ref: 27
BEARING(15X22X12)
€ 11.50
28
2327134200
ref: 28
23271-34201
ARM,CLUTCH RELEASE
€ 26.50
29
0151706208
ref: 29
01550-06207
BOLT,REAR
€ 2.50
