FRONT CALIPERS (MODEL X)
GS650G 1981 (X) USA (E03)

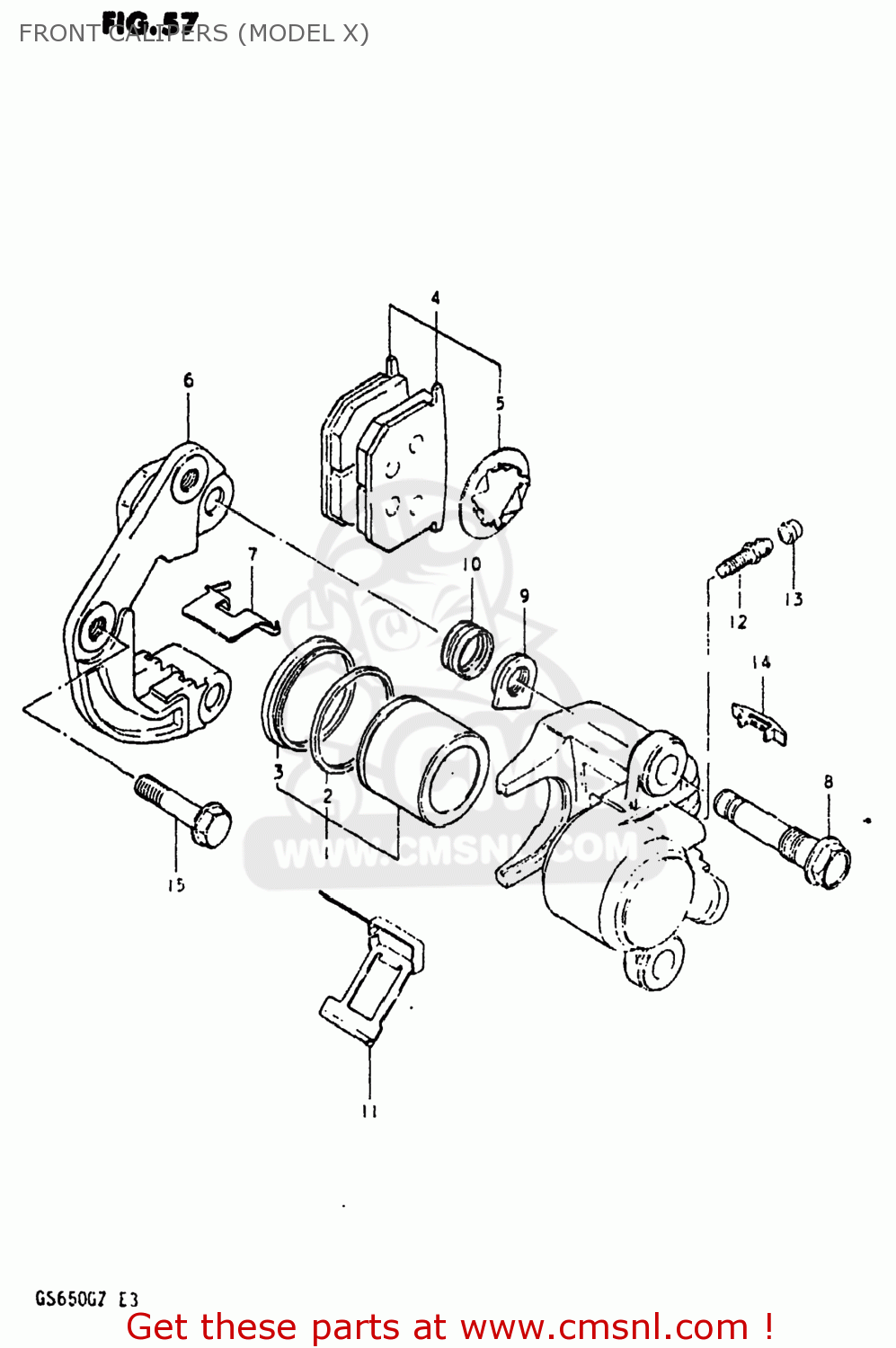

Front calipers (model x) diagram GS650G 1981 (X) USA (E03)
FRONT CALIPERS (MODEL X) GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5910049001
ref: 0-1
59100-49020
CARIPER ASSEMBLY,RIGHT
€ 187.50
0-2
5930049001
ref: 0-2
59300-49020
CALIPER ASSEMBLY,LEFT
€ 290.00
1
5930049810
ref: 1
PISTON SET
€ 52.50
2
5910734020
ref: 2
SEAL,PISTON
€ 6.50
3
5930849000
ref: 3
BOOT,PISTON
€ 9.00
4
5930049820
ref: 4
59300-49850
PAD & SHIM SET (MCA)
€ 91.00
5
5937149000
ref: 5
SHIM,PAD
€ 7.00
6-1
5915049000
ref: 6-1
59150-49001
HOLDER,CALIPER,RIGHT
€ 96.00
6-2
5935049000
ref: 6-2
59350-49001
HOLDER,CALIPER,LEFT
€ 83.50
7
5931649000
ref: 7
59316-49001
GUIDE,PAD
€ 11.00
8
5930549000
ref: 8
59305-49001
AXLE,CALIPER
€ 42.00
9
5931749000
ref: 9
NUT,CALIPER AXLE
€ 14.00
10
5931249000
ref: 10
BOOT
€ 30.00
11
5931549000
ref: 11
SPRING
€ 9.50
12
5912147050
ref: 12
59121-34020
BREATHER
€ 11.50
13
5247460020
ref: 13
55156-66310
CAP,BLEEDER PL
€ 6.00
14
5932449000
ref: 14
COVER,INDICATOR
€ 12.50
15
0910310019
ref: 15
BOLT(10X37)
€ 2.50
