REAR MASTER CYLINDER
GS650G 1981 (X) USA (E03)

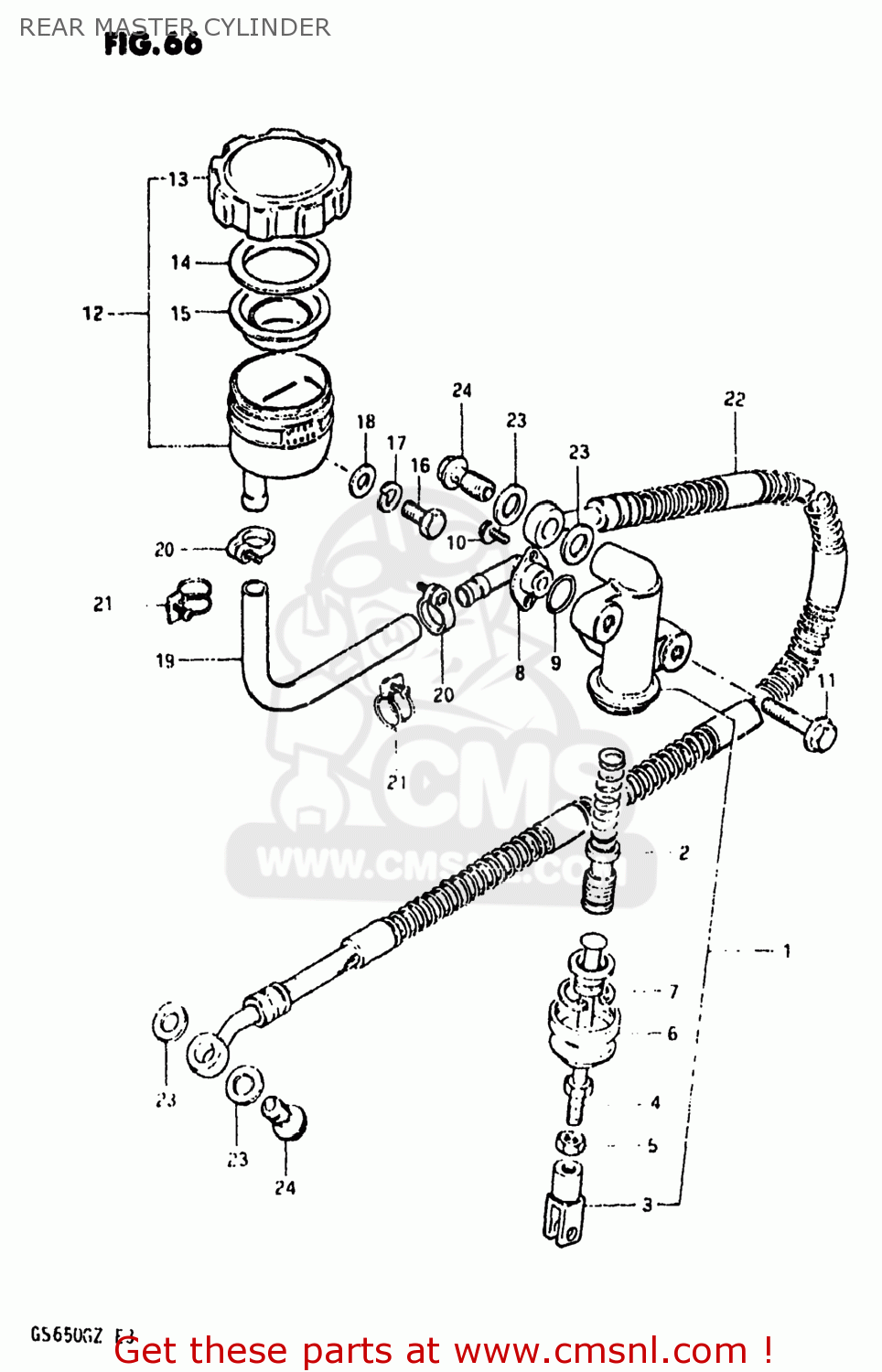

Rear master cylinder diagram GS650G 1981 (X) USA (E03)
REAR MASTER CYLINDER GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6960034200
ref: 1-1
69600-34201
CYLINDER ASSEMBLY,REAR MASTER
€ 155.00
1-2
6960034201
ref: 1-2
CYLINDER ASSEMBLY,REAR MASTER
€ 155.00
2
6960034810
ref: 2
PISTON/CUP SET
€ 36.50
3-1
6969245001
ref: 3-1
69692-34300
YOKE
€ 11.00
3-2
6969234300
ref: 3-2
YOKE
€ 11.00
4-1
6967034200
ref: 4-1
69670-34201
ROD,PUSH
€ 13.50
4-2
6967034201
ref: 4-2
ROD,REAR MASTER CYLINDER
€ 13.50
5-1
0831012088
ref: 5-1
08310-00087
NUT
€ 2.00
5-2
6969334300
ref: 5-2
69693-05A00
NUT,MASTER CYLINDER
€ 1.50
6
6969145001
ref: 6
BOOT
€ 6.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
6967234200
ref: 8
CONNECTOR,HOSE
€ 0.00
9
6968634200
ref: 9
O RING
€ 3.50
10
6968834200
ref: 10
57465-17C00
SCREW
€ 1.50
11
0151708358
ref: 11
01550-08357
BOLT
€ 3.50
12
6974034230
ref: 12
69740-31D00
TANK ASSEMBLY,RESERVOIR
€ 27.50
13
5966933603
ref: 13
59669-07D00
CAP
€ 16.50
14
5966818441
ref: 14
PLATE,DIAPHRAGM
€ 3.50
15
5966718441
ref: 15
DIAPHRAGM
€ 8.50
16
0110706168
ref: 16
01500-06167
BOLT, UPPER
€ 3.00
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
18
0832221068
ref: 18
08322-01067
WASHER
€ 2.00
19
6973134200
ref: 19
HOSE,RESERVOIR TANK
€ 5.00
20
6973534200
ref: 20
CLAMP
€ 4.50
21
0940016302
ref: 21
09400-16304
CLAMP
€ 4.50
22
6948034201
ref: 22
HOSE,REAR BRAKE
€ 38.00
23
0916110005
ref: 23
09161-10009
WASHER
€ 2.00
24
0936010007
ref: 24
09360-10017
BOLT,UNION
€ 6.50
