TRANSMISSION
GS650G 1981 (X) USA (E03)

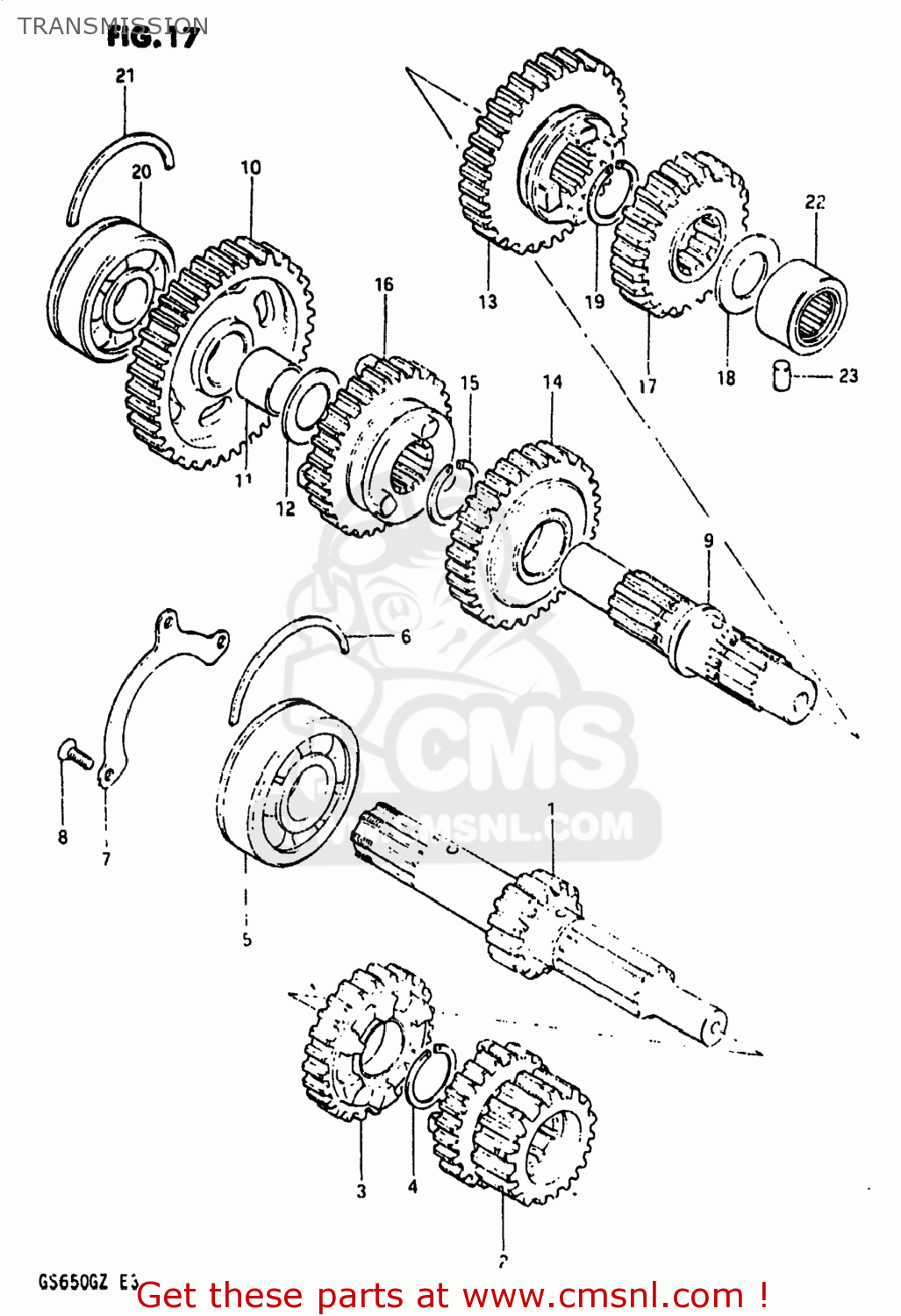

Transmission diagram GS650G 1981 (X) USA (E03)
TRANSMISSION GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412134201
ref: 1
SHAFT,COUNTER
€ 139.00
2
2422134200
ref: 2
24221-34201
GEAR,SECOND DRIVE
€ 118.50
3
2424034200
ref: 3
GEAR,FOURTH DRIVE
€ 86.50
4
0938025010
ref: 4
CIRCLIP
€ 3.00
5
0926225051
ref: 5
09262-25105
BEARING(25X62X17)
€ 59.50
6
0939062006
ref: 6
09390-62012
C-RING
€ 5.00
7
2474145000
ref: 7
RETAINER,CNTR SHAFT BEARING
€ 8.00
8
0212206168
ref: 8
02122-06167
SCREW
€ 2.00
9
2413134200
ref: 9
SHAFT,DRIVE
€ 118.50
10
2431134200
ref: 10
GEAR,FIRST DRIVEN
€ 115.00
11
0930020023
ref: 11
BUSHING
€ 0.00
12
0821120323
ref: 12
WASHER
€ 2.50
13
2432034200
ref: 13
GEAR,SECOND DRIVEN
€ 71.00
14
2433034200
ref: 14
GEAR,THIRD DRIVEN
€ 69.50
15
0938025010
ref: 15
CIRCLIP
€ 3.00
16
2434134200
ref: 16
GEAR,FOURTH DRIVEN
€ 112.00
17
2435134200
ref: 17
GEAR,REDUCTION(NT:24)
€ 110.50
18
2435934200
ref: 18
THRUST WASHER,REDUCTION
€ 3.50
19
0938025010
ref: 19
CIRCLIP
€ 3.00
20
0926220055
ref: 20
BALL BEARING 20X47X14
€ 20.00
21
0939047003
ref: 21
C RING
€ 3.00
22
0926320038
ref: 22
BEARING(20X34X16)
€ 30.50
23
0422107129
ref: 23
PIN
€ 1.50
