GS650G 1981 (X) USA (E03)

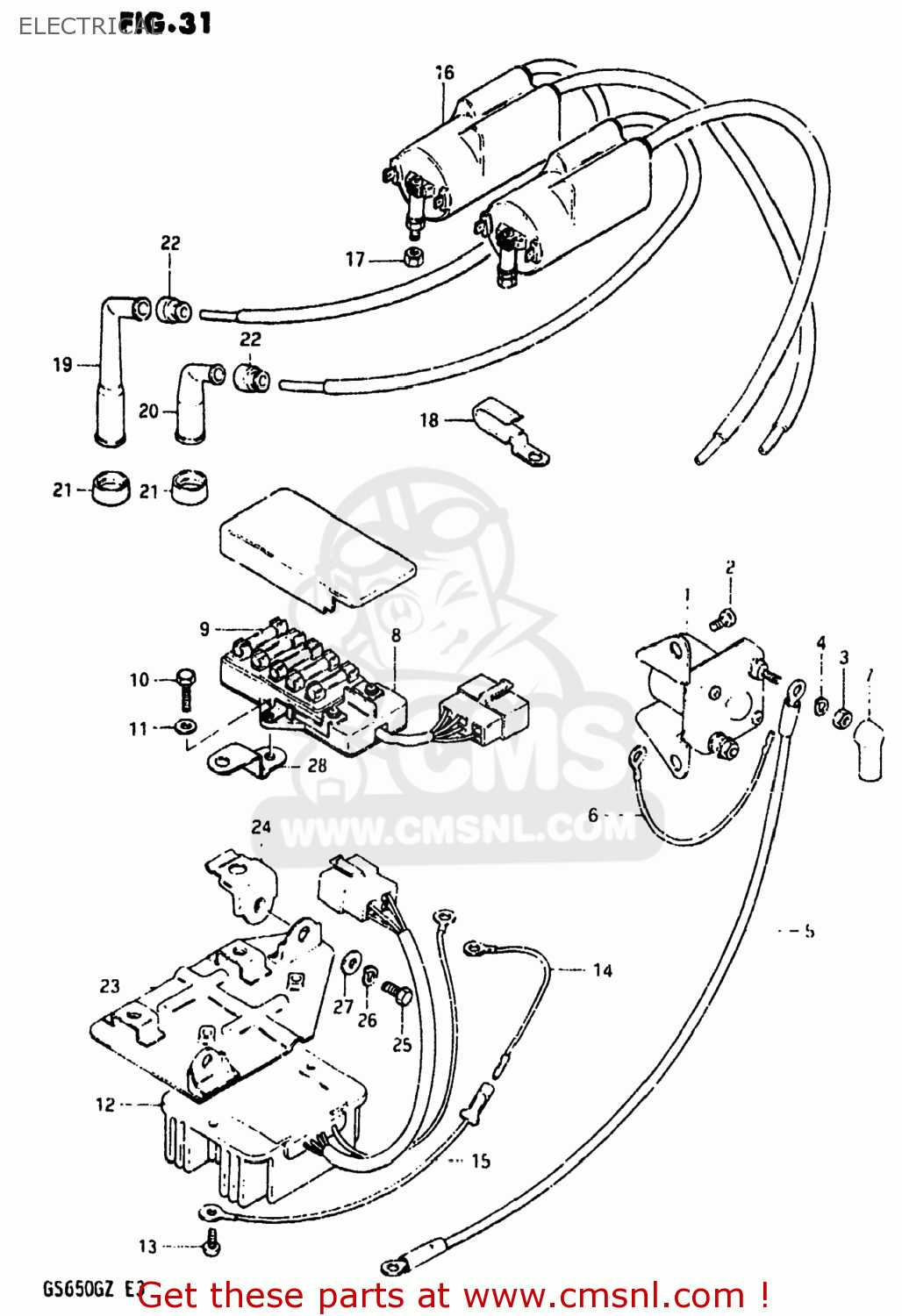

Electrical diagram GS650G 1981 (X) USA (E03)
ELECTRICAL GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206088
ref: 2
02112-06087
SCREW
€ 2.00
3
0831022068
ref: 3
08310-00067
NUT 6MM
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
3385034300
ref: 5
33850-48B00
WIRE,STARTER MOTOR LEAD
€ 50.00
6
3686227690
ref: 6
LEAD WIRE
€ 9.00
7
3186135100
ref: 7
31861-48B10
CAP,STARTER RELAY
€ 4.50
8
3674034200
ref: 8
36740-34X00
BOX ASSEMBLY,FUSE
€ 56.50
9-1
0948115001
ref: 9-1
FUSE(15A)
€ 3.00
9-2
0948110001
ref: 9-2
FUSE(10A)
€ 2.00
10
0110706168
ref: 10
01500-06167
BOLT, UPPER
€ 3.00
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
3280034210
ref: 12
32800-471V0
RECTIFIER ASSEMBLY
€ 306.50
13
0211206128
ref: 13
02112-06127
SCREW 6X12
€ 2.00
14
3686227690
ref: 14
LEAD WIRE
€ 9.00
15
3685134200
ref: 15
WIRE
€ 0.00
16
3341034210
ref: 16
33410-31311
COIL ASSEMBLY,IGNITION
€ 182.00
17
0831011068
ref: 17
08310-00067
NUT
€ 2.50
18
0940306307
ref: 18
CLAMP
€ 4.50
19
3351045010
ref: 19
CAP ASSY,SPARK PLUG
€ 23.00
20
3351043010
ref: 20
CAP,SPARK PLUG
€ 11.50
21
3354132410
ref: 21
33541-38210
SEAL,SPARK PLUG
€ 7.00
22
3354298000
ref: 22
33542-38B00
SEAL,SPARK PLU
€ 4.50
23
4741034200
ref: 23
PLATE,ELECTRIC PARTS H
€ 9.00
24
4742034200
ref: 24
BRACKET, PARTS HOLDER
€ 0.00
25
0110706128
ref: 25
01500-06127
BOLT
€ 2.00
26
0832121068
ref: 26
08321-01067
LOCK WASHER
€ 2.50
27
0832221068
ref: 27
08322-01067
WASHER
€ 2.00
28
4745434200
ref: 28
BRACKET
€ 6.50
