REAR WHEEL
GS650G 1981 (X) USA (E03)

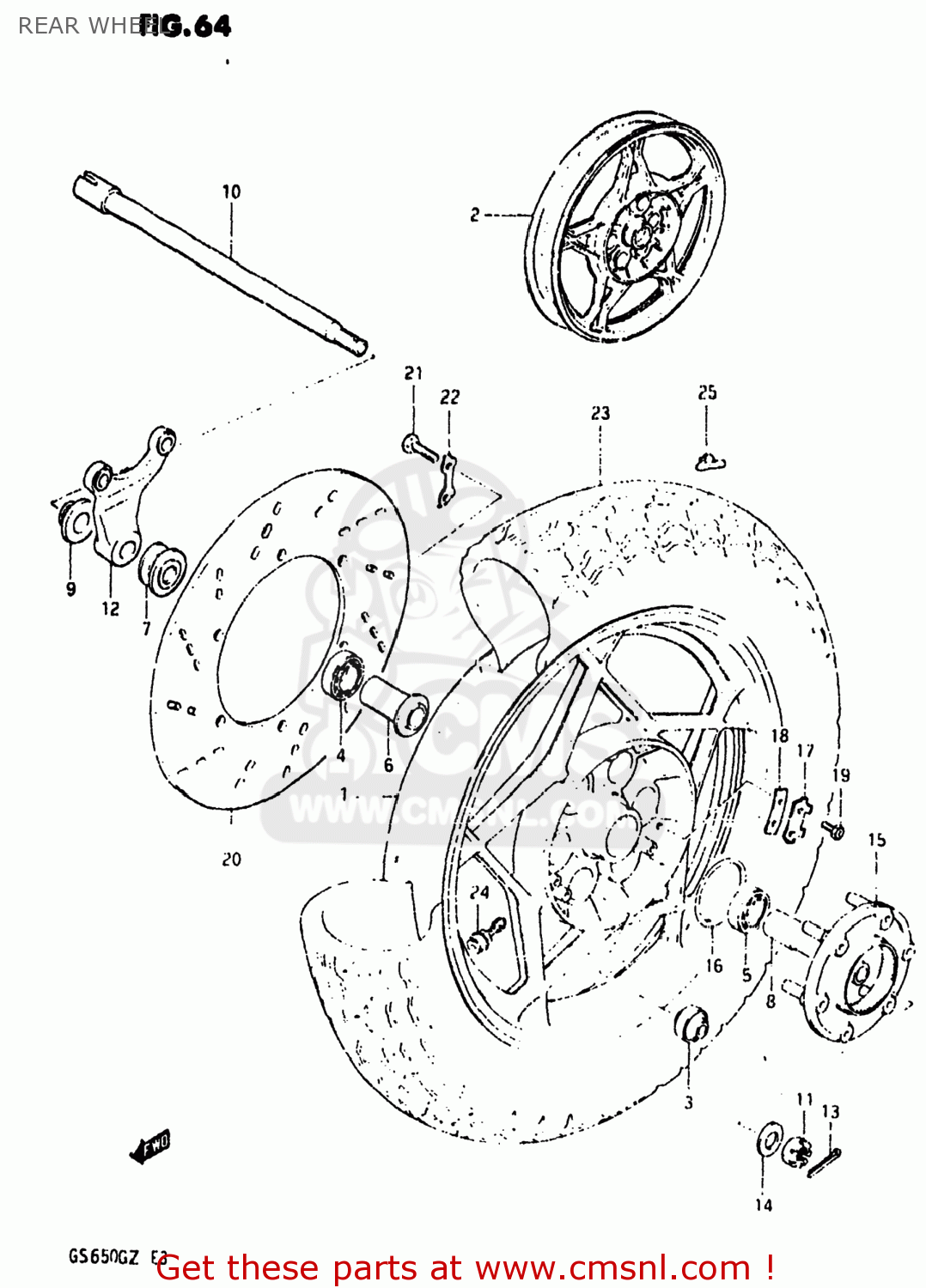

Rear wheel diagram GS650G 1981 (X) USA (E03)
REAR WHEEL GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6410034840
ref: 1
64100-34832-12U
WHEEL SET,REAR
€ 223.50
2
6410049810291
ref: 2
CASTING WHEEL,REAR 2.50
€ 559.00
3
0931912019
ref: 3
BUSH
€ 10.50
4
0812363037
ref: 4
BEARING
€ 16.00
5
0814363037
ref: 5
BEARING
€ 23.00
6
6473034200
ref: 6
SPACER,REAR HUB BEARING
€ 0.00
7-1
6474047001
ref: 7-1
64740-47002
SPACER,REAR AXLE
€ 12.50
7-2
6474047010
ref: 7-2
64740-47011
SPACER,REAR AXLE
€ 11.50
8
6477234200
ref: 8
64772-34201
SPACER,REAR AXLE,LEFT
€ 14.50
9
6474134300
ref: 9
64741-34301
SPACER,REAR AXLE,RIGHT
€ 6.50
10
6471134200
ref: 10
AXLE,REAR
€ 0.00
11
0914116001
ref: 11
NUT
€ 6.50
12
6972147001
ref: 12
BRACKET,RR,CALIPER
€ 27.50
13
0411140308
ref: 13
04111-4030A
PIN,COTTER
€ 1.50
14
0916016025
ref: 14
WASHER(16.5X36X3.2)
€ 2.50
15
6468045112
ref: 15
64680-45113
JOINT ASSEMBLY,REAR HUB DRUM
€ 181.50
16
0928065003
ref: 16
O RING(D:2.1,ID:65)
€ 2.50
17
6467645114
ref: 17
09169-06030
WASHER (T:1.0)
€ 2.00
18
6467745110
ref: 18
WASHER,THRUST(T:1.6)
€ 2.50
19
0911906049
ref: 19
BOLT(6X16)
€ 1.50
20
6921134250
ref: 20
DISC,RR BRAKE
€ 716.00
21
0910008140
ref: 21
BOLT(8X25)
€ 2.00
22
0916908027
ref: 22
09169-08030-XC0
WASHER
€ 41.00
23
6510034330
ref: 23
TIRE
€ 0.00
24
5522045100
ref: 24
43130-24A40
VALVE ASSEMBLY,WHEEL RIM,J
€ 15.50
25-1
5541145100
ref: 25-1
55412-17G00
BALANCER,WHEEL
€ 7.00
25-2
5541245100
ref: 25-2
BALANCER,WHEEL
€ 4.00
