CAM SHAFT - VALVE
GS650G 1981 (X) USA (E03)

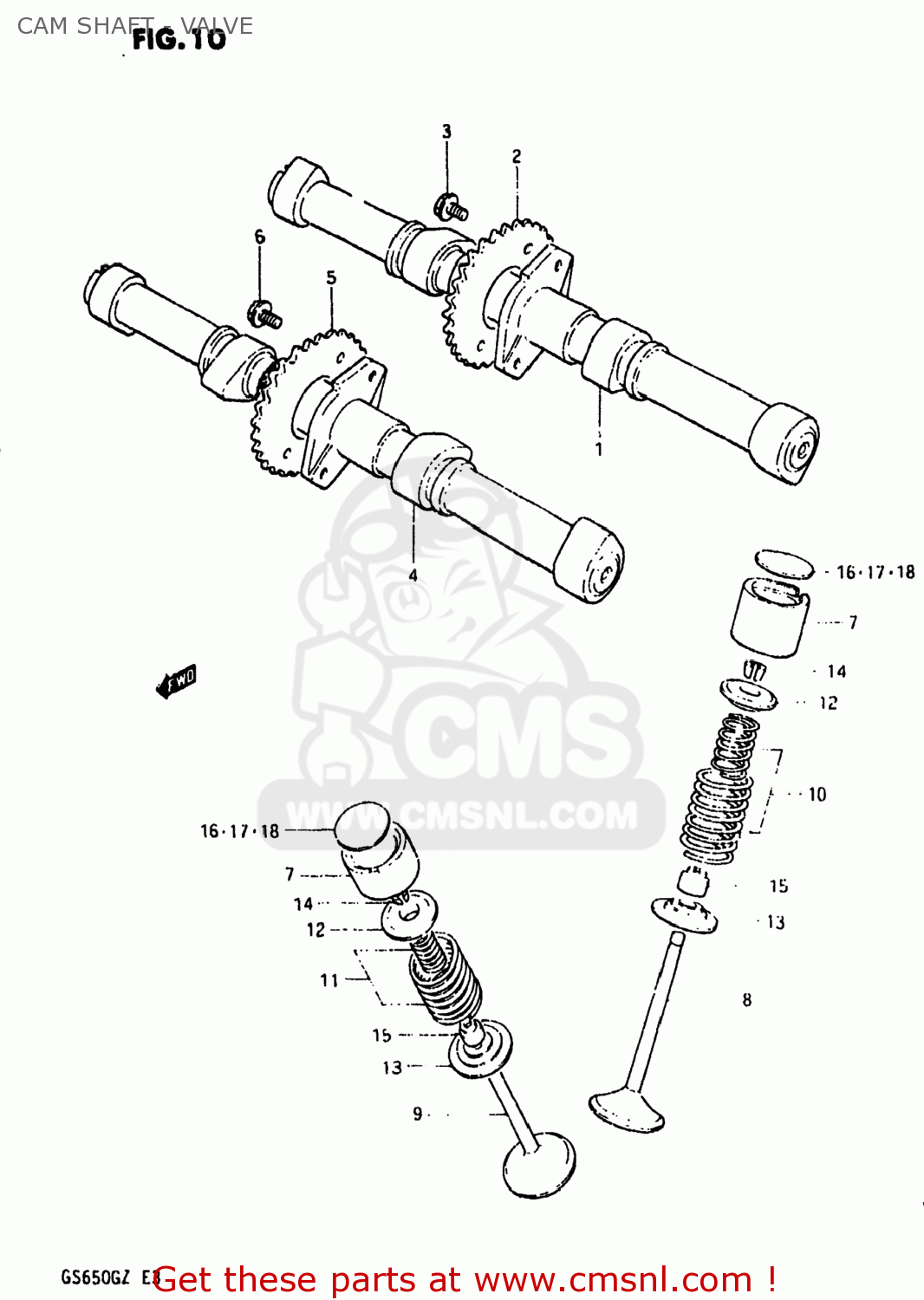

Cam shaft - valve diagram GS650G 1981 (X) USA (E03)
CAM SHAFT - VALVE GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271134202
ref: 1
CAMSHAFT,INTAKE
€ 180.00
2
1274134201
ref: 2
SPROCKET,INTAKE CAMSHAFT
€ 35.50
3
0910307001
ref: 3
BOLT(7X11)
€ 2.00
4
1272134202
ref: 4
CAMSHAFT,EXHAUST
€ 241.00
5
1275134201
ref: 5
12751-34202
SPROCKET,EXHAUST CAMSHAFT
€ 34.50
6
0910307001
ref: 6
BOLT(7X11)
€ 2.00
7
1289145000
ref: 7
12891-45001
TAPPET
€ 45.00
8
1291134200
ref: 8
12911-34210
VALVE,INTAKE
€ 28.00
9
1291234201
ref: 9
12912-34203
VALVE,EXHAUST
€ 42.50
10
1290034810
ref: 10
12920-44110
SHIM,TAPPET
€ 13.50
11-1
1290034810
ref: 11-1
12920-44110
SHIM,TAPPET
€ 13.50
11-2
1290034820
ref: 11-2
12920-34210
SHIM,TAPPET
€ 13.00
12
1293145000
ref: 12
12931-45001
RETAINER,VALVE SPRING
€ 6.00
13
1293345001
ref: 13
SEAT,VALVE SPRING
€ 5.50
14
1293245010
ref: 14
COTTER VALVE
€ 2.50
15
0928907002
ref: 15
SEAL,OIL(7X14.4X9)
€ 3.00
16-1
1289245000
ref: 16-1
12892-45000-215
SHIM,TAPPET
€ 17.00
16-2
1289245001
ref: 16-2
12892-45000-220
SHIM,TAPPET
€ 16.50
16-3
1289245002
ref: 16-3
12892-45000-225
SHIM,TAPPET
€ 17.00
16-4
1289245003
ref: 16-4
12892-45000-230
SHIM,TAPPET
€ 16.00
16-5
1289245004
ref: 16-5
12892-45000-235
SHIM,TAPPET
€ 16.50
16-6
1289245005
ref: 16-6
12892-45000-240
SHIM,TAPPET
€ 17.00
16-7
1289245006
ref: 16-7
12892-45000-245
SHIM,TAPPET
€ 17.00
16-8
1289245007
ref: 16-8
12892-45000-250
SHIM,TAPPET
€ 16.00
16-9
1289245008
ref: 16-9
12892-45000-255
SHIM,TAPPET
€ 16.50
17-1
1289245009
ref: 17-1
12892-45000-260
SHIM,TAPPET
€ 16.00
17-1
1289245018
ref: 17-1
12892-45000-305
SHIM,TAPPET
€ 16.50
17-2
1289245010
ref: 17-2
12892-45000-265
SHIM,TAPPET
€ 17.00
17-2
1289245019
ref: 17-2
12892-45000-310
SHIM,TAPPET
€ 17.00
17-3
1289245011
ref: 17-3
12892-45000-270
SHIM,TAPPET
€ 17.00
17-4
1289245012
ref: 17-4
12892-45000-275
SHIM,TAPPET
€ 17.00
17-5
1289245013
ref: 17-5
12892-45000-280
SHIM,TAPPET
€ 16.50
17-6
1289245014
ref: 17-6
12892-45000-285
SHIM,TAPPET
€ 17.00
17-7
1289245015
ref: 17-7
12892-45000-290
SHIM,TAPPET
€ 17.00
17-8
1289245016
ref: 17-8
12892-45000-295
SHIM,TAPPET
€ 17.00
17-9
1289245017
ref: 17-9
12892-45000-300
SHIM,TAPPET
€ 17.00
19
1280045810
ref: 19
12800-45811
SHIM SET,TAPPET
€ 1,227.00
19
1280045810
ref: 19
12800-45811
SHIM SET,TAPPET
€ 1,227.00
20
9900069480
ref: 20
99000-69521
CASE
€ 152.50
