MUFFLER
GS650G 1981 (X) USA (E03)

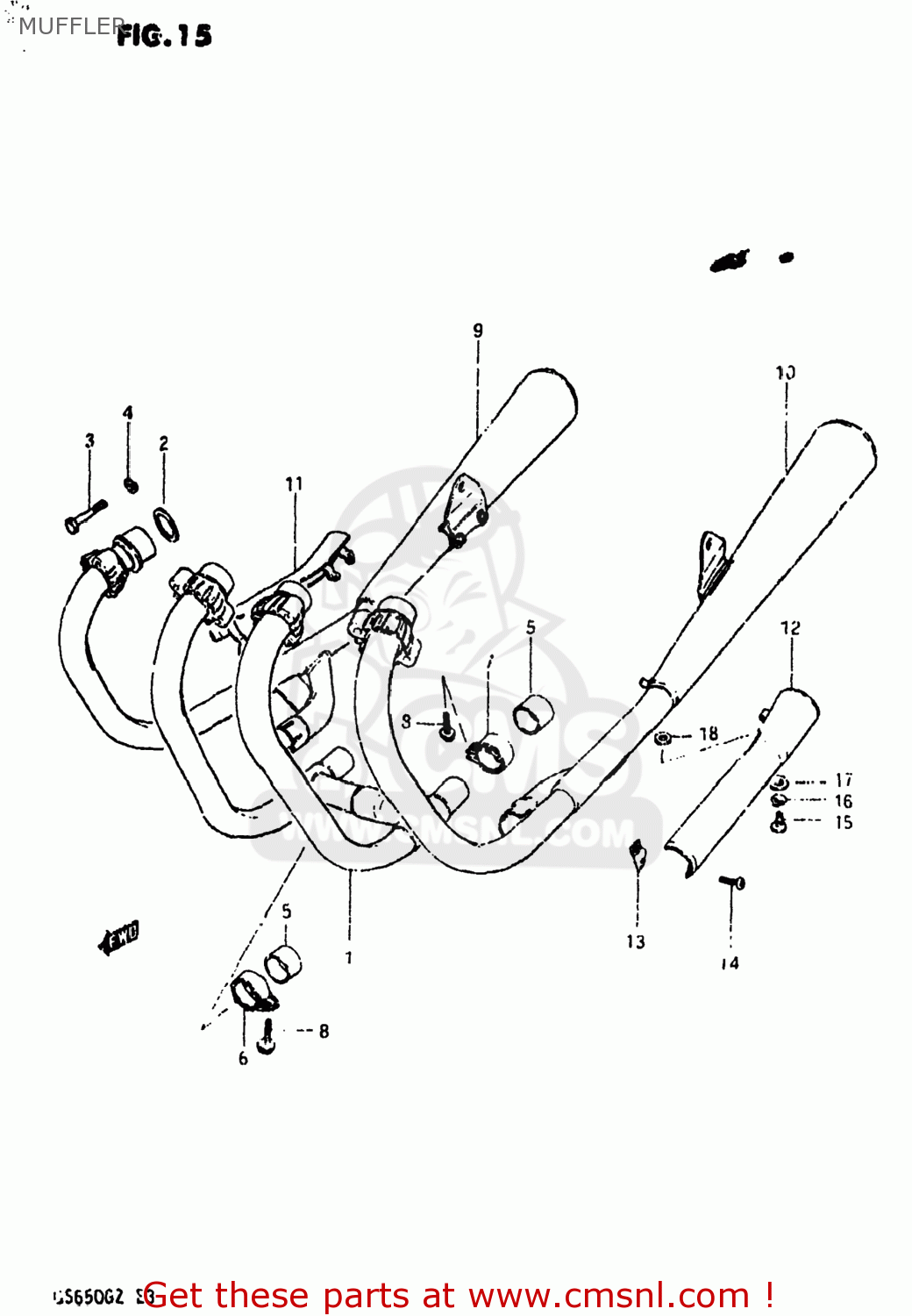

Muffler diagram GS650G 1981 (X) USA (E03)
MUFFLER GS650G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410034200
ref: 1
PIPE,EXHAUST CTR
€ 214.00
2
1418105010
ref: 2
14181-18C00
GASKET,EXHAUST PIPE (NAS)
€ 6.50
3
0110708408
ref: 3
01500-0840A
BOLT 8X40
€ 3.00
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
1477147010
ref: 5
14771-47020-H17
CONNECTOR,MUFFLER
€ 35.00
6
1445934200
ref: 6
CLAMP,MUFFLER CONNECTOR,R
€ 13.00
7
1446934200
ref: 7
CLAMP,MUFFLER CONNECTOR,L
€ 13.00
8
0151708258
ref: 8
01550-08257
BOLT
€ 2.50
9-1
1430134200
ref: 9-1
14301-34203-H01
MUFFLER ASSEMBLY
€ 306.00
9-2
1430134201
ref: 9-2
14301-34203-H01
MUFFLER ASSEMBLY
€ 306.00
10-1
1430234200
ref: 10-1
14302-34203-H01
MUFFLER ASSEMBLY
€ 289.00
10-2
1430234201
ref: 10-2
14302-34203-H01
MUFFLER ASSEMBLY
€ 289.00
11
1478034201
ref: 11
COVER,MUFFLER,RIGHT
€ 36.00
12
1479034201
ref: 12
COVER,MUFFLER,LEFT
€ 33.00
13
1478534200
ref: 13
CLAMP,MUFFLER COVER
€ 8.00
14
0211205208
ref: 14
02112-05207
SCREW 5X20
€ 3.00
15
0211206128
ref: 15
02112-06127
SCREW 6X12
€ 2.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
18
0916806005
ref: 18
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
