CARBURETOR
GS750L 1979 (N) USA (E03)

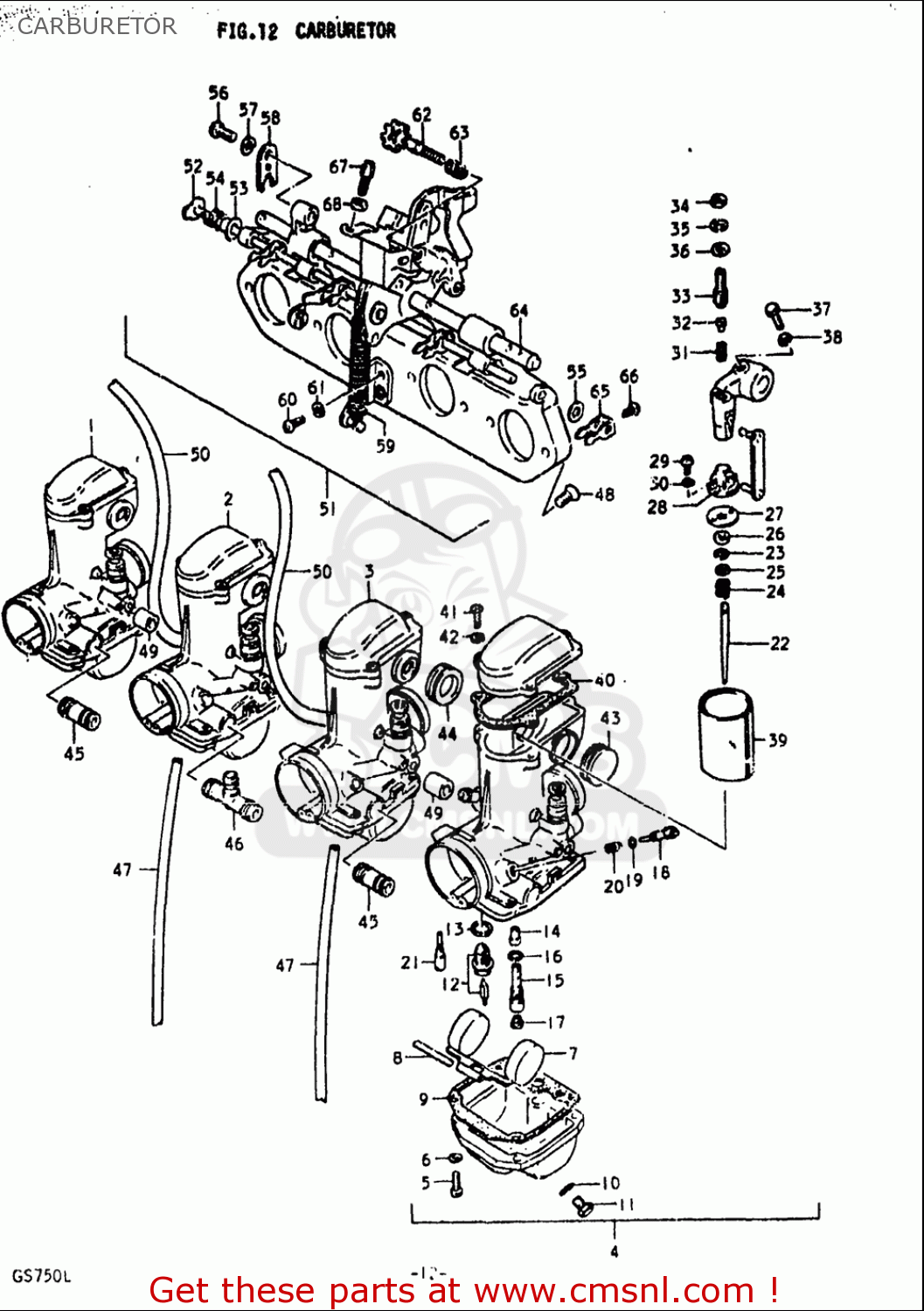

Carburetor diagram GS750L 1979 (N) USA (E03)
CARBURETOR GS750L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5
0211204163
ref: 5
SCREW 4X16
€ 1.00
6
0832101043
ref: 6
WASHER,LOCK
€ 2.00
7
1325243010
ref: 7
FLOAT
€ 41.00
8
1325401010
ref: 8
PIN,FLOAT
€ 3.00
9
1325143010
ref: 9
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
10
1324643010
ref: 10
O RING
€ 4.00
11
1324745010
ref: 11
SCREW
€ 7.50
12
1337018111
ref: 12
VALVE ASSY,NEEDLE
€ 51.50
13
1339258600
ref: 13
GASKET,VALVE SEAT (NAS)
€ 2.00
15
1338545010
ref: 15
PIPE,BLEEDER
€ 36.00
16
1324643010
ref: 16
O RING
€ 4.00
17
0949120012
ref: 17
JET,MAIN(102.5)
€ 8.50
18
1326932400
ref: 18
SCREW,PILOT AIR
€ 11.50
19
1329533010
ref: 19
O RING
€ 4.50
20
1326801010
ref: 20
SPRING
€ 3.50
21
0949215005
ref: 21
JET,PILOT
€ 15.00
22
1338345030
ref: 22
NEEDLE,JET
€ 19.50
23
1339410010
ref: 23
CLIP
€ 4.50
24
1338847010
ref: 24
SPRING
€ 7.00
25
1338247010
ref: 25
WASHER,JET NEEDLE
€ 3.00
26
1338747010
ref: 26
RING
€ 7.50
29
0211203163
ref: 29
SCREW
€ 1.50
30
0916203001
ref: 30
WASHER,LOCK
€ 1.50
34
0831000057
ref: 34
NUT
€ 2.50
35
0832101057
ref: 35
WASHER,LOCK
€ 2.00
36
0832201057
ref: 36
WASHER
€ 2.50
37
0150005163
ref: 37
BOLT
€ 1.50
38
0832101057
ref: 38
WASHER,LOCK
€ 2.00
40
1326643010
ref: 40
GASKET (NAS)
€ 7.00
41
0212204163
ref: 41
SCREW
€ 2.00
42
0832101043
ref: 42
WASHER,LOCK
€ 2.00
44
1355645010
ref: 44
SEAL
€ 15.50
48
0912606007
ref: 48
SCREW(6X14)
€ 2.50
49
0935260103600
ref: 49
HOSE(6X10X600)
€ 18.00
50
0935545855600
ref: 50
HOSE(4.5X8.5X600)
€ 14.00
53
1343249020
ref: 53
WASHER
€ 3.00
55
1361545010
ref: 55
WASHER,STARTER SHAFT
€ 3.50
56
0211205167
ref: 56
SCREW
€ 2.50
57
0832101057
ref: 57
WASHER,LOCK
€ 2.00
59
1357345010
ref: 59
SPRING,THROTTLE RETURN
€ 23.00
60
0211205167
ref: 60
SCREW
€ 2.50
61
0832101057
ref: 61
WASHER,LOCK
€ 2.00
66
1360531210
ref: 66
SCREW
€ 3.00
67
1357748110
ref: 67
ADJUSTER,CABLE
€ 8.00
68
1366116600
ref: 68
NUT
€ 5.00
