FRONT MASTER CYLINDER

GS750L 1979 (N) USA (E03)

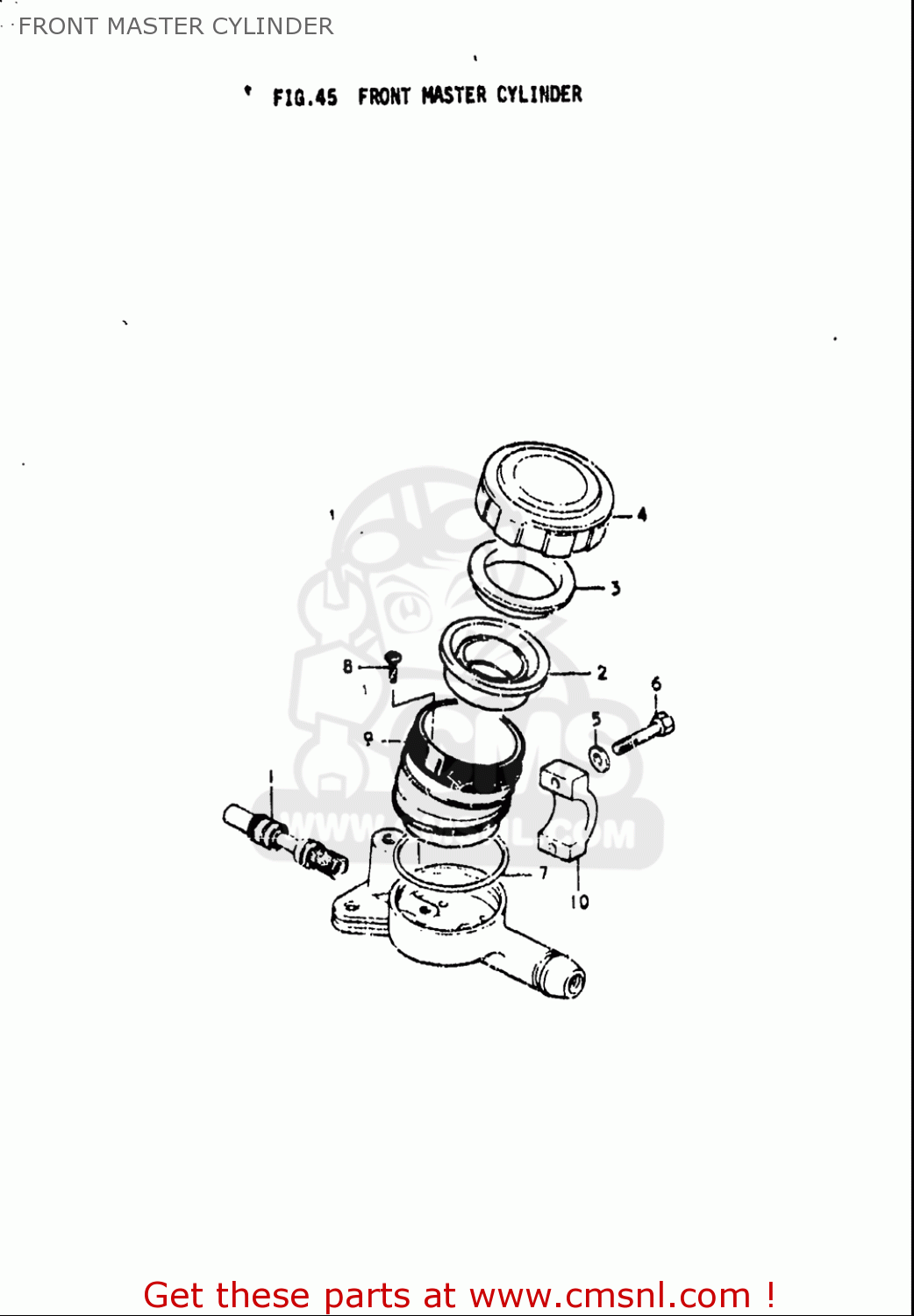

Front master cylinder diagram GS750L 1979 (N) USA (E03)

FRONT MASTER CYLINDER GS750L 1979 (N) USA (E03)

FRONT MASTER CYLINDER GS750L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960045811
ref: 1

PISTON & CUP SET

€ 73.50

2

5966718441
ref: 2

DIAPHRAGM

€ 8.50

3

5966818441
ref: 3

PLATE,DIAPHRAGM

€ 3.50

5

0832201067
ref: 5

WASHER

€ 2.00

6

0150006257
ref: 6

BOLT

€ 2.00

7

5968633600
ref: 7

O RING

€ 14.00

9

5968745050
ref: 9

RESERVOIR

€ 18.50
