GS750L 1979 (N) USA (E03)

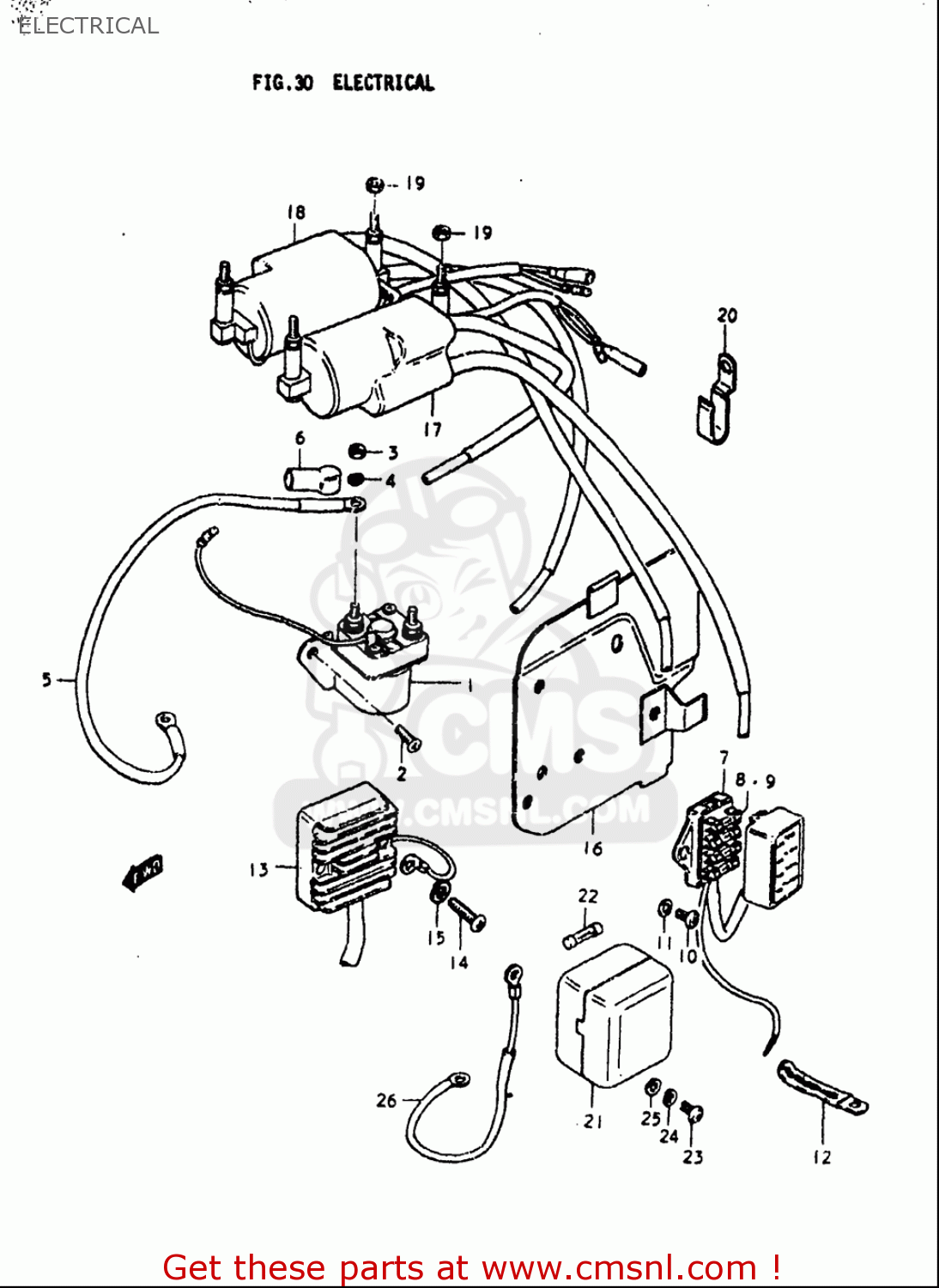

Electrical diagram GS750L 1979 (N) USA (E03)
ELECTRICAL GS750L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206107
ref: 2
SCREW
€ 1.50
3
0831000067
ref: 3
NUT
€ 2.50
4
0832101067
ref: 4
WASHER,LOCK
€ 2.50
6
3186148B10
ref: 6
CAP,STARTER MOTOR LEAD
€ 4.50
7
3674049X00
ref: 7
BOX ASSY,FUSE
€ 81.50
8
0948110001
ref: 8
FUSE(10A)
€ 2.00
9
0948115001
ref: 9
FUSE(15A)
€ 3.00
10
0211206127
ref: 10
SCREW
€ 2.00
11
0832201067
ref: 11
WASHER
€ 2.00
12
0940406432
ref: 12
CLAMP(L:65)
€ 2.50
13
3280049X50
ref: 13
RECTIFIER ASSY
€ 397.00
14
0211206107
ref: 14
SCREW
€ 1.50
15
0832101067
ref: 15
WASHER,LOCK
€ 2.50
17
3341045012
ref: 17
COIL ASSY,IGNITION
€ 152.50
18
3341045012
ref: 18
COIL ASSY,IGNITION
€ 152.50
19
0831000067
ref: 19
NUT
€ 2.50
20
0940306307
ref: 20
CLAMP
€ 4.50
22
0948110001
ref: 22
FUSE(10A)
€ 2.00
23
0211206167
ref: 23
SCREW
€ 2.50
24
0832101067
ref: 24
WASHER,LOCK
€ 2.50
25
0832201067
ref: 25
WASHER
€ 2.00
