OIL PAN

GS750L 1979 (N) USA (E03)

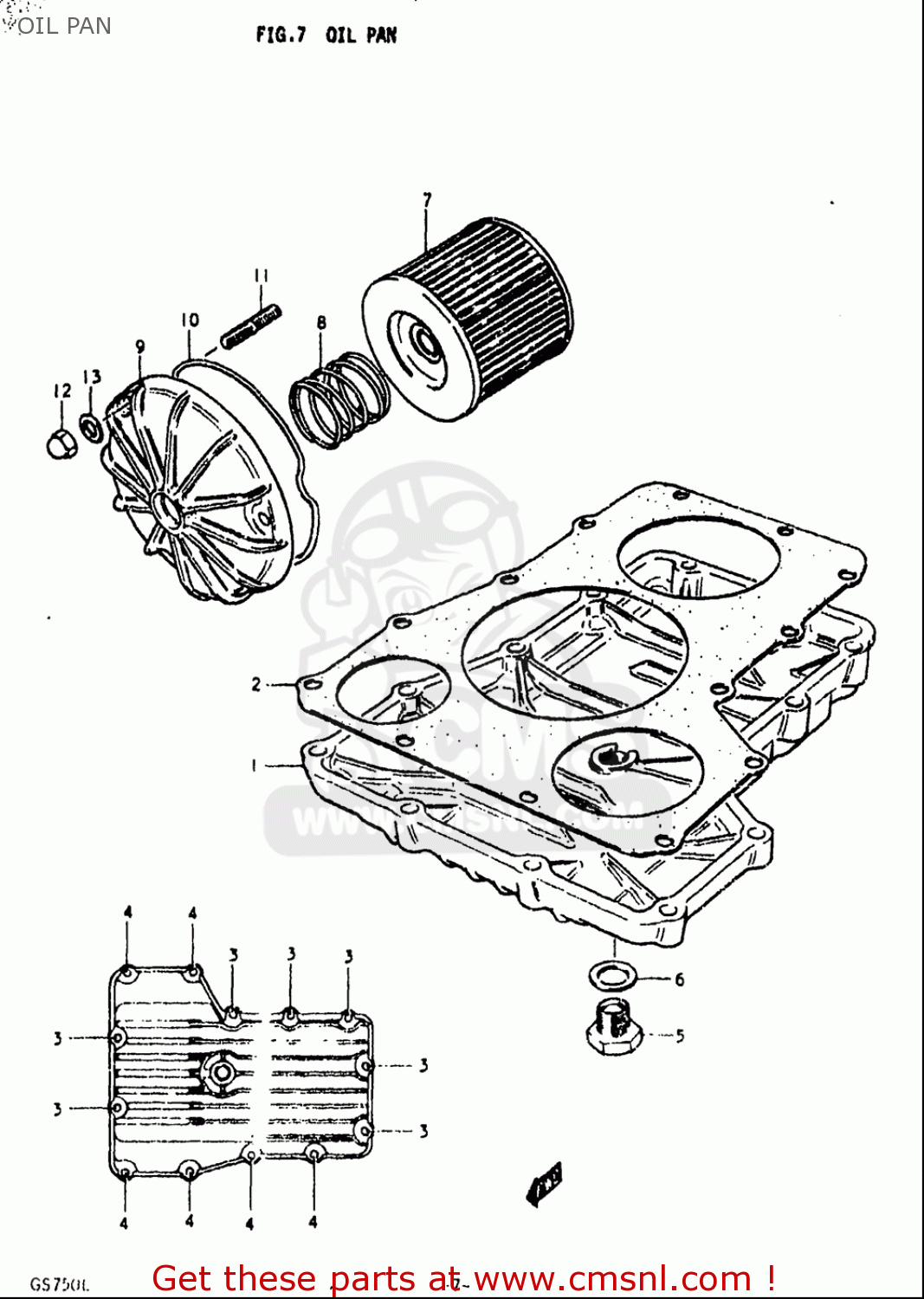

Oil pan diagram GS750L 1979 (N) USA (E03)

OIL PAN GS750L 1979 (N) USA (E03)

OIL PAN GS750L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

1148945001H17
ref: 2

GASKET,OIL PAN (NAS)

€ 15.50

3

0155006307
ref: 3

BOLT

€ 2.00

4

0155006257
ref: 4

BOLT

€ 2.50

5

0924714002
ref: 5

PLUG(MAGNETO)

€ 5.00

6

0916814004
ref: 6

GASKET(14X19.2X2) (NAS)

€ 2.50

7

1651045040
ref: 7

FILTER ASSY,ENGINE OIL

€ 7.50

8

0944032004
ref: 8

SPRING

€ 13.50

10

1651845000
ref: 10

O RING,OIL FILTER CHAMBER CAP

€ 7.50

11

014210620A
ref: 11

BOLT,STUD

€ 2.50

12

0831310067
ref: 12

NUT

€ 2.00

13

0832201067
ref: 13

WASHER

€ 2.00
