REAR FENDER
GS750L 1979 (N) USA (E03)

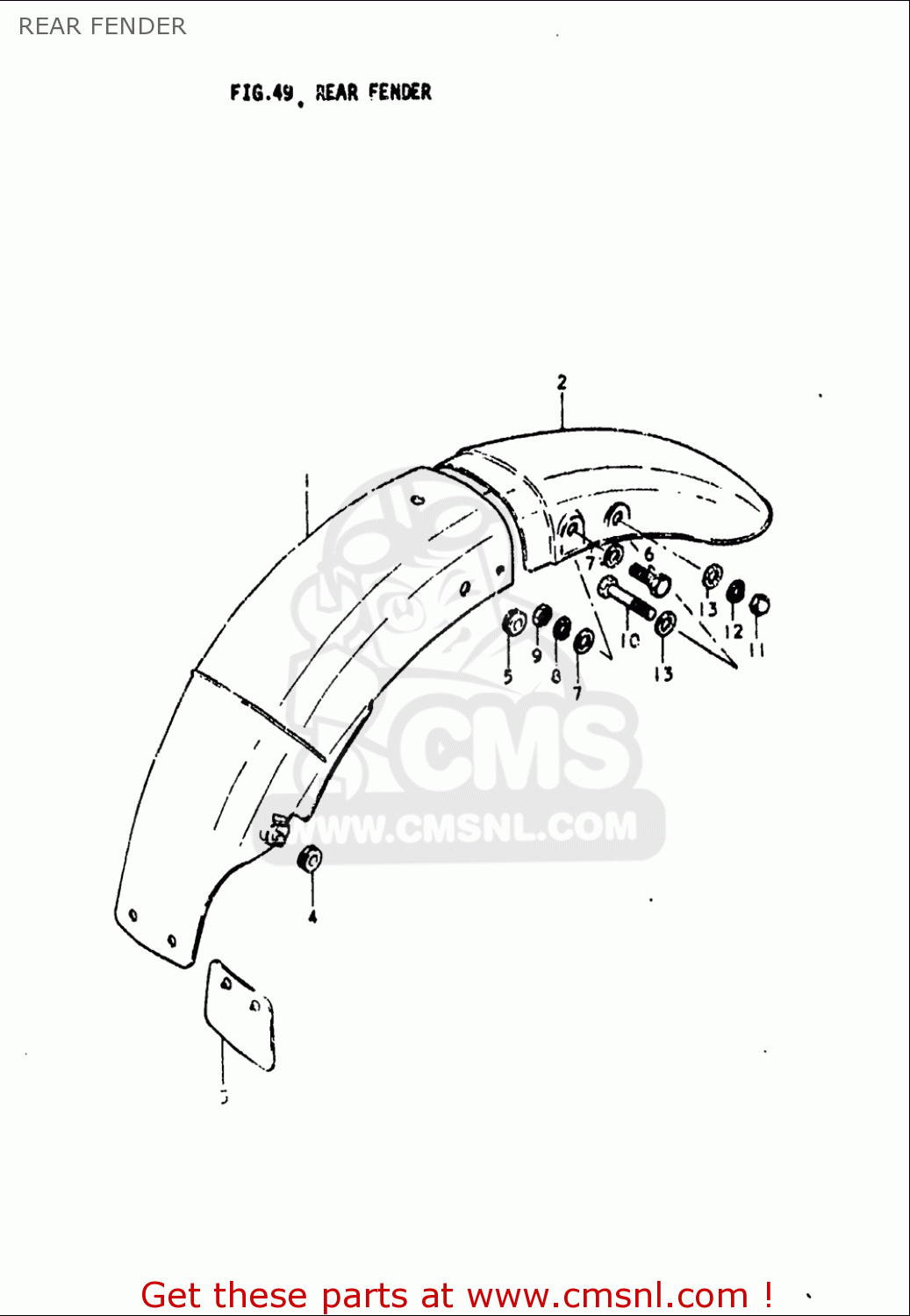

Rear fender diagram GS750L 1979 (N) USA (E03)
REAR FENDER GS750L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3
6341131900
ref: 3
GUIDE,RR FENDER MUD
€ 8.00
4
0932008013
ref: 4
CUSHION
€ 4.00
5
0932006504
ref: 5
CUSHION
€ 4.00
6
0150008163
ref: 6
BOLT
€ 2.00
7
0832201087
ref: 7
WASHER
€ 2.00
8
0832101087
ref: 8
WASHER,LOCK
€ 2.00
9
0831000087
ref: 9
NUT
€ 2.00
10
0120408357
ref: 10
BOLT
€ 3.50
11
0831000087
ref: 11
NUT
€ 2.00
12
0832101087
ref: 12
WASHER,LOCK
€ 2.00
13
0832201087
ref: 13
WASHER
€ 2.00
