HEADLAMP

GS750L 1979 (N) USA (E03)

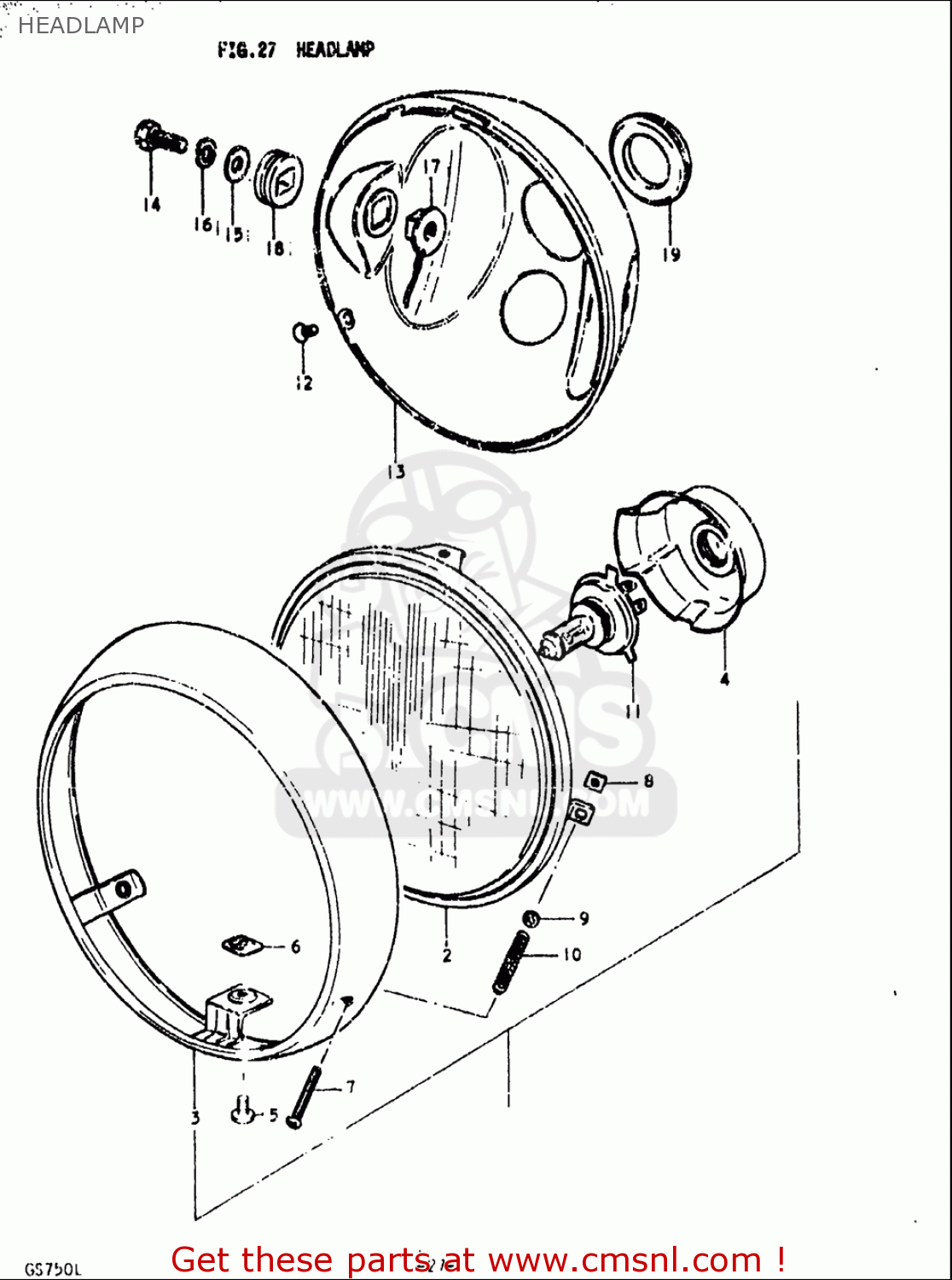

Headlamp diagram GS750L 1979 (N) USA (E03)

HEADLAMP GS750L 1979 (N) USA (E03)

HEADLAMP GS750L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

3511145231
ref: 3

RIM

€ 50.00

5

0211205087
ref: 5

SCREW

€ 2.00

6

3515548510
ref: 6

NUT

€ 2.00

7

3515145230
ref: 7

SCREW

€ 3.50

8

3513545600
ref: 8

NUT

€ 3.00

9

3515727630
ref: 9

WASHER

€ 2.50

10

3515448510
ref: 10

SPRING

€ 2.50

11

0947112060
ref: 11

BULB(12V60/55W,H4)

€ 8.00

12

0212205107
ref: 12

SCREW

€ 1.00

13

5181033600
ref: 13

HOUSING,HEADLAMP

€ 72.00

14

0120408207
ref: 14

BOLT

€ 3.00

15

0832201087
ref: 15

WASHER

€ 2.00

16

0832101087
ref: 16

WASHER,LOCK

€ 2.00

17

5182136200
ref: 17

SPACER,HEADLAMP HOUSING

€ 7.50

18

5182727302
ref: 18

CUSHION,HEADLAMP HOUSING

€ 3.00

19

5184531031
ref: 19

GROMMET,HEADLAMP HOUSING

€ 4.00
