CRANKCASE LH COVER
GS750L 1979 (N) USA (E03)

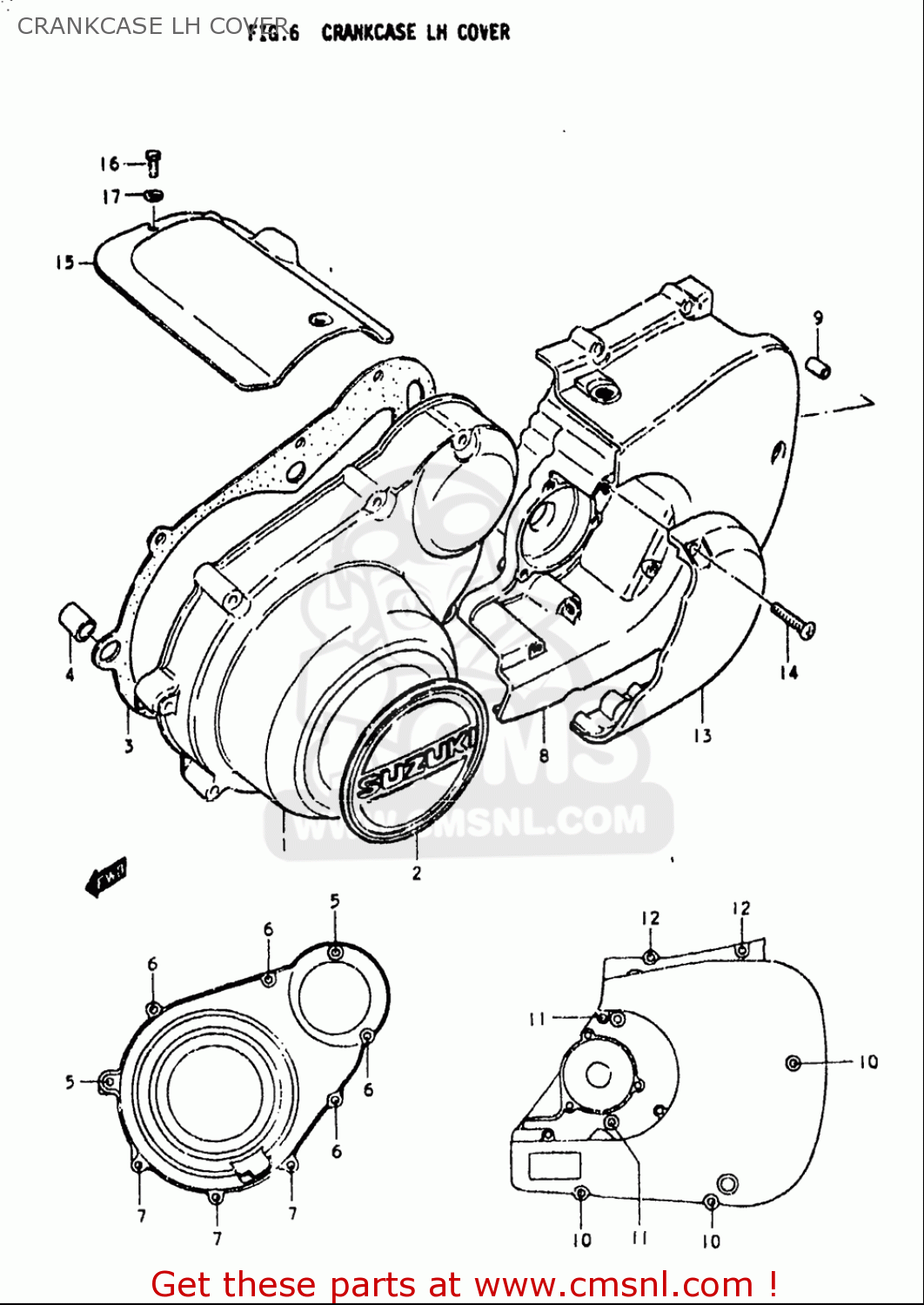

Crankcase lh cover diagram GS750L 1979 (N) USA (E03)
CRANKCASE LH COVER GS750L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1135145001
ref: 1
COVER,MAGNETO
€ 204.00
2
6823345200
ref: 2
EMBLEM,MAGNETO COVER
€ 20.50
3
1148345000H17
ref: 3
GASKET,MAGNETO COVER (NAS)
€ 12.50
4
0421113189
ref: 4
PIN
€ 2.50
5
0211206457
ref: 5
SCREW
€ 2.00
6
0211206407
ref: 6
SCREW
€ 2.00
7
0211206357
ref: 7
SCREW
€ 2.50
9
0421109129
ref: 9
PIN
€ 2.00
10
0211206857
ref: 10
SCREW
€ 2.50
11
0211206457
ref: 11
SCREW
€ 2.00
12
0211206257
ref: 12
SCREW
€ 2.00
14
0211205253
ref: 14
SCREW
€ 1.50
15
1138249002
ref: 15
COVER,STARTER MOTOR
€ 43.00
16
0150005103
ref: 16
BOLT
€ 1.50
17
0832201057
ref: 17
WASHER
€ 2.50
