GENERATOR

GS750L 1979 (N) USA (E03)

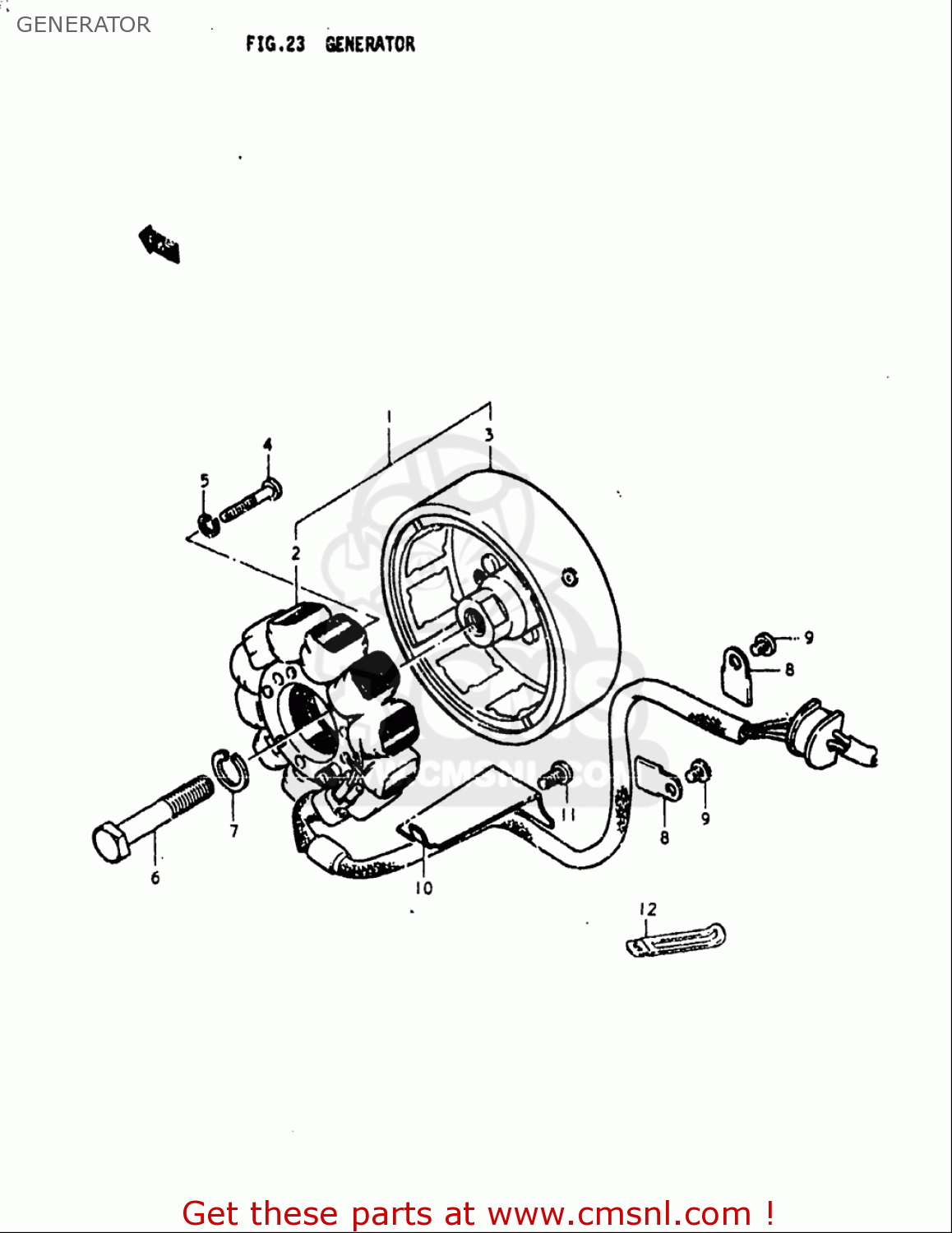

Generator diagram GS750L 1979 (N) USA (E03)

GENERATOR GS750L 1979 (N) USA (E03)

GENERATOR GS750L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140145011
ref: 1

STARTER ASSY

€ 372.50

2

3140145011
ref: 2

STARTER ASSY

€ 372.50

3

3140245011
ref: 3

ROTOR ASSEMBLY

€ 348.50

4

0211205303
ref: 4

SCREW

€ 1.50

5

0832101057
ref: 5

WASHER,LOCK

€ 2.00

6

0150012457
ref: 6

BOLT

€ 5.50

7

0832101127
ref: 7

WASHER,LOCK

€ 2.50

8

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

9

0912505122
ref: 9

SCREW(5X6)

€ 4.00

10

3149845000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 2.00

11

0211206107
ref: 11

SCREW

€ 1.50

12

0940406434
ref: 12

CLAMP(L:80 T:1.0)

€ 3.00
