CYLINDER

GS750L 1979 (N) USA (E03)

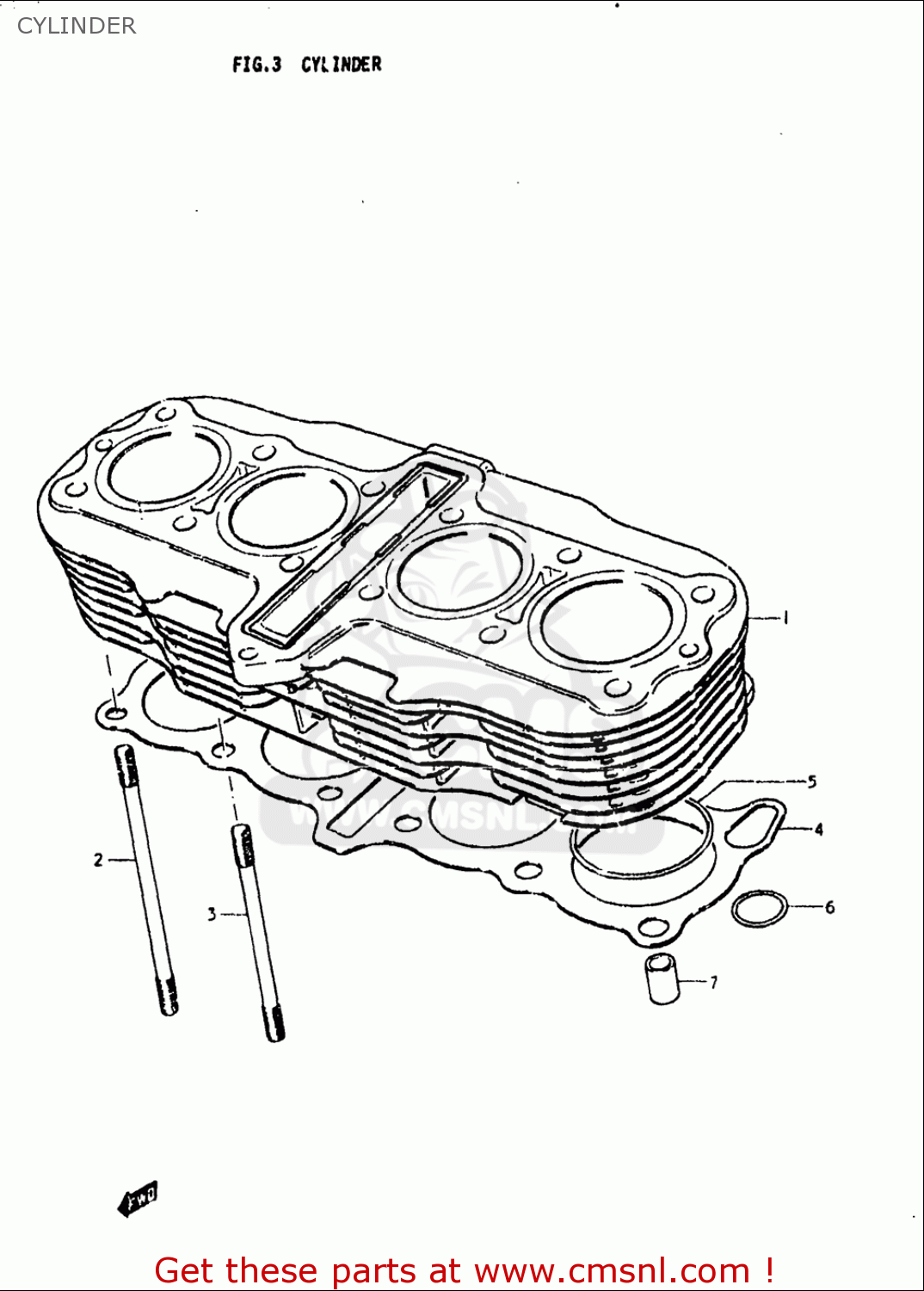

Cylinder diagram GS750L 1979 (N) USA (E03)

CYLINDER GS750L 1979 (N) USA (E03)

CYLINDER GS750L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810112
ref: 3

BOLT,STUD

€ 9.00

4

1124145110H17
ref: 4

GASKET,CYLINDER (NAS)

€ 12.50

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00

7

0421113189
ref: 7

PIN

€ 2.50
