WIRING HARNESS
GS750L 1979 (N) USA (E03)

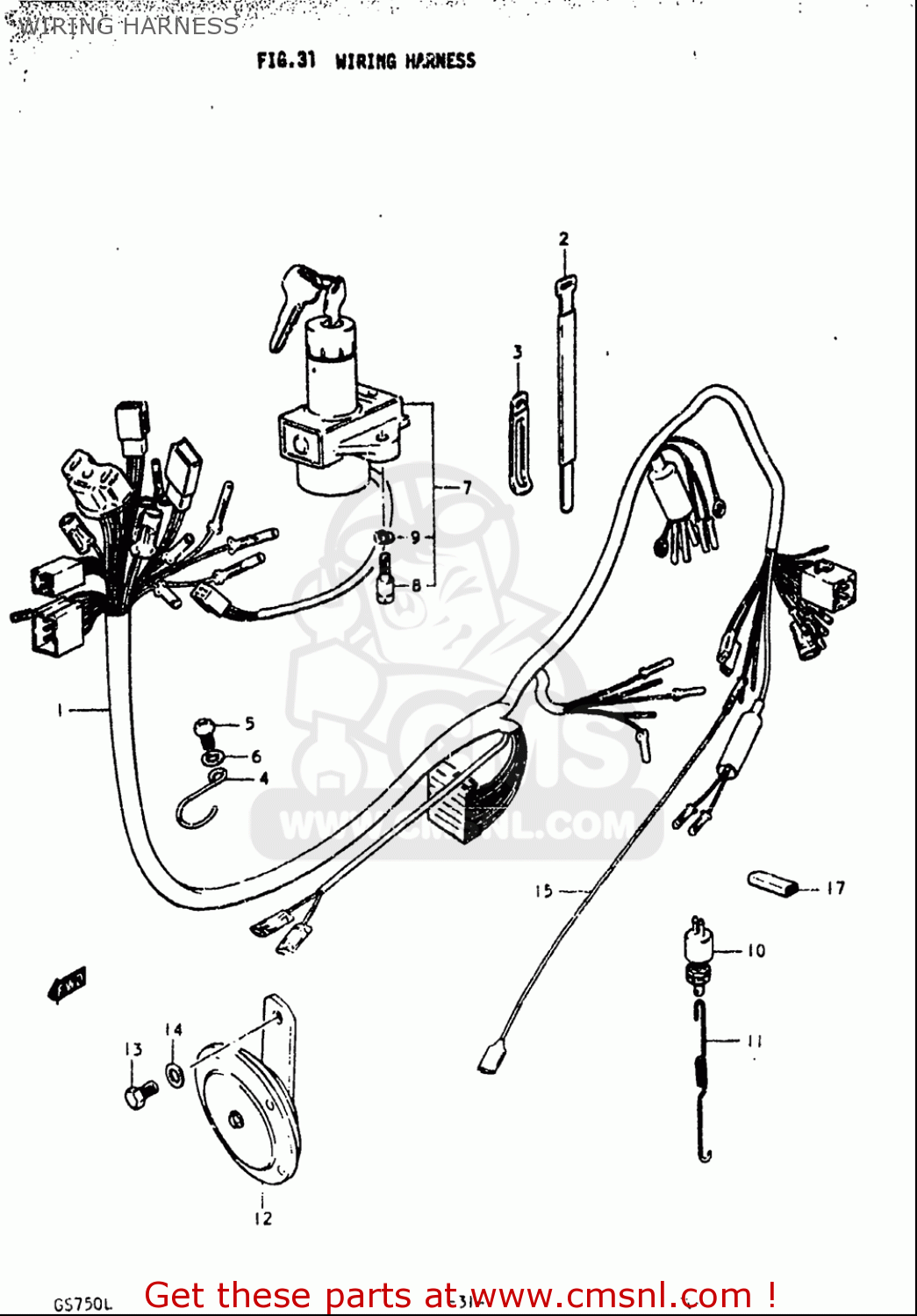

Wiring harness diagram GS750L 1979 (N) USA (E03)
WIRING HARNESS GS750L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0940718301
ref: 2
CLAMP
€ 6.00
3
0940406434
ref: 3
CLAMP(L:80 T:1.0)
€ 3.00
4
3661944002
ref: 4
CLIP,WIRING HARNESS
€ 2.50
5
0211206127
ref: 5
SCREW
€ 2.00
6
083220106A
ref: 6
WASHER
€ 2.00
7
3710045301
ref: 7
SWITCH ASSY,IGNITION
€ 127.50
8
071300616A
ref: 8
BOLT
€ 3.00
9
0832101067
ref: 9
WASHER,LOCK
€ 2.50
10
3761053011
ref: 10
SWITCH ASSY,BRAKE LAMP
€ 34.50
11
0944306018
ref: 11
SPRING
€ 4.50
12
3850064130
ref: 12
HORN ASSY
€ 77.00
13
0150008127
ref: 13
BOLT
€ 2.50
14
0832201087
ref: 14
WASHER
€ 2.00
15
3685345001
ref: 15
WIRE,OIL PRESSURE SWITCH LEAD
€ 9.50
16
3661138000
ref: 16
PROTECTOR,WIRING HARNESS
€ 2.50
