OIL PUMP

GS750L 1979 (N) USA (E03)

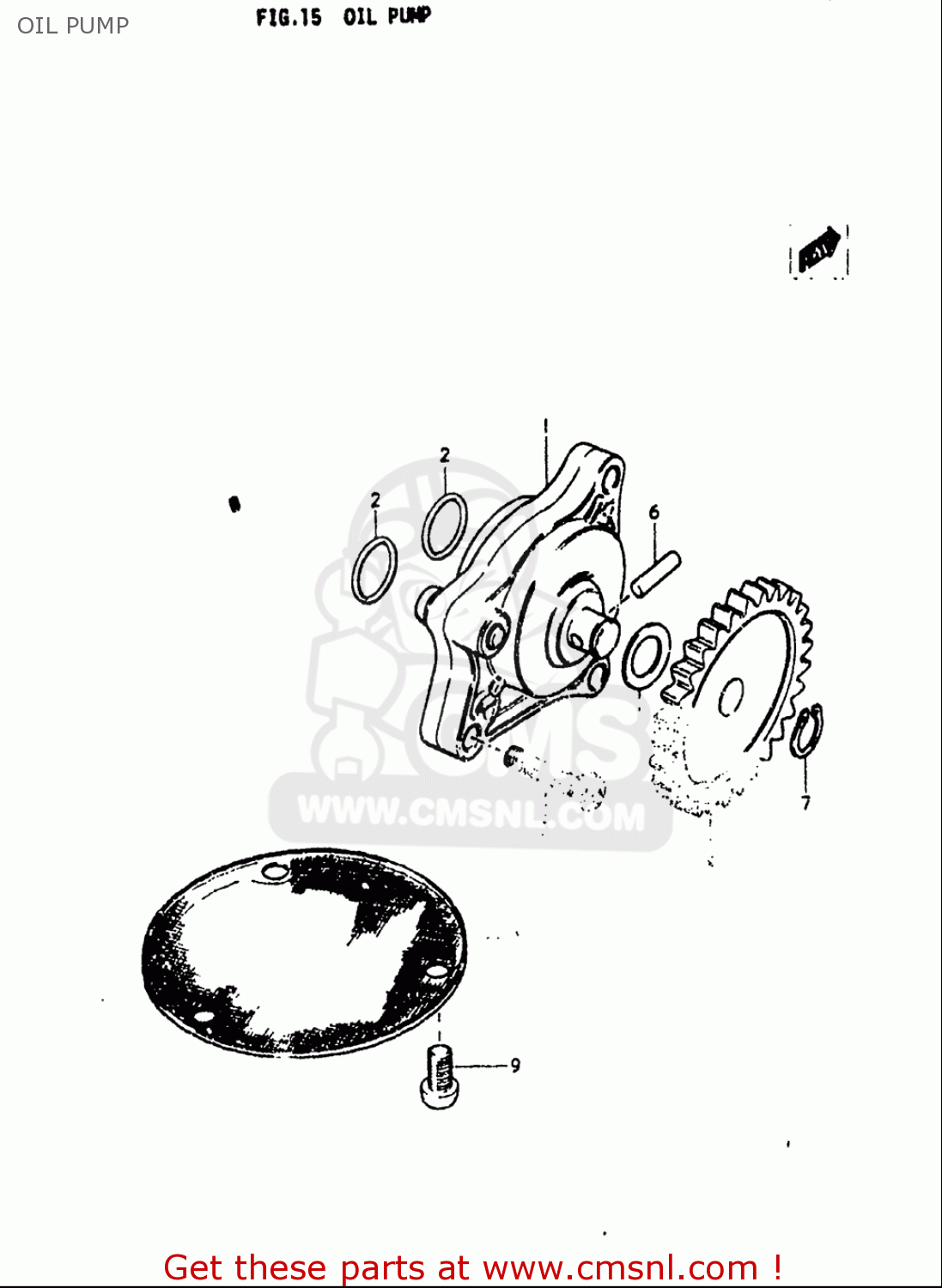

Oil pump diagram GS750L 1979 (N) USA (E03)

OIL PUMP GS750L 1979 (N) USA (E03)

OIL PUMP GS750L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1640045020
ref: 1

PUMP ASSEMBLY,ENGINE OIL

€ 185.00

2

0928013004
ref: 2

O RING(D:1.9,ID:13)

€ 2.50

3

0211206257
ref: 3

SCREW

€ 2.00

4

1633145000
ref: 4

GEAR,ENG OIL PUMP DRIVEN

€ 135.50

5

0822110185
ref: 5

SHIM

€ 2.00

6

0926104009
ref: 6

PIN(4X15.8)

€ 1.50

7

083313110A
ref: 7

CIRCLIP

€ 2.00

8

1652045010
ref: 8

STRAINER,ENGINE OIL

€ 12.00

9

0211206127
ref: 9

SCREW

€ 2.00
