HANDLEBAR - FRONT FENDER
GS750L 1979 (N) USA (E03)

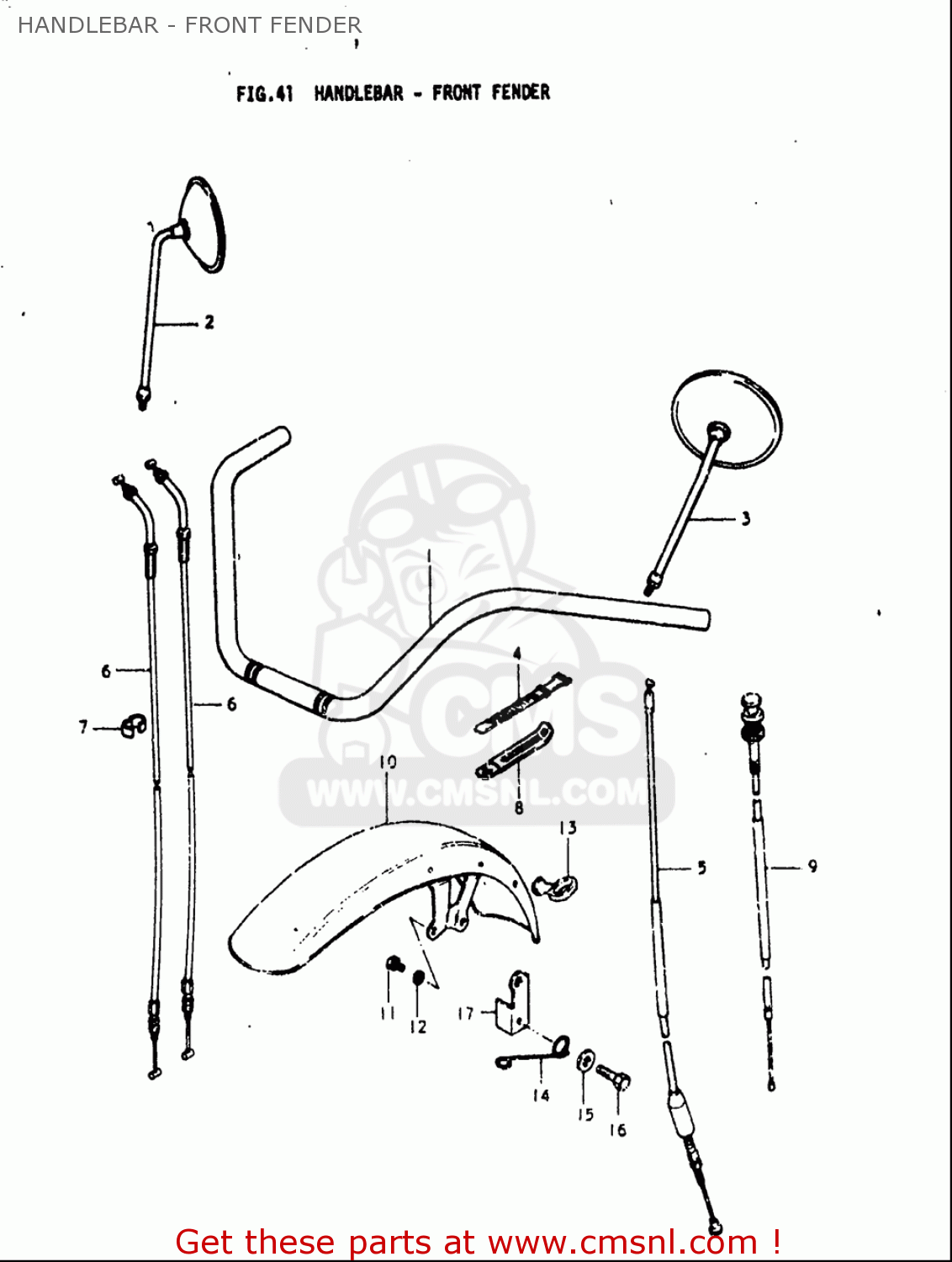

Handlebar - front fender diagram GS750L 1979 (N) USA (E03)
HANDLEBAR - FRONT FENDER GS750L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611145200
ref: 1
HANDLEBAR
€ 96.00
2
5650044201
ref: 2
MIRROR ASSY,RR VIEW,R
€ 72.00
3
5660044201
ref: 3
MIRROR ASSY,RR VIEW,L
€ 72.00
4
0940712402
ref: 4
CLAMP(L:120)
€ 3.00
5
5820045200
ref: 5
CABLE ASSY,CLUTCH
€ 31.50
6
5830045X03
ref: 6
CABLE ASSEMBLY,THROTTLE
€ 26.00
7
0940800002
ref: 7
CLIP
€ 2.00
8
0940406432
ref: 8
CLAMP(L:65)
€ 2.50
9
5840045100
ref: 9
CABLE ASSY,STARTER
€ 25.00
10
5311045311
ref: 10
FENDER,FR
€ 353.50
11
0150008163
ref: 11
BOLT
€ 2.00
12
0832101087
ref: 12
WASHER,LOCK
€ 2.00
13
5862121203A
ref: 13
GUIDE,CABLE
€ 7.50
14
3493837000
ref: 14
GUIDE,SPEEDOMETER CABLE
€ 14.50
15
083220106A
ref: 15
WASHER
€ 2.00
16
0150006127
ref: 16
BOLT
€ 2.00
