RH HANDLE SWITCH

GS750L 1979 (N) USA (E03)

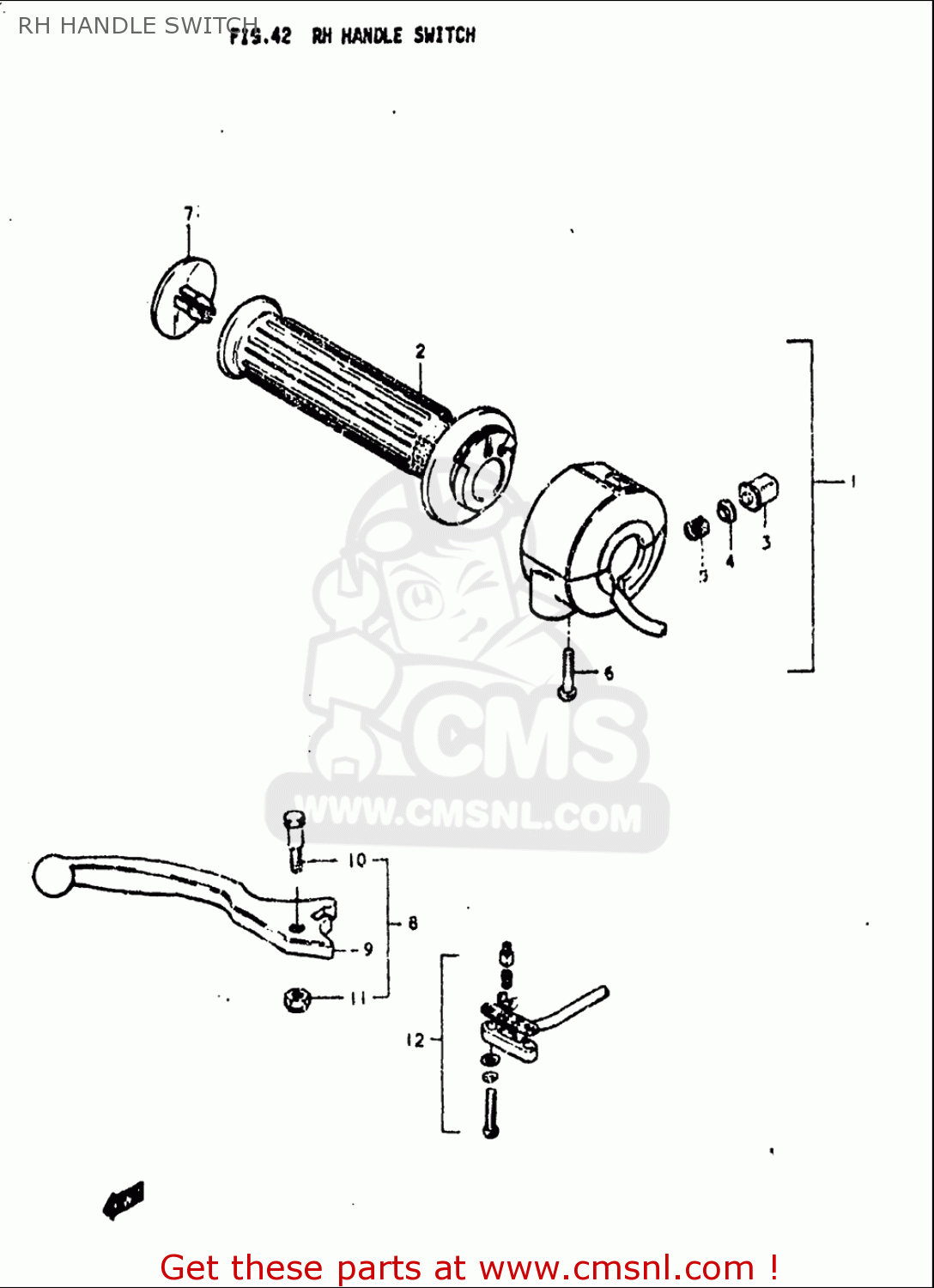

Rh handle switch diagram GS750L 1979 (N) USA (E03)

RH HANDLE SWITCH GS750L 1979 (N) USA (E03)

RH HANDLE SWITCH GS750L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5710045040
ref: 1

CASE ASSY,THROTTLE

€ 83.50

2

5711049510
ref: 2

GRIP,THROTTLE

€ 33.00

3

5737145000
ref: 3

BUTTON,HORN

€ 3.00

4

5737245000
ref: 4

CONTACT

€ 3.00

5

5738245000
ref: 5

SPRING

€ 2.50

6

0211205257
ref: 6

SCREW

€ 2.00

7

5721549100
ref: 7

CAP,GRIP END

€ 3.50

8

5742049101
ref: 8

LEVER,BRAKE

€ 36.50

9

5742049101
ref: 9

LEVER,BRAKE

€ 36.50

10

5743118621
ref: 10

BOLT

€ 8.00

11

0831921068
ref: 11

NUT 6MM

€ 2.00

12

5746045500
ref: 12

SWITCH ASSY,STOP

€ 40.00
