CRANK BALANCER

GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

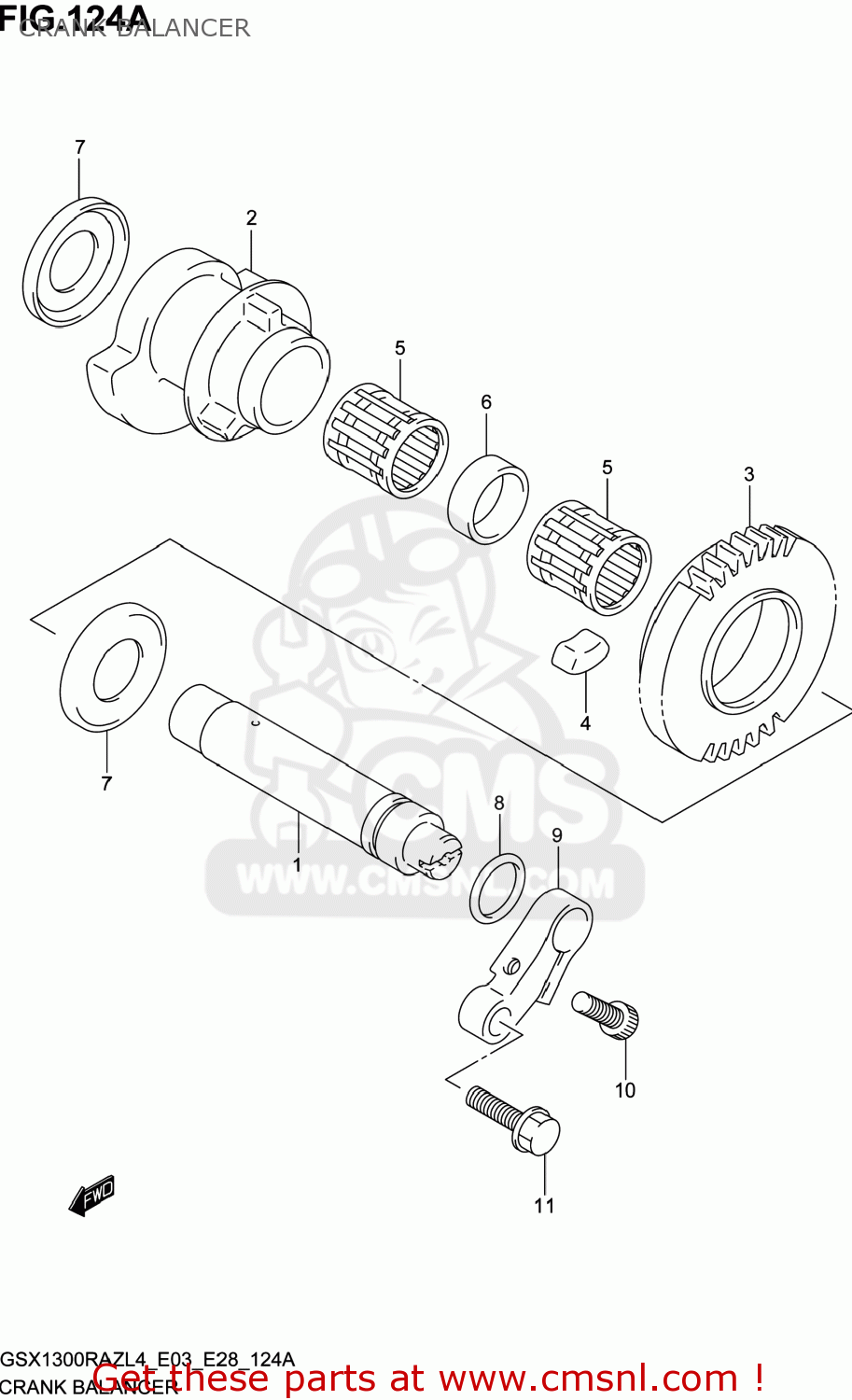

Crank balancer diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1265024F010F0
ref: 1

SHAFT,CRANK BALANCER

€ 156.00

1265424F000F0
ref: 2

BALANCER,CRANK

€ 148.00

1266624F00
ref: 3

GEAR,CRANK BALANCER

€ 158.50

1268624F00
ref: 4

DAMPER,BALANCER GEAR

€ 6.50

0926319015
ref: 5

BEARING(19X26X25.2)

€ 37.00

0918019014
ref: 6

SPACER(19X26X8.6)

€ 9.50

0916921001
ref: 7

WASHER

€ 8.00

0928017007
ref: 8

O RING(D:1.9,ID:16.8)

€ 3.50

1268126D01
ref: 9

ARM,BALANCER SHAFT

€ 32.00

071300620A
ref: 10

BOLT

€ 3.00

0910306286
ref: 11

BOLT(6X20)

€ 2.50
