RADIATOR
GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

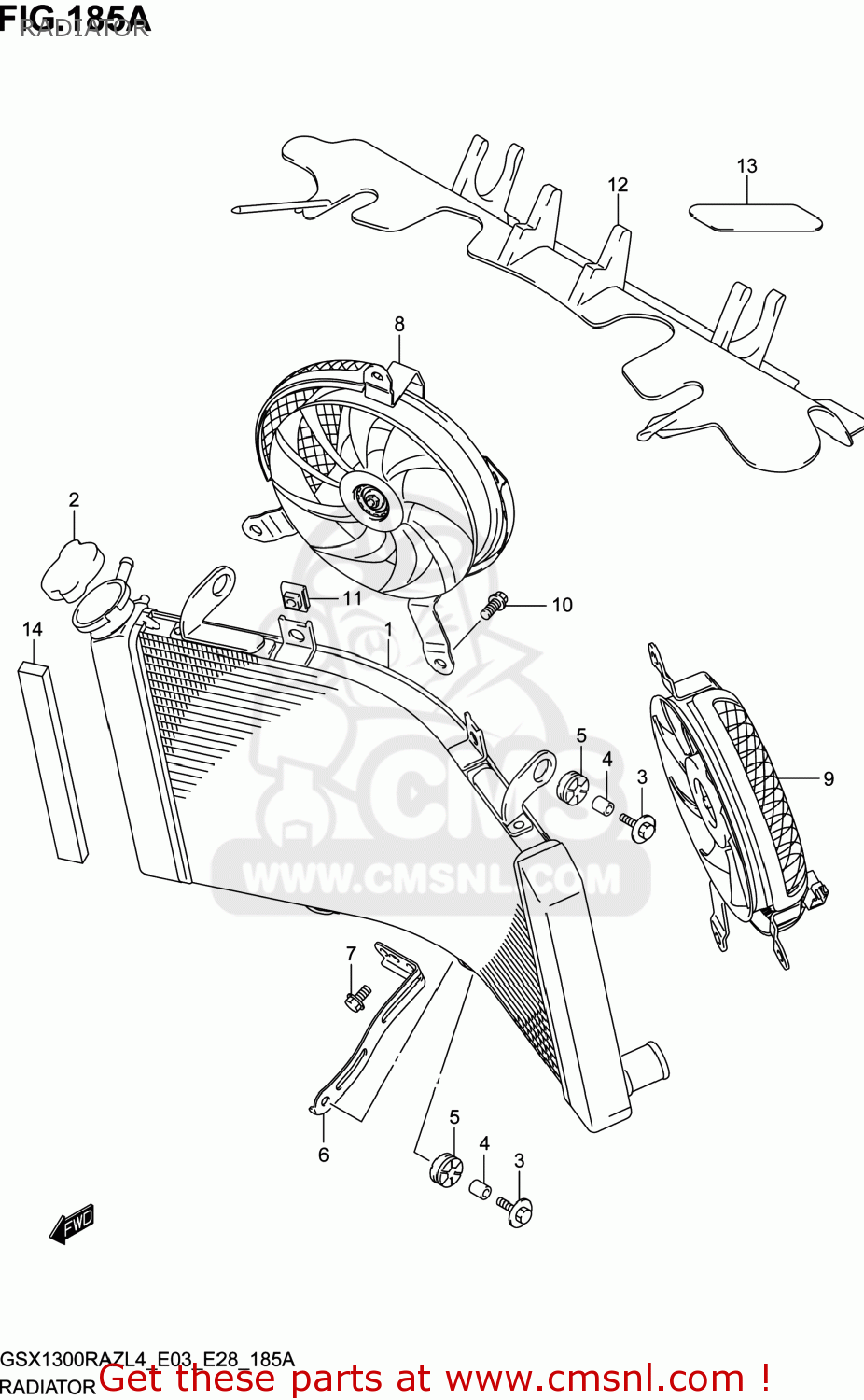

Radiator diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)
RADIATOR GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771015H00
ref: 1
RADIATOR ASSY,
€ 833.00
2
1773008J00
ref: 2
CAP,RADIATOR
€ 40.00
3
0911806097
ref: 3
BOLT(6X25)
€ 2.50
4
0918006290
ref: 4
SPACER(6.5X10X12)
€ 2.50
5
0932010051
ref: 5
CUSHION
€ 3.50
6
1775024F00
ref: 6
BRACKET,RADIATOR
€ 8.00
7
015500612A
ref: 7
BOLT
€ 2.50
8
1781015H00
ref: 8
FAN ASSY,RADIATOR,R
€ 462.50
9
1782015H00
ref: 9
FAN ASSY,RADIATOR,L
€ 462.50
10
1771108J00
ref: 10
BOLT,FAN ASSY
€ 3.50
11
1771240F00
ref: 11
NUT,FAN ASSY
€ 3.50
12
1777115H00
ref: 12
SHIELD,RADIATOR HEAT
€ 19.50
13
6313110F00
ref: 13
TAPE,RR FENDER
€ 6.00
14
9447617H00
ref: 14
CUSHION,UNDER COWLING
€ 4.00
