THROTTLE BODY

GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

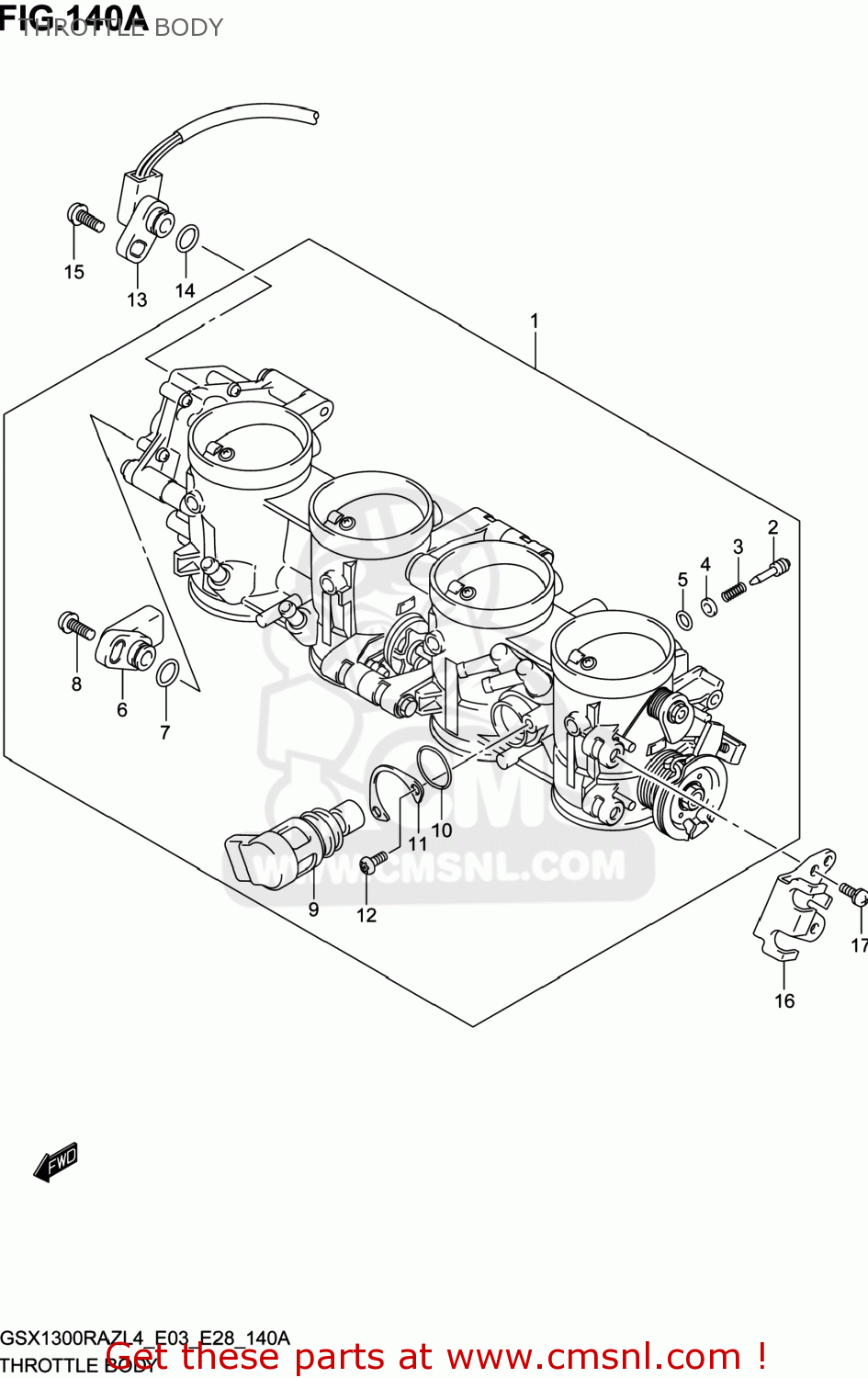

Throttle body diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

THROTTLE BODY GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

THROTTLE BODY GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1340615H20
ref: 1

BODY ASSY,THROTTLE

€ 1,782.50

2

1326918G00
ref: 2

SCREW,AIR ADJUST

€ 7.50

3

1327143E00
ref: 3

SPRING

€ 4.00

4

1329126E00
ref: 4

WASHER

€ 3.00

5

1329526E00
ref: 5

O RING

€ 4.50

6

1358018G00
ref: 6

SENSOR ASSY,THROTTLE MAIN

€ 188.00

7

1357540F00
ref: 7

O RING

€ 3.50

8

1360540F00
ref: 8

SCREW

€ 3.00

9

1811715H11
ref: 9

VALVE ASSY,ISC

€ 233.00

10

1811905H00
ref: 10

O RING

€ 2.50

11

1342815H00
ref: 11

PLATE,ISC VALVE

€ 19.50

12

1360515H00
ref: 12

SCREW

€ 4.50

13

1358040F31
ref: 13

SENSOR ASSY,THROTTLE NO.1

€ 188.00

14

1357540F00
ref: 14

O RING

€ 3.50

15

1360540F00
ref: 15

SCREW

€ 3.00

16

1356515H00
ref: 16

PLATE,STAY

€ 34.00

17

1360121H00
ref: 17

SCREW

€ 2.50
