STARTING MOTOR

GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

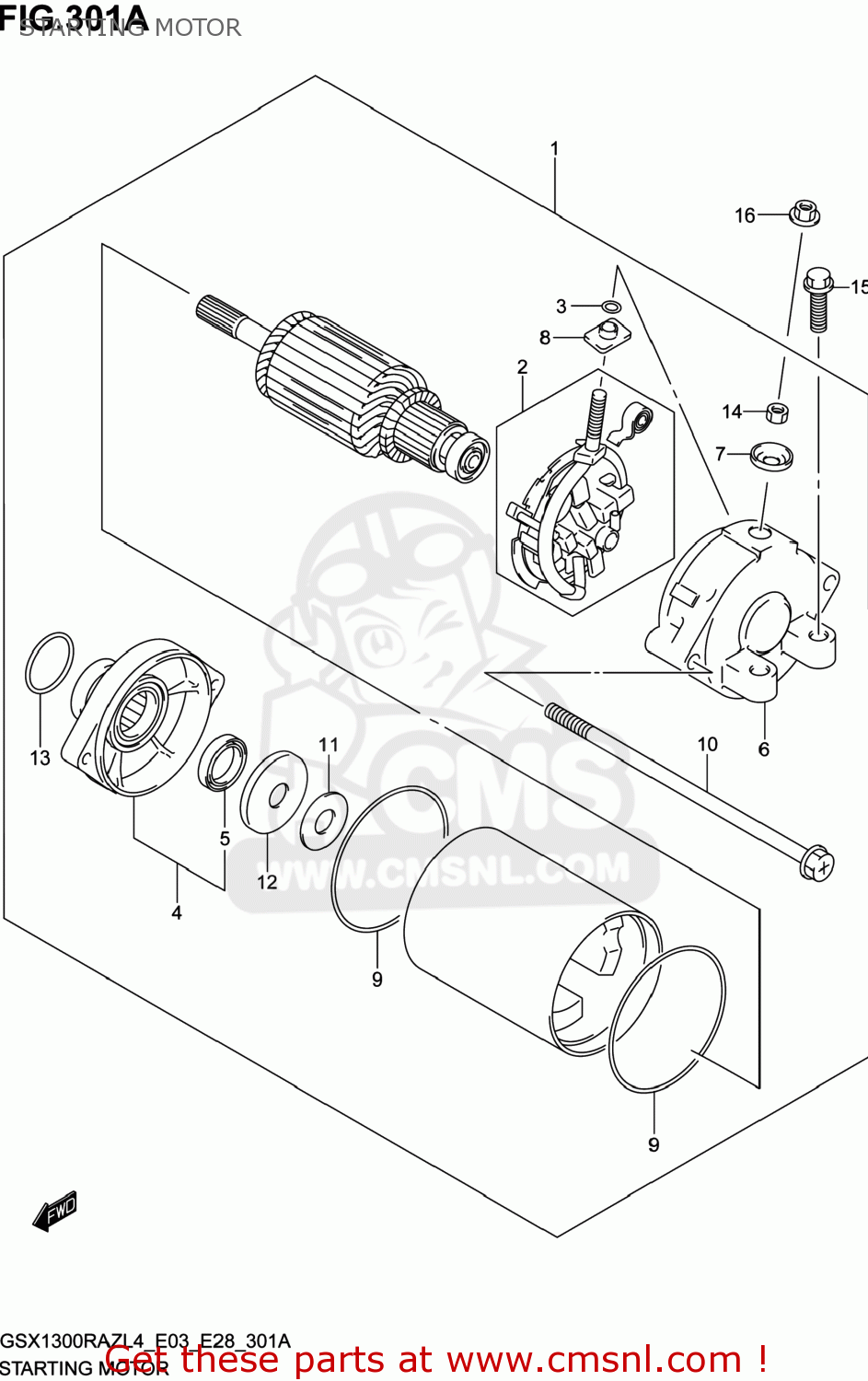

Starting motor diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

STARTING MOTOR GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

STARTING MOTOR GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110015H20
ref: 1

MOTOR ASSY,STARTING

€ 473.50

2

3113245C00
ref: 2

HOLDER SET,BRUSH

€ 46.00

3

3114338300
ref: 3

O RING

€ 3.50

4

3115015H20
ref: 4

HOUSING ASSY,STARTER

€ 63.00

5

3115349210
ref: 5

SEAL,OIL

€ 15.00

6

3117124F00
ref: 6

FRAME,STARTER END

€ 78.50

7

3117238300
ref: 7

BUSHING

€ 4.00

8

3117388C00
ref: 8

BUSHING

€ 6.00

9

3126444110
ref: 9

O RING

€ 8.00

10

3128124F00
ref: 10

BOLT

€ 7.00

11

3136138300
ref: 11

SHIM

€ 1.50

12

3136143400
ref: 12
31170-43400

WASHER

€ 3.50

13

0928024003
ref: 13

O RING(D:3,ID:24.5)

€ 2.00

14

0831000067
ref: 14

NUT

€ 2.50

15

0910306212
ref: 15

BOLT(6X25)

€ 2.50

16

083613506A
ref: 16

NUT

€ 2.00
