THROTTLE BODY HOSE/JOINT (GSX1300RAZL4 E28)

GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

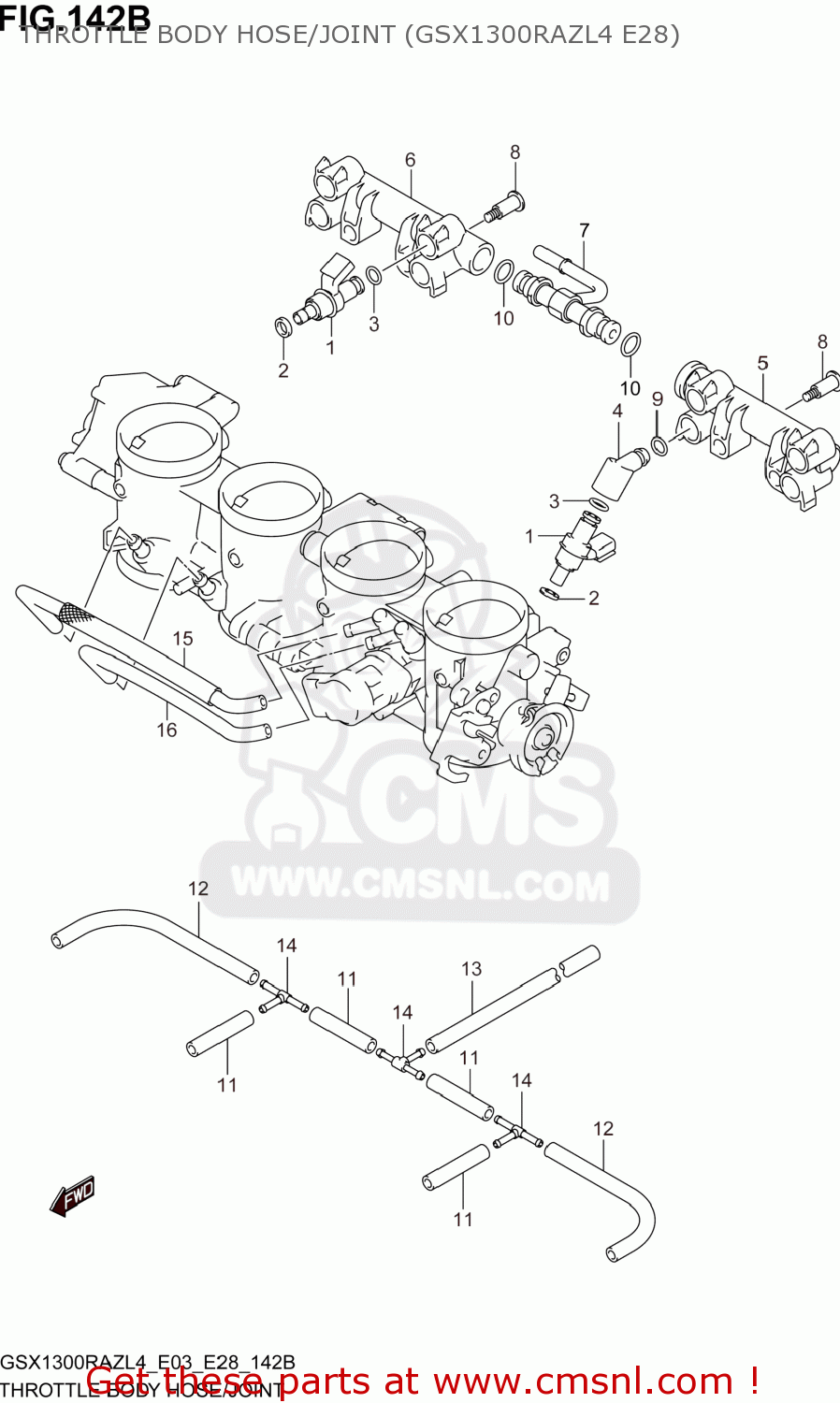

Throttle body hose/joint (gsx1300razl4 e28) diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1571021H10
ref: 1

INJECTOR ASSY

€ 197.50

1572221H00
ref: 2

RING,SEAL

€ 9.50

1572121H00
ref: 3

O RING

€ 7.00

1347321H00
ref: 4

PIPE,FUEL

€ 13.00

1347421H00
ref: 5

PIPE,FUEL

€ 71.50

1347421H10
ref: 6

PIPE,FUEL

€ 71.50

1347315H10
ref: 7

JOINT

€ 102.00

1360135F00
ref: 8

SCREW

€ 7.00

1572124F00
ref: 9

O RING

€ 7.50

1572110G00
ref: 10

O RING

€ 7.00

1369724F00
ref: 11

HOSE,RUBBER(L:35)

€ 2.50

1369724F20
ref: 12

HOSE,RUBBER(L:100)

€ 3.50

1369735F00
ref: 13

HOSE,RUBBER(3X7X170)

€ 5.50

1347124F30
ref: 14

JOINT

€ 11.50

1368021H10
ref: 15

TUBE

€ 15.00

1369821H00
ref: 16

TUBE

€ 7.00
