FRONT CALIPER

GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

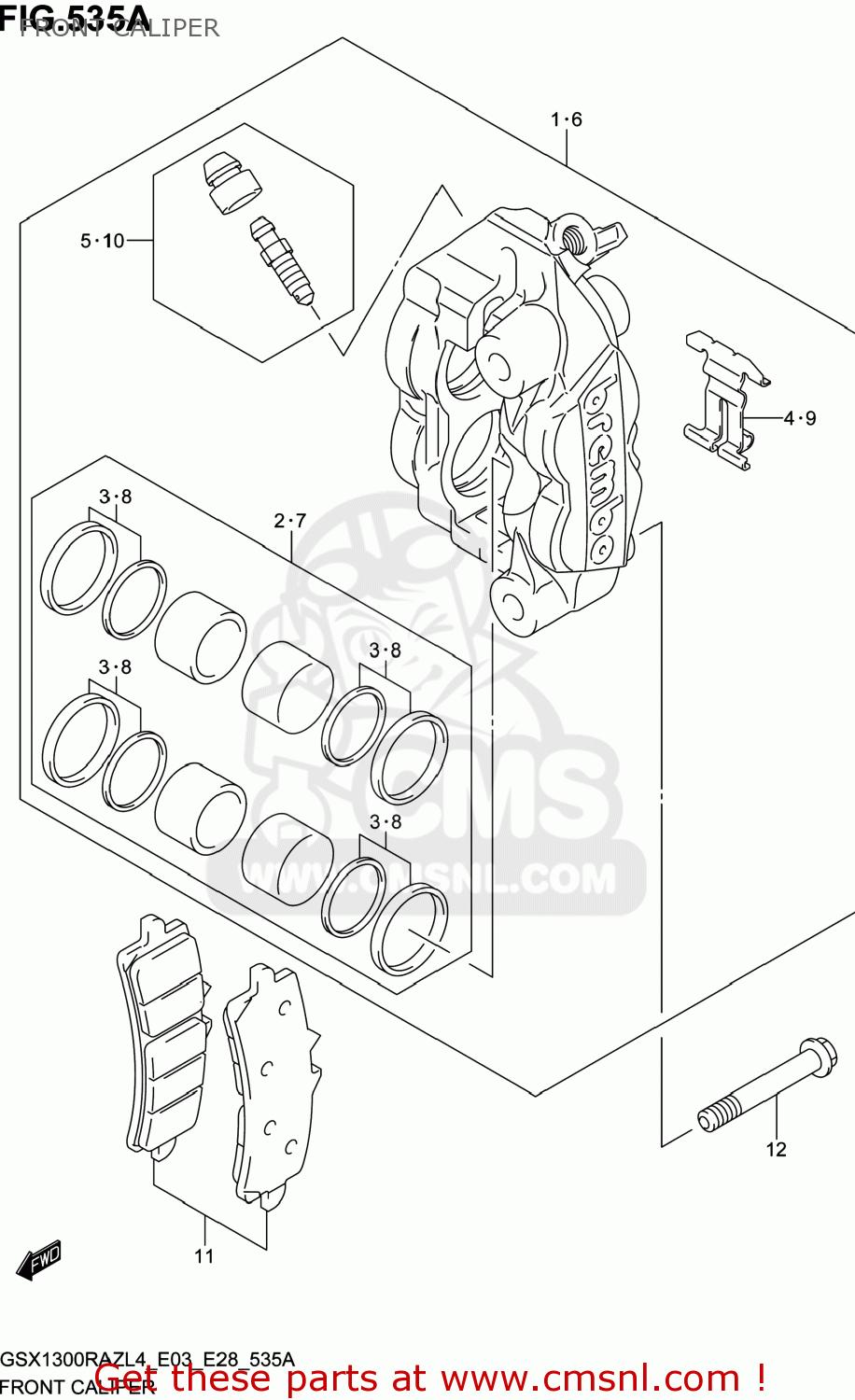

Front caliper diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

5910014J30999
ref: 1

CALIPER ASSY,FR,R

€ 427.00

5910014810
ref: 2

PISTON SET

€ 88.50

5910014820
ref: 3

SEAL SET,PISTON

€ 43.00

5915114J00
ref: 4

SPRING

€ 19.00

5910014840
ref: 5

BLEEDER SET

€ 19.50

5930014J30999
ref: 6

CALIPER ASSY,FR,L

€ 427.00

5910014810
ref: 7

PISTON SET

€ 88.50

5910014820
ref: 8

SEAL SET,PISTON

€ 43.00

5915114J00
ref: 9

SPRING

€ 19.00

5910014840
ref: 10

BLEEDER SET

€ 19.50

5910014860
ref: 11

PAD SET(T:4.0) (NAS)

€ 62.00

0910310450
ref: 12

BOLT(10X70)

€ 4.00
