FUEL PUMP
GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

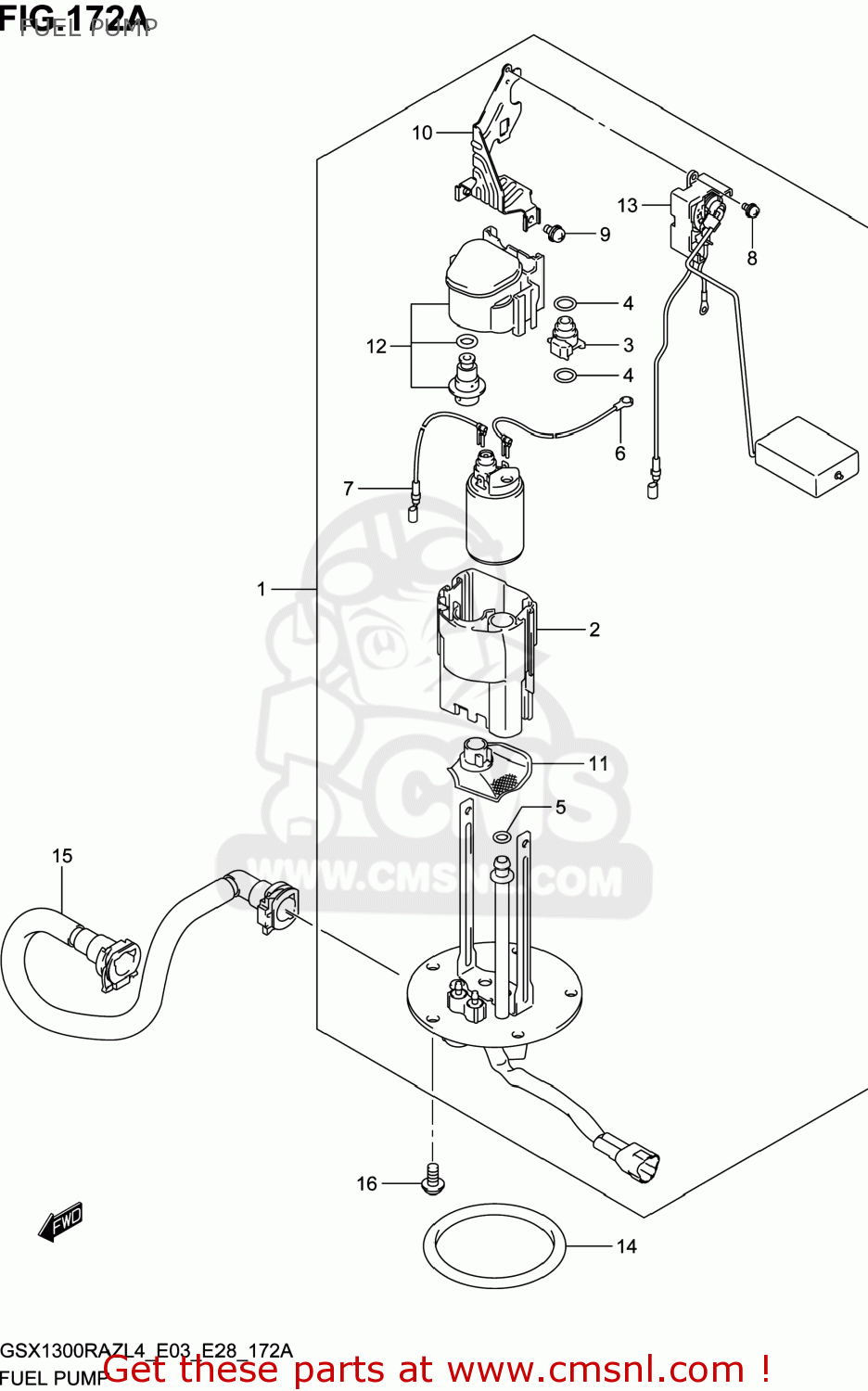

Fuel pump diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)
FUEL PUMP GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510015H10
ref: 1
PUMP ASSY,FUEL
€ 568.50
2
1511127G00
ref: 2
CUP
€ 25.00
3
1511205H00
ref: 3
JOINT
€ 17.00
4
1511305H00
ref: 4
O RING
€ 17.00
5
1511335F00
ref: 5
O RING
€ 7.50
6
1511414J00
ref: 6
WIRE,EARTH
€ 16.00
7
1511508J00
ref: 7
WIRE,LEAD
€ 17.00
8
1511610F00
ref: 8
SCREW
€ 3.50
9
1511610F00
ref: 9
SCREW
€ 3.50
10
1518115H10
ref: 10
BRACKET,FUEL GAUGE
€ 29.00
11
1542005H00
ref: 11
STRAINER
€ 20.50
12
1561014J00
ref: 12
REGULATOR,FUEL
€ 123.00
13
3481015H10
ref: 13
GAUGE ASSY,FUEL LEVEL
€ 144.00
14
1520135F00
ref: 14
O RING,FUEL PUMP
€ 26.00
15
1581015H10
ref: 15
HOSE,FUEL
€ 48.00
16
071200612A
ref: 16
BOLT
€ 3.50
