TURNSIGNAL LAMP

GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

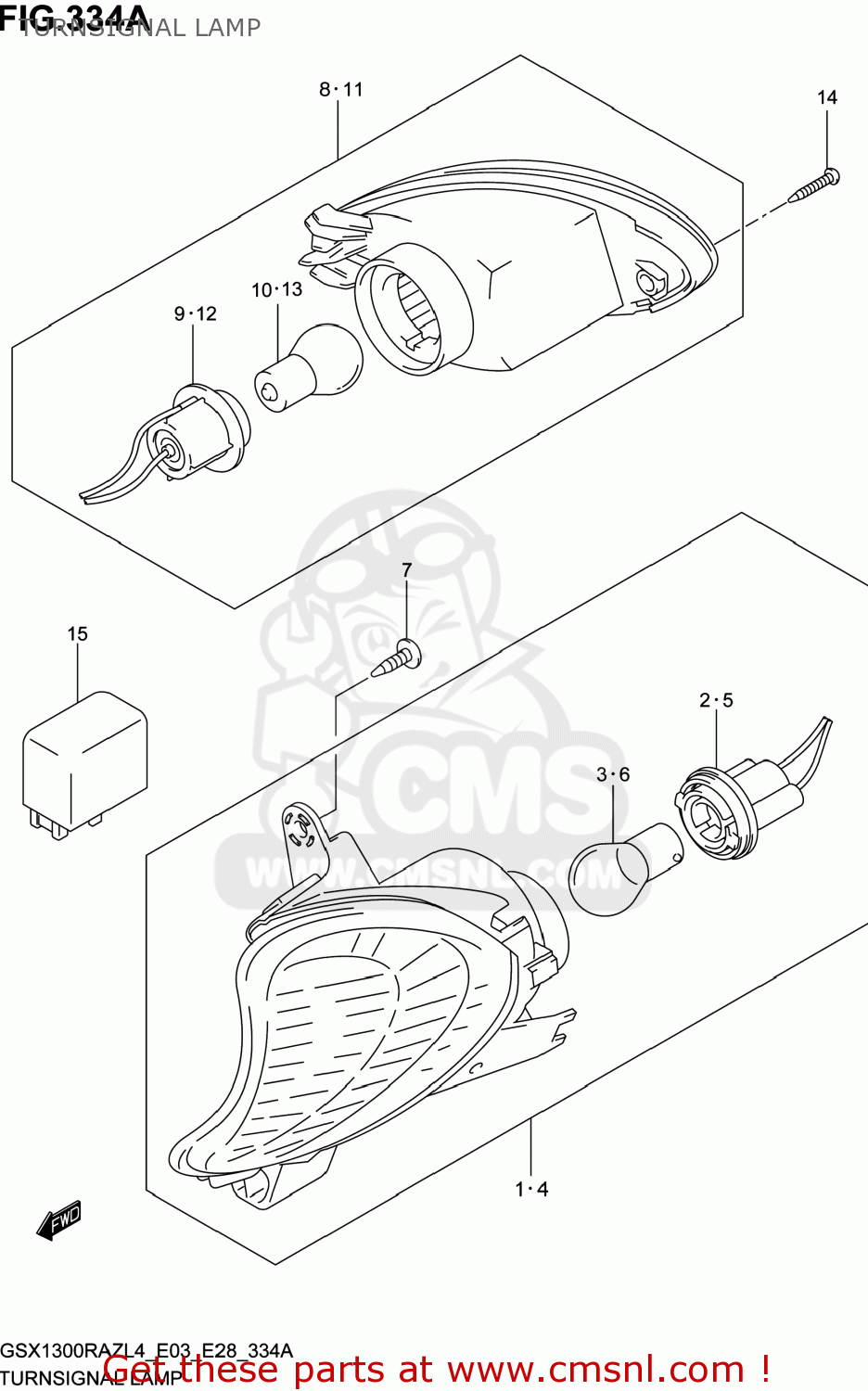

Turnsignal lamp diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

TURNSIGNAL LAMP GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

TURNSIGNAL LAMP GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3560115H01
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 64.00

2

3561815H00
ref: 2

SOCKET & CORD,R

€ 21.00

3

0947112186
ref: 3

BULB(12V21W,AMBER)

€ 2.50

4

3560215H01
ref: 4

LAMP ASSY,FR TURN SIGNAL,L

€ 64.00

5

3563815H00
ref: 5

SOCKET & CORD,L

€ 21.00

6

0947112186
ref: 6

BULB(12V21W,AMBER)

€ 2.50

7

035410516B
ref: 7

SCREW

€ 2.00

8

3560315H01
ref: 8

LAMP ASSY,RR TURNSIGNAL,R

€ 52.00

9

3565815H00
ref: 9

SOCKET & CORD,R

€ 21.00

10

0947112186
ref: 10

BULB(12V21W,AMBER)

€ 2.50

11

3560415H01
ref: 11

LAMP ASSY,RR TURNSIGNAL,L

€ 52.00

12

3567815H00
ref: 12

SOCKET & CORD,L

€ 21.00

13

0947112186
ref: 13

BULB(12V21W,AMBER)

€ 2.50

14

0913204032
ref: 14

SCREW(4X20)

€ 2.00

15

3861003F00
ref: 15

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
