REAR FENDER
GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

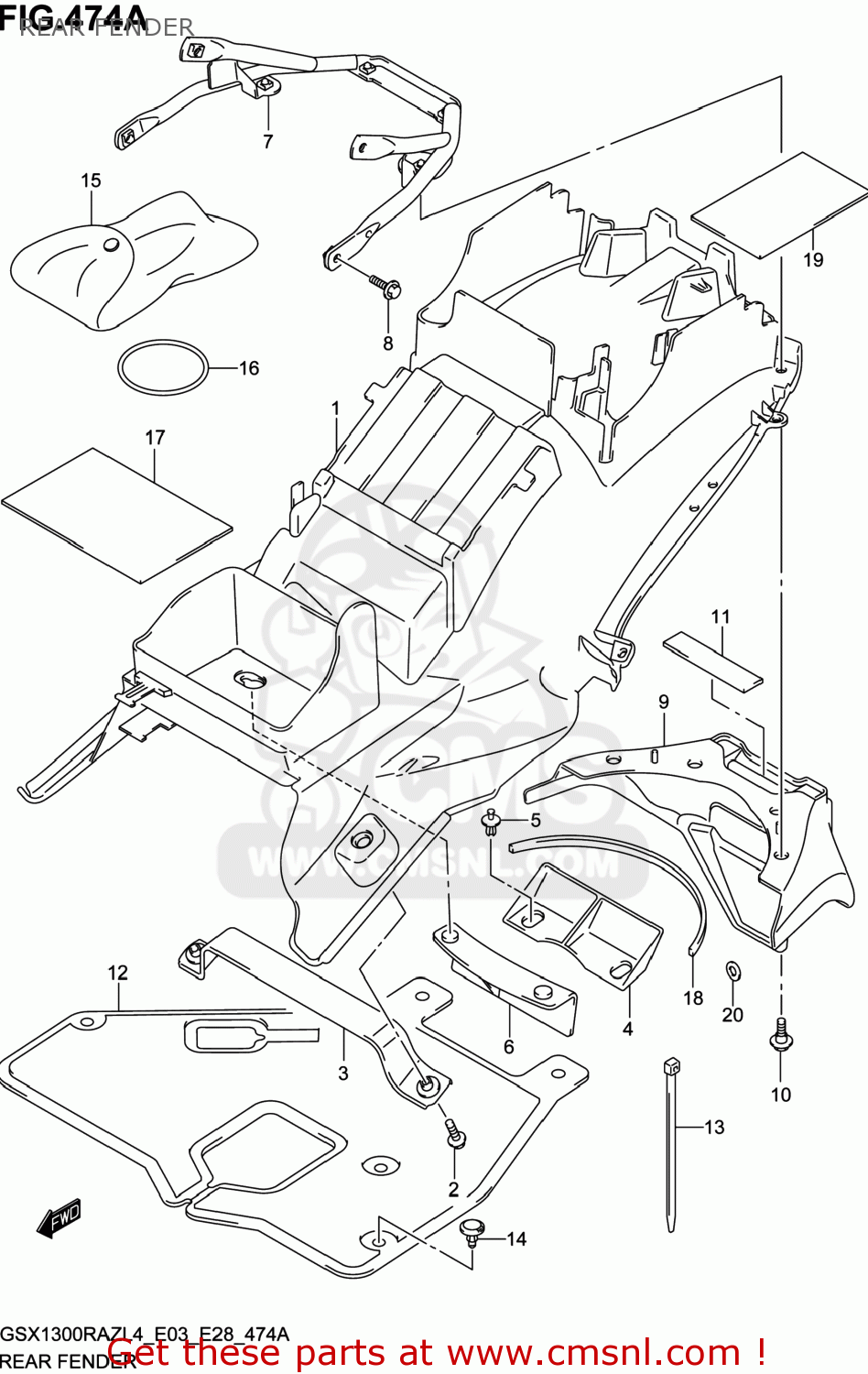

Rear fender diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)
REAR FENDER GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311115H00291
ref: 1
FENDER,RR FR
€ 98.00
2
015500616A
ref: 2
BOLT
€ 2.50
3
6313015H00
ref: 3
BRACKET,RR FENDER FR
€ 22.50
4
6341124F00
ref: 4
MUDGUARD,RR FENDER
€ 6.00
5
0940907333
ref: 5
CLIP
€ 2.50
6
6342124F00
ref: 6
MUDGUARD,RR FENDER FR UPR
€ 7.00
7
6312015H00
ref: 7
BRACKET,RR FENDER
€ 245.50
8
015500616A
ref: 8
BOLT
€ 2.50
9
6311215H00291
ref: 9
FENDER,RR RR
€ 33.50
10
0911106099
ref: 10
BOLT(6X16)
€ 4.00
11
3365249000
ref: 11
PROTECTOR(20X90)X4
€ 2.00
12
4785115H00
ref: 12
SHIELD,INNER
€ 41.50
13
0940710403
ref: 13
CLAMP(L:95)
€ 2.50
14
9447935F00
ref: 14
CLIP
€ 3.50
15
0980021056
ref: 15
TOOL ASSY
€ 31.50
16
0928057003
ref: 16
O RING(D:3.5,ID:56.5)
€ 5.50
17
6311315H00
ref: 17
CUSHION,RR FENDER FR
€ 8.00
18
6319216GA0
ref: 18
CUSHION,RR FENDER RR
€ 2.50
19
6311415H00
ref: 19
CUSHION,TOOL BAG
€ 7.00
20
083220106B
ref: 20
WASHER
€ 2.00
